Operation Manual
Big Series Breeding Machine
50039, 50041, 51074–51077, 51271–51274

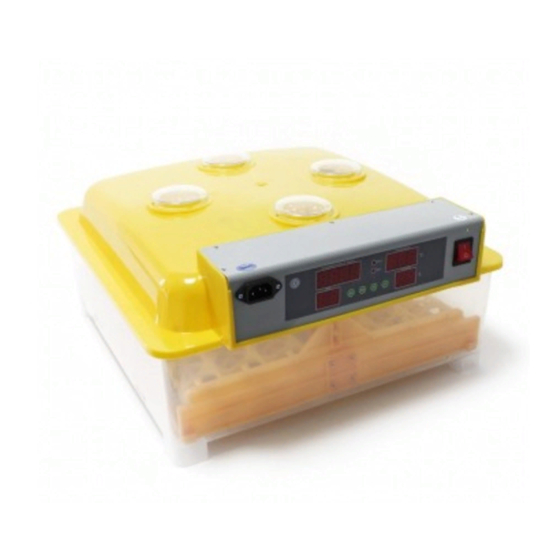

Similar to image, may vary depending on model
Read and follow the operating instructions and safety information before use.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ slightly.
Advertisement
Table of Contents
Related Manuals for WilTec 50039
Summary of Contents for WilTec 50039
- Page 1 Operation Manual Big Series Breeding Machine 50039, 50041, 51074–51077, 51271–51274 Similar to image, may vary depending on model Read and follow the operating instructions and safety information before use. Technical changes reserved! Due to further developments, illustrations, functioning steps and technical data can differ slightly.
- Page 2 All rights reserved. The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this operating manual, nor in the diagrams and figures shown.
-
Page 3: Safety Notes
Accuracy of the humidity sensor ±3% RH Functions Adjustable temperature control Hygrometer to determine the humidity Humidity display Temperature display Automatic turning mechanism Turning-/ breeding display © by WilTec Wildanger Technik GmbH Item 50039, 50041, 51074–51077, 51271–51274 Page 3 http://www.WilTec.de http://www.aoyue.eu 2020-1 http://www.teichtip.de... -
Page 4: Surrounding Conditions
You need to make sure that the disinfectant is suitable for the incubator material. Otherwise the mater - ial can be attacked and the hatching process endangered. © by WilTec Wildanger Technik GmbH Item 50039, 50041, 51074–51077, 51271–51274 Page 4 http://www.WilTec.de... - Page 5 50–55% air humidity From day 19 on: 70–75% air humidity Quail eggs: Day 1–14: 55% air humidity From day 15 on: 75% air humidity © by WilTec Wildanger Technik GmbH Item 50039, 50041, 51074–51077, 51271–51274 Page 5 http://www.WilTec.de http://www.aoyue.eu 2020-1 http://www.teichtip.de...
- Page 6 Congratulations, your chicks have hatched! Have a little patience, as the freshly hatched chicks should stay in the incubator for approx. 24 hours longer, to be able to recover and dry off. © by WilTec Wildanger Technik GmbH Item 50039, 50041, 51074–51077, 51271–51274 Page 6 http://www.WilTec.de...
-
Page 7: Operation
(please see section “Display, function buttons and basic settings”). © by WilTec Wildanger Technik GmbH Item 50039, 50041, 51074–51077, 51271–51274 Page 7 http://www.WilTec.de... - Page 8 During the hatching process, the lid should remain closed. Water can be added with a jug to avoid the eggshells from drying out. © by WilTec Wildanger Technik GmbH Item 50039, 50041, 51074–51077, 51271–51274 Page 8 http://www.WilTec.de...
-
Page 9: Function Buttons Description
Display 4 shows the humidity percentage. Function buttons description For the incubators with item no. 50039, 50041, 51077, 51271, 51272, 51273, 51274 These incubators have four buttons that are required for operation. The buttons and their combination possibilities will be further described in the following. Before turning the on switch on, ensure that the plug is undamaged and connected properly with the according place. - Page 10 38°C can be reached when set- ting the temperature to 37.8°C. If you wish to avoid this, heating stop temperature needs © by WilTec Wildanger Technik GmbH Item 50039, 50041, 51074–51077, 51271–51274 Page 10 http://www.WilTec.de http://www.aoyue.eu 2020-1 http://www.teichtip.de...
- Page 11 (“work”) or adjustments are made to the settings (“set”). Display 1 shows the temperature in Celsius. Display 2 shows the humidity percentag. © by WilTec Wildanger Technik GmbH Item 50039, 50041, 51074–51077, 51271–51274 Page 11 http://www.WilTec.de http://www.aoyue.eu 2020-1 http://www.teichtip.de...
- Page 12 38.6°C too high Heating stop 0–99.9°C 37.8°C Please note that the radiator will switch off when reaching the entered value, but will still © by WilTec Wildanger Technik GmbH Item 50039, 50041, 51074–51077, 51271–51274 Page 12 http://www.WilTec.de http://www.aoyue.eu 2020-1 http://www.teichtip.de...
- Page 13 (see “Function buttons description”) and two small lamps which glow when the heater is heating (“work”) or adjustments are being made (“set”). Display 1 shows the temperature in Celsius. Display 2 shows the humidity percentage. © by WilTec Wildanger Technik GmbH Item 50039, 50041, 51074–51077, 51271–51274 Page 13 http://www.WilTec.de http://www.aoyue.eu 2020-1 http://www.teichtip.de...
- Page 14 Standard Note setting Temperature alarm 0–99.9°C 38.6°C too high Heating stop 0–99.9°C 37.8°C Please note that the radiator will switch off when reaching © by WilTec Wildanger Technik GmbH Item 50039, 50041, 51074–51077, 51271–51274 Page 14 http://www.WilTec.de http://www.aoyue.eu 2020-1 http://www.teichtip.de...
- Page 15 “+” and “–”: Holding both down at the same for a longer moment (approx. 8 seconds) will reset the incubator to factory settings; a beep will sound. © by WilTec Wildanger Technik GmbH Item 50039, 50041, 51074–51077, 51271–51274 Page 15 http://www.WilTec.de http://www.aoyue.eu...
- Page 16 (a) Temperature is too high in the incub- (a) See 2 (a) chicks ator (b) Temperature in the incubator is too (b) See 2 (a) © by WilTec Wildanger Technik GmbH Item 50039, 50041, 51074–51077, 51271–51274 Page 16 http://www.WilTec.de http://www.aoyue.eu 2020-1 http://www.teichtip.de...
- Page 17 (c) The cable needs to be connec- time vent (items 50041, 51273, 51274) ted properly (see “Operating: be- fore placing the eggs into the in- cubator”) © by WilTec Wildanger Technik GmbH Item 50039, 50041, 51074–51077, 51271–51274 Page 17 http://www.WilTec.de http://www.aoyue.eu 2020-1 http://www.teichtip.de...
-
Page 18: Disposal Regulations
All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with do- mestic waste.
