3 PCB Layout Design
• The RF trace should be routed on the outer layer without vias, i.e., should not cross layers. The RF trace
should be routed at a 135° angle, or with circular arcs if trace bends are required.
• To curb second harmonics, we recommend adding a stub between the ground and the two capacitors in
parallel in the π-matching network. It is preferable to keep the stub length 15 mil, and determine the stub
width according to the number of PCB layers, so that the characteristic impedance of the stub is 100 Ω ±
10%. In addition, please connect the stub via to the third and fourth layer, and maintain a keep-out area on
other layers. If space on PCB is limited, you may add the stub only to parallel capacitors near the antenna.
The trace highlighted in Figure
• The ground plane on the adjacent layer needs to be complete. Do not route any traces under the RF trace
whenever possible.
• There should be no high-frequency signal traces routed close to the RF trace. The RF antenna should be
placed away from high-frequency components, such as crystals, DDR, high-frequency clocks, etc. In
addition, the USB port, USB-to-serial chip, UART signal lines (including traces, vias, test points, header
pins, etc.) must be as far away from the antenna as possible. The UART signal line should be surrounded
by ground copper and ground vias .
• For designing the RF trace at 50 Ω single-ended impedance, please refer to the PCB stack-up design
shown in Figure 20.
Espressif Systems
16 is the stub.

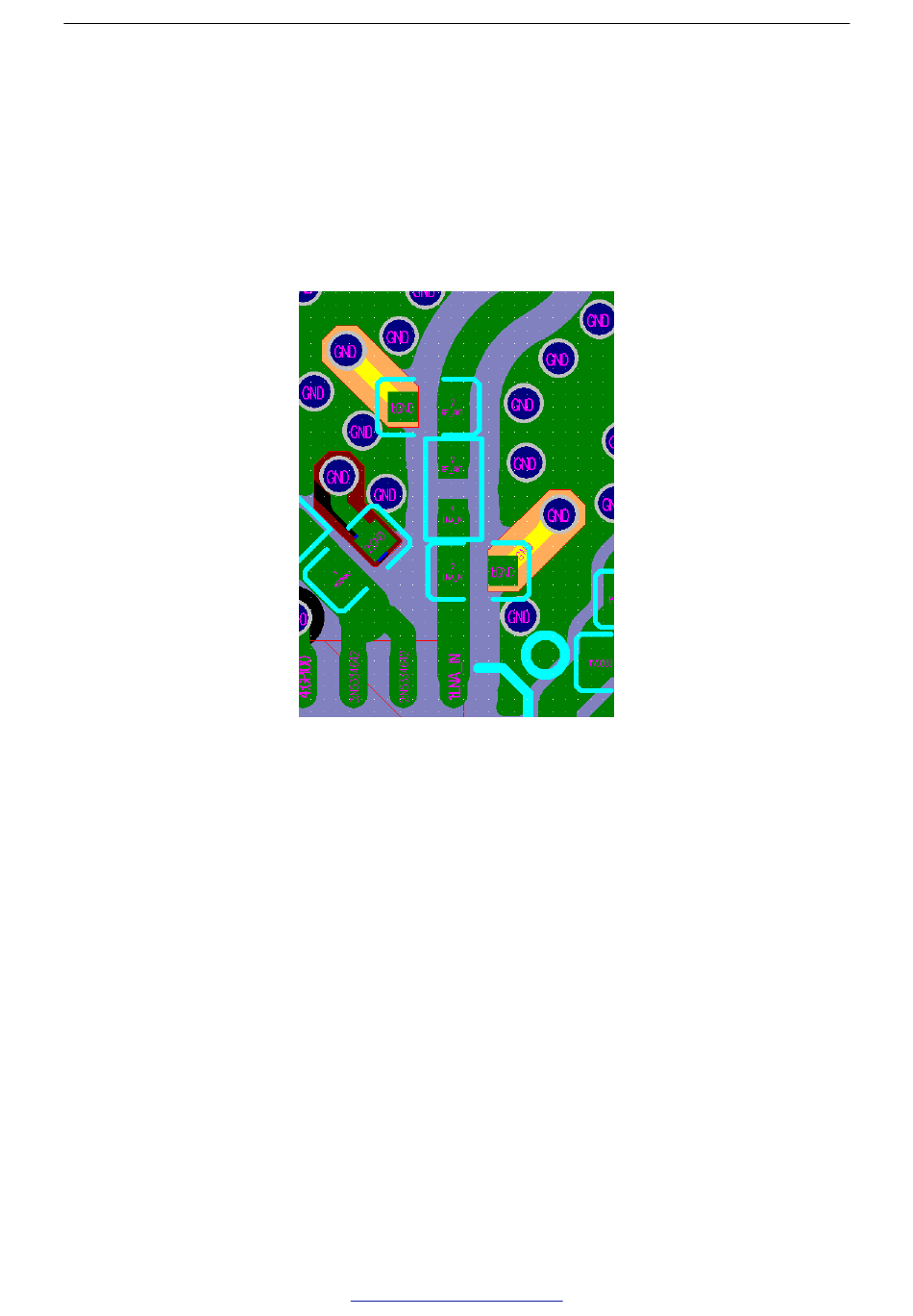

Figure 19: ESP32­C3 RF Stub in a Four­layer PCB Design
