3 PCB Layout Design
3.5 RF

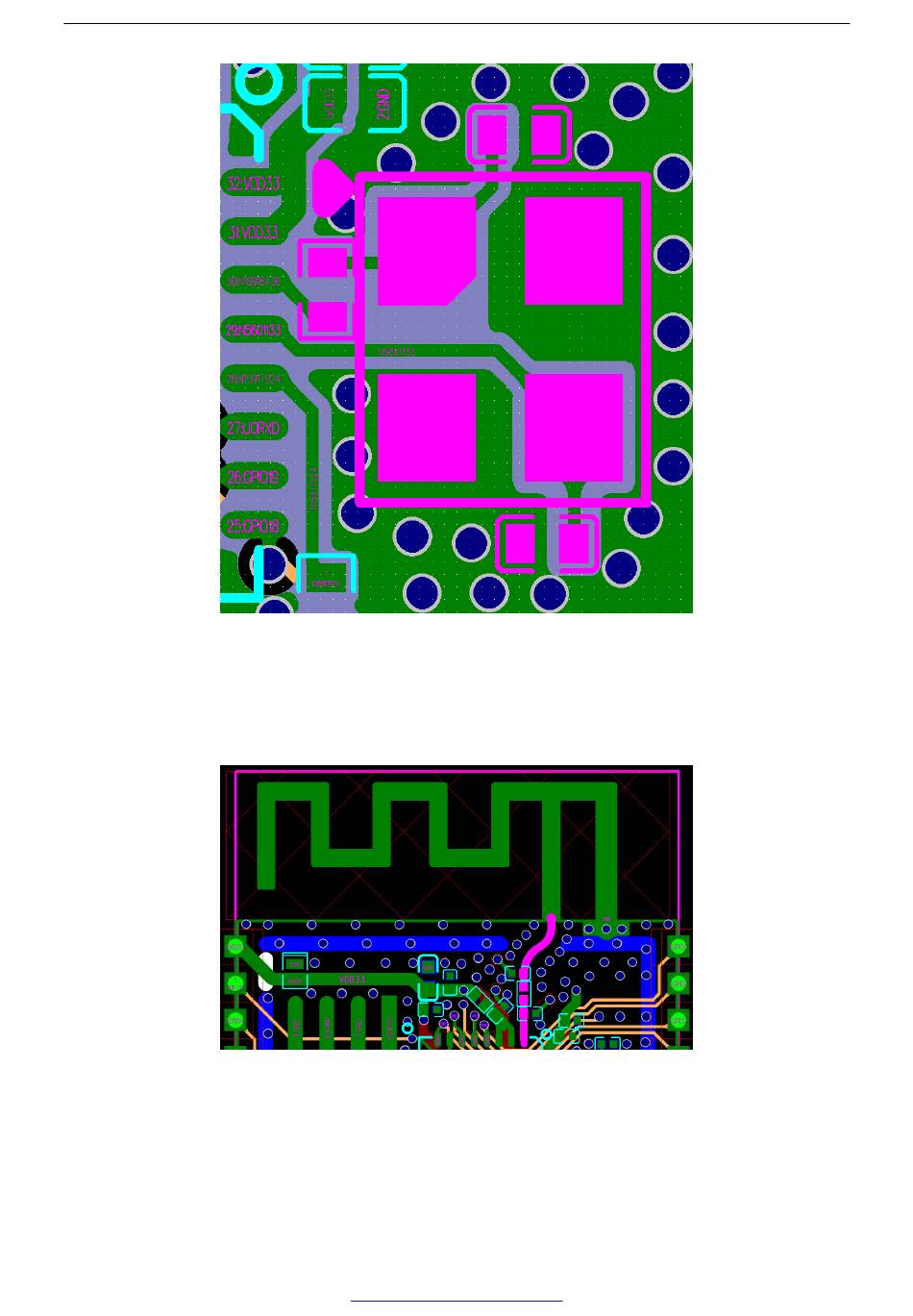

In a four-layer PCB design, the RF trace is highlighted in pink in Figure 18.
Figure 18: ESP32­C3 Family RF Layout in a Four­layer PCB Design
• The RF trace should have 50 Ω single-ended characteristic impedance. The reference plane is the second
layer. A π-type matching circuit should be reserved on the RF trace and placed close to the chip.
• The RF trace should have consistent width and not branch out. It should be as short as possible with
dense ground vias around for inteference shielding.
