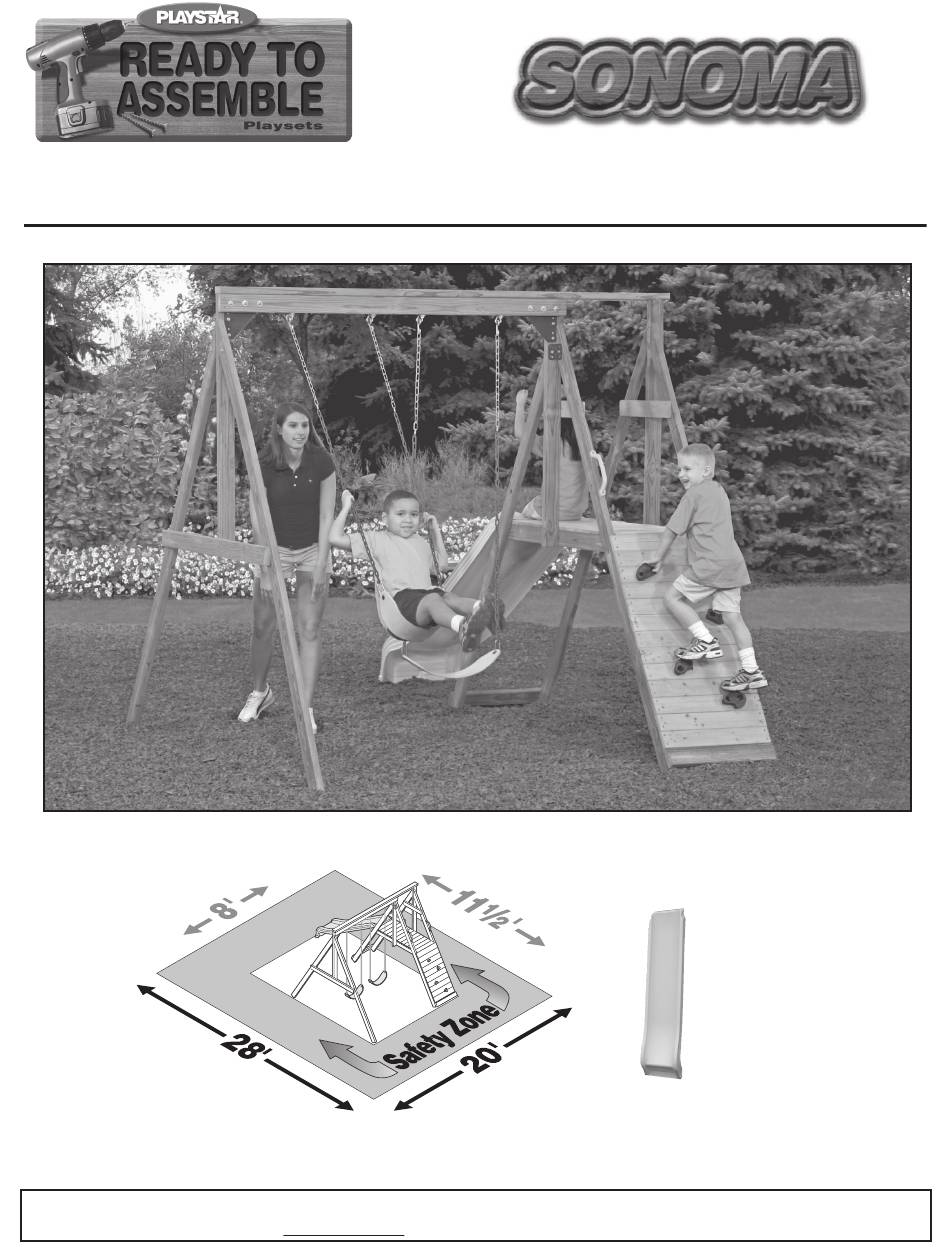

- Page 1 ® ® Safety Guide & Assembly Instructions Featured Component (purchase separately) PS 8813 We’re Here To Help! 1-888-752-9782 Call Toll Free PS 7469 Customer Service: Monday - Friday, 8:00 to 5:00 C.S.T. A.M. P. M.
- Page 2 • Thoroughly read all safety instructions before Testing and Materials (ASTM) Home Playground beginning. Safety Standard. In order for PlayStar to comply with the ASTM Standard, we cannot recommend • Children must remain clear of construction site until anyone above these limits.
- Page 3 SAFETY INSTALLATION: 2. Only one child, for each single planned 4. Dress children appropriately and do not seat or single planned activity should allow them to wear inappropriate items, 1. Follow the instructions provided, do not be allowed on this set at one time, with such as but not limited to, loose fitting alter its design in any way.
- Page 4 Brackets (2) Anchors (5) Corner Discovery Corner Angle Playset Swing Brackets (6) Telescope (1) Brackets (14) Corner Brackets (2) Sonoma Anchors (5) Legend Hangers (4) Drill Template (1) Brackets (6) Tarp (1) Play Tarp (1) scovery Handles (2) Discovery Swing...
- Page 5 BOARDS INCLUDED Before starting to assemble your playset, make sure all boards and hardware are identified and stacked by size. This will improve your assembly time. All boards are identified by “nominal” dimensions marked at one end. The “actual” width and thickness of boards will vary. During assembly process, hide the marked end of the board to the inside so it is not visible on your completed playset.
- Page 6 2" x 4" Note: If you are marking the left side of the board, the PlayStar Logo is at the left edge of the board. If you are marking the right side of the board, the PlayStar Logo is at the right edge of the board.
- Page 7 SUPPORT ASSEMBLY 2" Items for STEP 1: 2" x 4" x 91" (Fig. 1) (6) 2" x 4" x 91" boards (1 end has 60º angle) (3) 2" x 4" x 46³|₄" boards (6) #8 x 2¹⁄₂" deck screws Drill ¹|₈" hole into the 2" x 4" x 91" board 2"...
- Page 8 Items for STEP 3: Attach corner brackets. Position brackets so that the short sides are against the 2" x 4" x 46³|₄" (6) Corner Brackets boards at dimension shown. Use the bracket as a drill guide and drill (18) #8 x 2¹⁄₂" deck screws ¹|₈"...
- Page 9 Items for STEP 4: Position angle bracket so it is tight against 2" x 4" x 91" board and tight against corner bracket as shown for left hand and right hand assemblies. (Fig. 1 and 2) Secure with two #8 x 1¹|₄" deck screws. (2) STEP 3 Assemblies (2) Angle brackets (4) #8 x 1¹|₄"...
- Page 10 Items for STEP 5: Position 2" x 4" x 62¹|₂" board as shown. Make sure both ends of the 2" x 4" x 62¹|₂" board are flush with the 2" x 4" x 46³⁄₄" board on each (1) 2" x 4" x 62¹|₂" board support assembly.
- Page 11 Items for STEP 6: Position 2" x 4" x 69" board directly on top of bottom board flush with one end of the support assembly as shown. (1) 2" x 4" x 69" board (10) #8 x 2¹|₂" deck screws Drill the 2"...
- Page 12 Items for STEP 7: Lift assembly onto sawhorses as shown. (6) ³|₈" x 3¹|₂" hex bolts Note: If you do not have saw horses, rest beam on ground and (6) ³|₈" lock nuts rotate support assemblies simultaneously to the other (12) ³|₈"...
- Page 13 Items for STEP 8: For swing hanger locations, mark the top beam board, on the bottom edge, at the dimensions shown. (4) Swing Hangers (4) ³|₈" x 3" lag screws Drill a ¹|₄" hole 2¹|₂" deep in the center of the four swing hanger locations. (4) ³|₈"...
- Page 14 Items for STEP 9: Position 2" x 4" x 91" board centered over the top swing beam as shown. Secure with two #8 x 2¹|₂" deck screws at each (1) 2" x 4" x 91" location. (2) 2" x 4" x 21¹|₂" (18) #8 x 2¹|₂"...
- Page 15 Items for STEP 10: Attach fourteen pre-drilled 1" x 4" x 18¹¹|₁₆" boards. (14) 1" x 4" x 18¹¹|₁₆" Attach the front and back boards flush with the (56) #8 x 1¹|₂" deck screws 2" x 4" x 46³|₄" boards and equally space the remaining boards.
- Page 16 Items for STEP 11: Attach thirteen pre-drilled 1" x 4" x 21⁷|₁₆" boards above the bottom board you attached in STEP 9. Start at the bottom and keep boards (13) 1" x 4" x 21⁷|₁₆" tight to each other. Secure with #8 x 1¹⁄₂" deck screws. (52) #8 x 1¹|₂"...
- Page 17 Items for STEP 12: Position two pre-drilled 1" x 4" x 18¹¹|₁₆" boards flush with both edges of support assemblies at the approximate (2) 1" x 4" x 18¹¹|₁₆" dimension shown. Secure with #8 x 1¹|₂" deck screws. (8) #8 x 1¹|₂" deck screws Flush Flush 1"...
- Page 18 ANCHORING Items for STEP 13: At locations shown screw Playset Anchors into ground by hand (a long screwdriver will help). (4) Playset Anchors (4) ³|₈" x 1¹|₂" lag screws Use the anchor as a drill guide and drill a ¹⁄₄" hole 1" deep into (4) ³|₈"...
- Page 19 Items for STEP 14: (1) Slide (3) ¹|₄" x 1" machine screws (3) ¹|₄" T-nuts (3) ¹|₄" split lock washer Align slide at right angle (90º) to 48" play deck. Lip of slide should rest on the play deck 1¹|₂". Using the slide as a template, mark play deck through the three holes in the slide.
- Page 20 ¹|₄" split lock washers. Thank You for choosing PlayStar. Because it is our intention to make this a positive family experience, we have taken great care in preparing this product. Should you have any questions, or if we can assist you in any way, please call our friendly Customer Service Department for immediate action.
