Floor-Standing Position - Airflow Duplexvent MULTI Instruction Manual

Duplexvent Unit Type
Multi
500 Multi
1000 Multi
1500 Multi
2500 Multi
3500 Multi
5000 Multi
6500 Multi
8000 Multi
10100 Basic

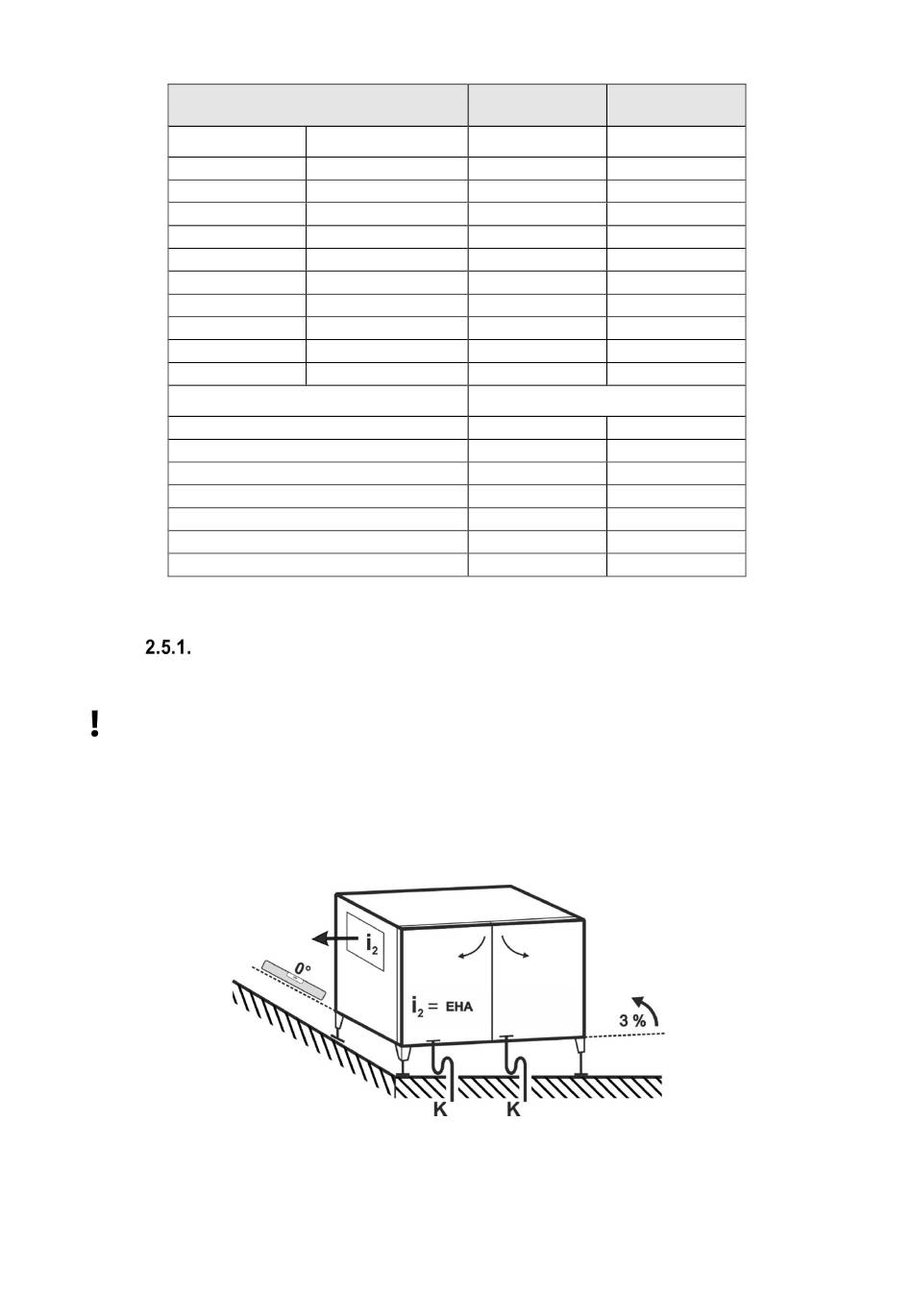

Floor-standing position:

·
The appliance is placed on a base frame, which is attached on the bottom side of the unit.
It is not allowed to remove or modify the base frame – there is a risk of mechanical damage of the
unit!
·
Adjustable stand feet are delivered along with the unit. The feet are to be mounted into the
integrated frame. Uneven ground under the unit can be levelled using the adjustable feet. Slope
the unit as follows:
Units 500 and 1000 Multi, 500 to 1100 MultiEco: Slope the longer side of the casing 3%
o
towards the condensate drain located at i2. Level the shorter side of the casing horizontally.
Multi Eco
500 Multi Eco
800 Multi Eco
1100 Multi Eco
1500 Multi Eco
2500 Multi Eco
3500 Multi Eco
4500 Multi Eco
5500 Multi Eco
6500 Multi Eco
Basic
1400 Basic
2400 Basic
3400 Basic
5400 Basic
7100 Basic
8100 Basic
Standard door Hingeless door
T (mm) T (mm)
800
900
1000
1200
1200
1200
1200
1300
1300
1500
1000
1000
1200
1200
1300
1300
1500
500
500
500
500
600
680
680
900
1100
1300
500
500
600
700
900
1100
1300
9
