Description:
1,2,3 – blocks of the unit
e1 - Intake (supply air)
e2 - Exhaust (supply air)
2.7.
Assembly of semicompact units
The following steps describe the assembly of unit with the configuration of blocks and ports in the
Chapter 2.6 . The way of connecting wires between blocks via wiring boxes is described in the
Chapters 2.7.3 to 2.7.6. The alternative way of using connectors is described in the Chapter 7.
Assembly of blocks
Make sure that the surface of the intended placement of the unit is even.
Mount adjustable bases (part of delivery) on all stand feet. Screw the
adjustable bases approximately into the middle of the height.
Place the blocks on the surface, keep the recommended manipulation
space.
Type
Duplexvent 10000 Multi
Duplexvent 11000 Multi
Duplexvent 7500 Multi Eco
Duplexvent 9000 Multi Eco
Duplexvent 12100 Basic
Duplexvent 15100 Basic
3
2

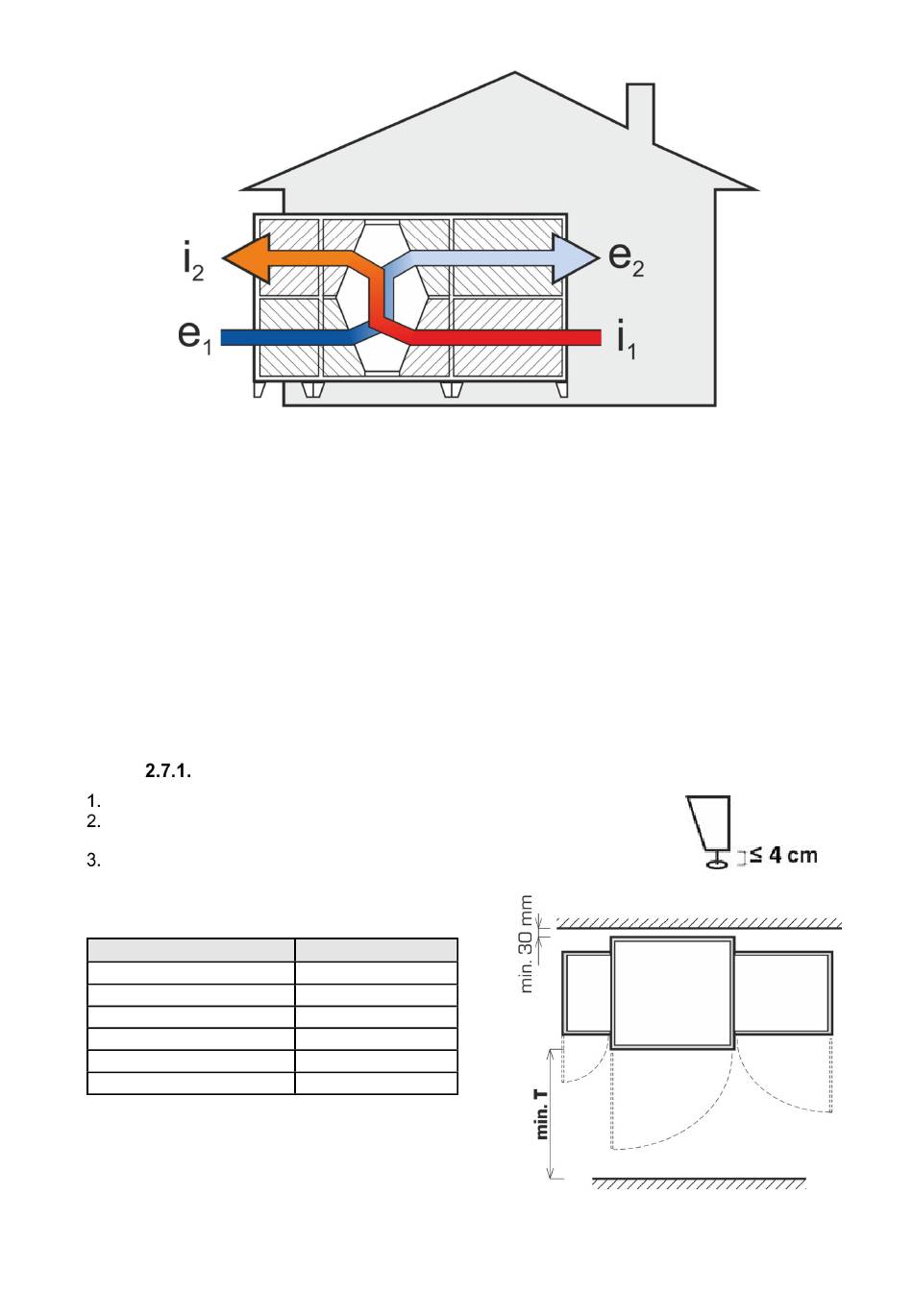

Example of block arrangement in a semicompact unit
Duplexvent Multi / Multi Eco
i1 - Intake (extract air)
i2 - Exhaust (extract air)
Door T (mm)
1600
1600
1600
1600
1600
1700
1
wall
2
3
Manipulation space
1
13
