Assembly Of Compact Units - Airflow Duplexvent MULTI Instruction Manual

1 2
9 10 11

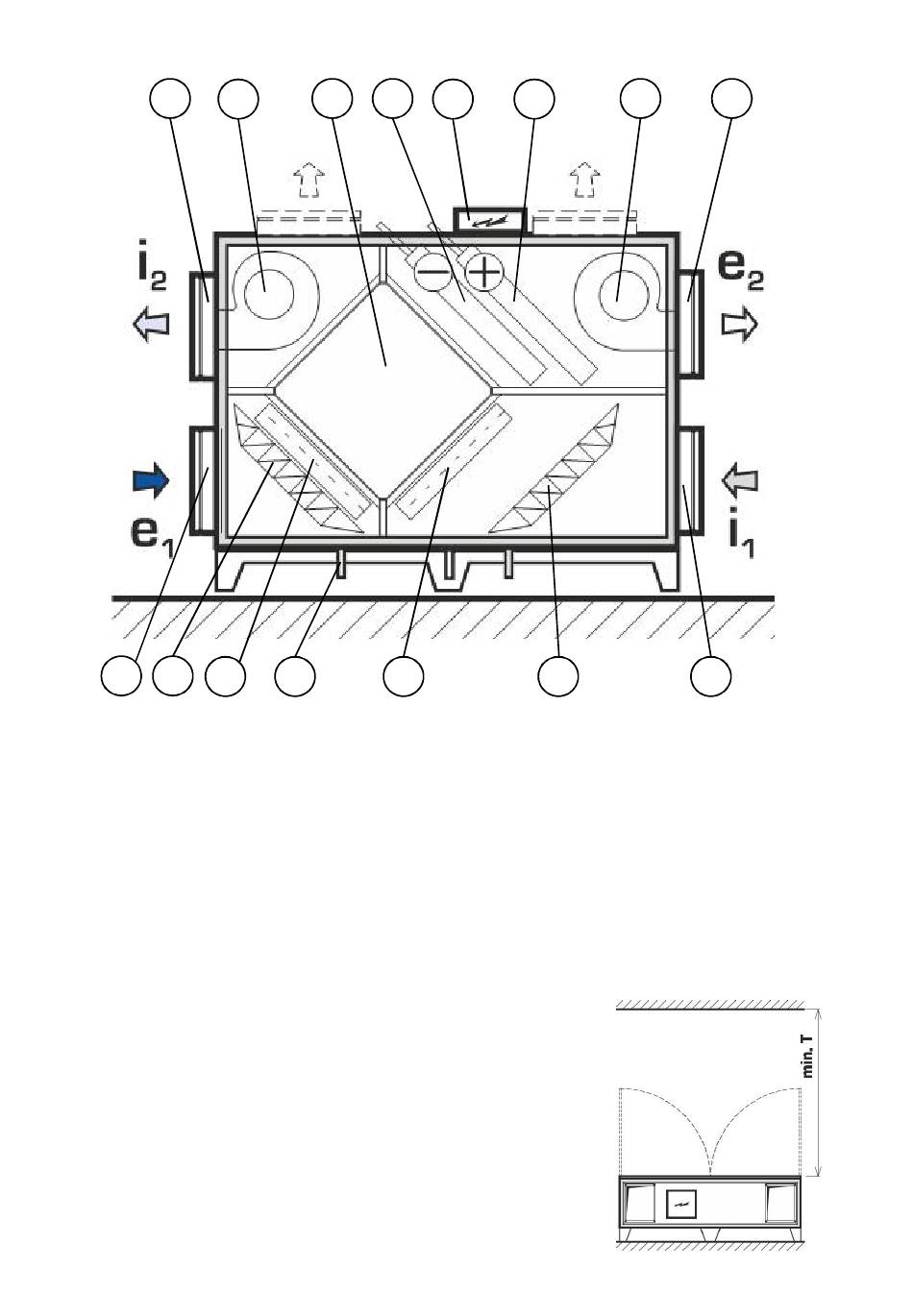

1. Exhaust (extract air)
2. Exhaust fan
3. Heat exchanger
4. Water cooling / direct evaporator
5. Junction box
6. Water heating
7. Supply fan
8. Exhaust (supply air)
Dimensions of ventilation units are depicted in Duplexvent selection SW when you select the
Duplexvent unit > Design > Show > total dimensions. The information is available also in technical
datasheets as well as in the technical specification which forms an integral part of contract on
purchasing of the ventilation unit.
2.5.

Assembly of compact units

·
Before installation remove the wooden transport planks;
·
Place the unit on the surface while keeping the recommended
manipulation space.
3
4 5
12 13
6 7
14 15
9. Intake (supply air)
10. Supply air filter
11. Bypass flap
12. Condensate drain
13. Circulation flap
14. Exhaust air filter
15. Intake (extract air)
Manipulation space
8
8
