Floor-Standing Flat Position; Semicompact Units - Airflow Duplexvent MULTI Instruction Manual

8000 Multi, 6500 MultiEco
Eight brackets delivered separately

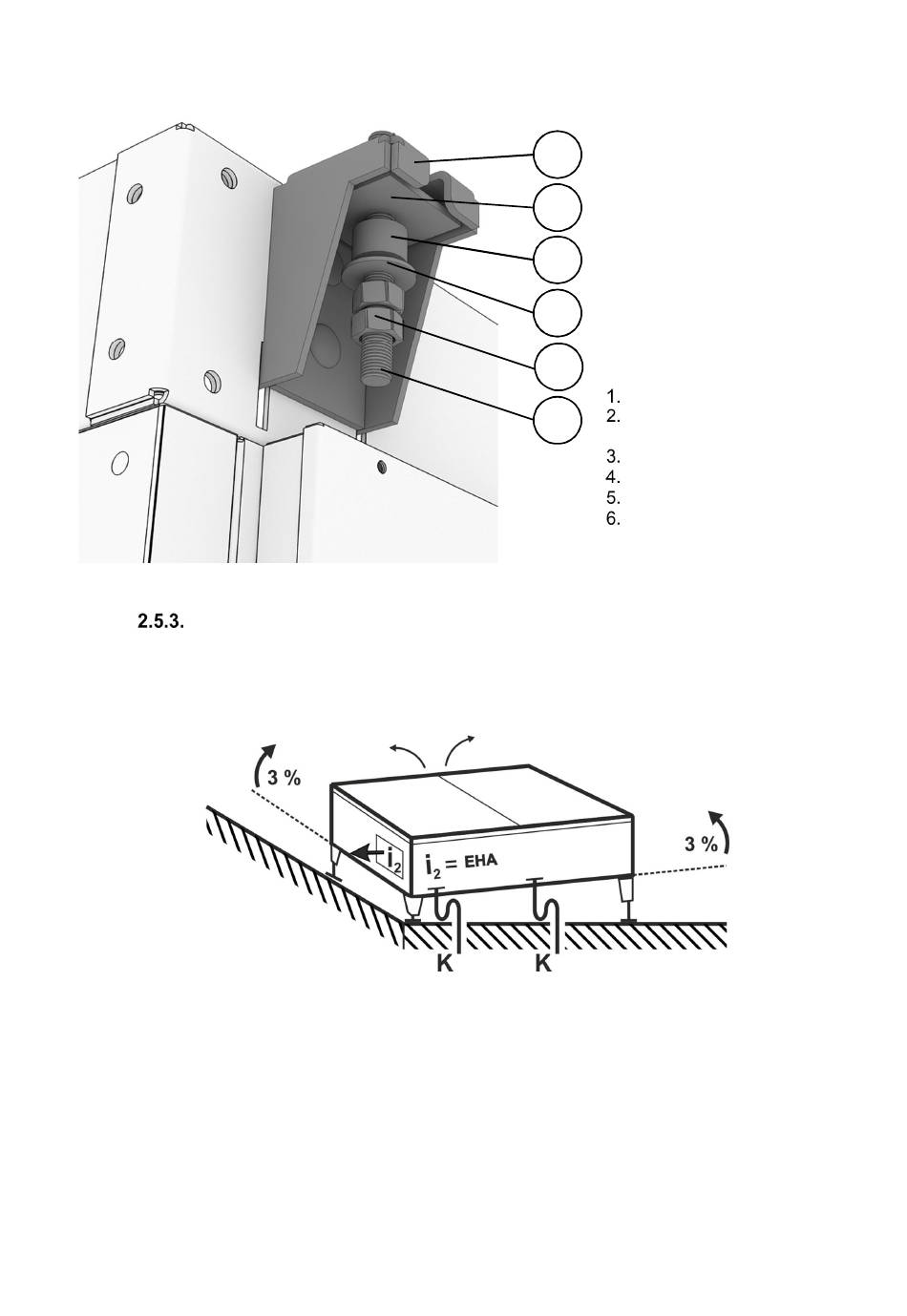

Floor-standing flat position:

●
Put the equipment on stand feet having the height of 150 mm.
●
Slope both the longer and shorter side of the casing 3% towards the condensate drain at exhaust
air (i2).
2.6.

Semicompact units

Semicompact units Duplexvent 10000 - 11000 Multi, Duplexvent 7500 - 9000 Multi Eco and
Duplexvent 12100 – 15100 Basic are a new generation of versatile outdoor ventilation units with
counterflow
(Multi, Multi Eco) and crossflow (Basic) heat recovery exchangers. The units consist of two or three
blocks that form the unit once they are connected together.
The units are used for comfortable ventilation, hot-air heating and cooling in large facilities, shop floors,
stores, schools, restaurants, shops, sports and industrial halls. Units Multi and Multi Eco meet
requirements of Commission Regulation (EU) No. 1253/2014 (Ecodesign) in the defined working area.
Units Duplexvent 12100 – 15100 Basic are intended solely for applications that fall outside the scope of
Commission Regulation (EU) No. 1253/2014.
1
2
3
4
5
Description:
Suspension bracket
Washer spreading the
6
weight
Silent block *)
Washer M10 *)
Nut M10 *)
Screw rod M10 *)
*) Not included in the delivery
12
