Description Of Assembled Unit - Airflow Duplexvent MULTI Instruction Manual

Gradually tighten the connections. Using the spirit level make sure that the blocks being
connected remain levelled.
Once you connect the blocks 1 and 2 the sealing between the blocks should be adhering to the
construction of blocks along the whole length of the sealed connection. Make a visual check to
make sure that no light passes through the connection of the blocks.
Repeat the steps 5 through 8 and connect the blocks 2 a 3.
Using the spirit level make sure that the connected blocks still remain levelled.

Description of assembled unit

3
1
2
16 17 18 19

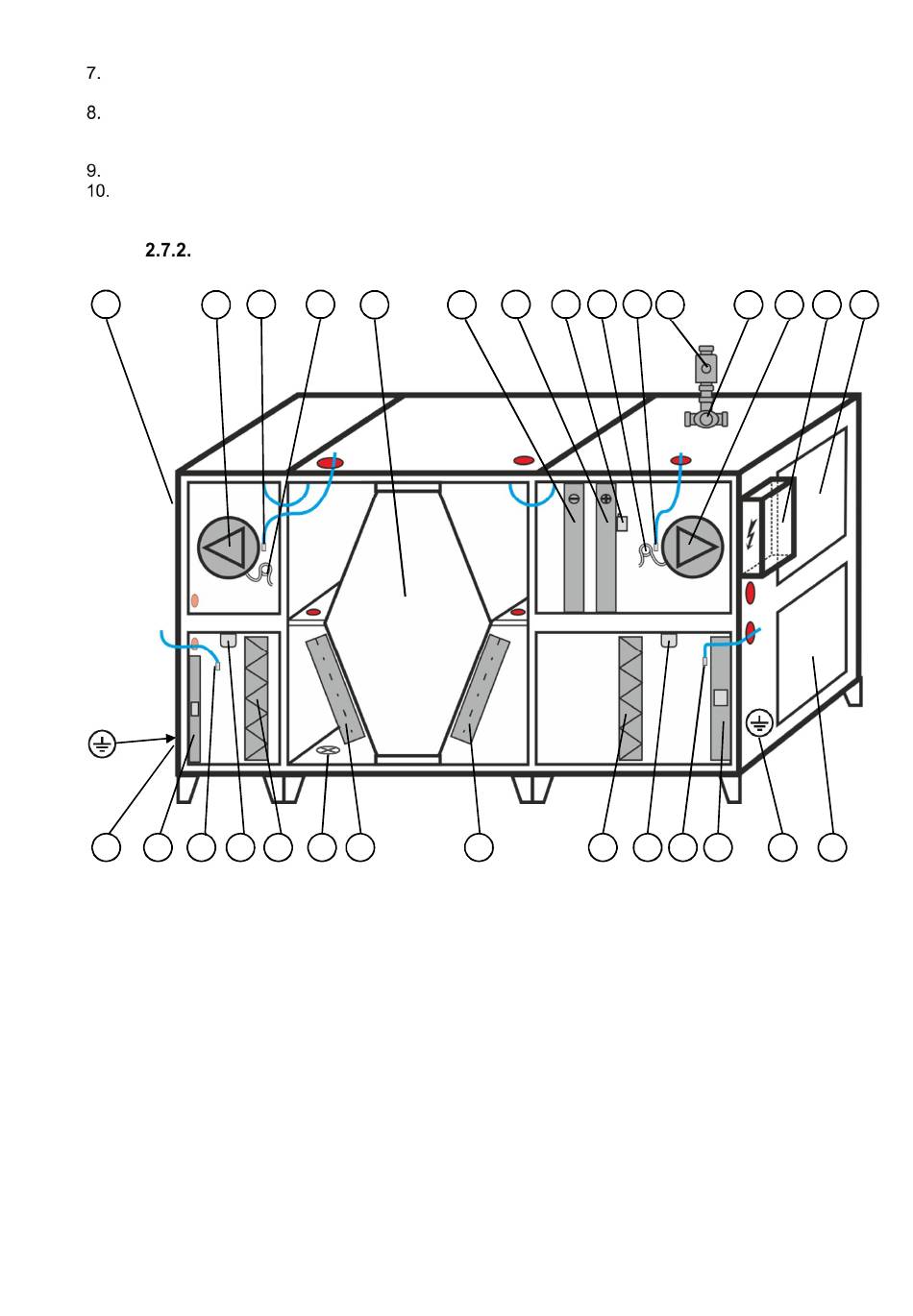

Key:
1. Exhaust (extract air)
2. Exhaust fan Mi
3. Temperature sensor TU2
4. Manometer of exhaust fan PMi *)
5. Heat exchanger
6. Water cooling / direct evaporator *)
7. Water heating *)
8. Capillary thermostat TFK *)
9. Manometer of supply fan PMe *)
10. Temperature sensor TU1
11. Water heater pump *)
12. Water heater pump mixing valve *)
13. Supply fan Me
14. Junction box
15. Exhaust (supply air)
*) Optional equipment
4 5
20 21 22
10
6 7 8 9
23 24
16. Intake (supply air)
17. Shut-off flap (supply air) Se *)
18. Temperature sensor TEA
19. Filter manostat PFe *)
20. Supply air filter
21. Condensate drain
22. Bypass flap SB
23. Circulation flap SC *)
24. Exhaust air filter
25. Filter manostat PFi *)
26. Temperature sensor
27. Shut-off flap (extract air) Si *)
28. Grounding point
29. Intake (extract air)
11 12 13
25 26 27 28
16
14 15
29
