Connecting temperature sensors

Connected on delivery
·
Sensors TEB and TU1 are connected to the junction box;
Connected on delivery, optional equipment
·
Sensor TFK is connected to the junction box.
Connect
·
Lead the cables TEA and TU2 with temperature sensors from the junction box into their
intended position;
TU2
TEA

Connecting pressure sensors

Connected on delivery
·
Manostat PFi is connected to the wiring box in the compartment i1. The wiring box is
connected to the junction box;
·
Manostat PFe is connected to the wiring box.
Connected on delivery, optional equipment
·
Manometer cable PMe is connected to the junction box;
·
Pressure measurement point PDi measuring the pressure increase of the fan Mi is installed
on the left side of the unit. Pressure measurement hoses are located on the top side of the
block 3.
·
Pressure measurement point PDe measuring the pressure increase of the fan Me is installed
on the right side of the unit. Hoses leading from the pressure measurement point are installed.
Connect
·
Lead the cable of manostat PFe from the junction box to the wiring box in the compartment
e1.

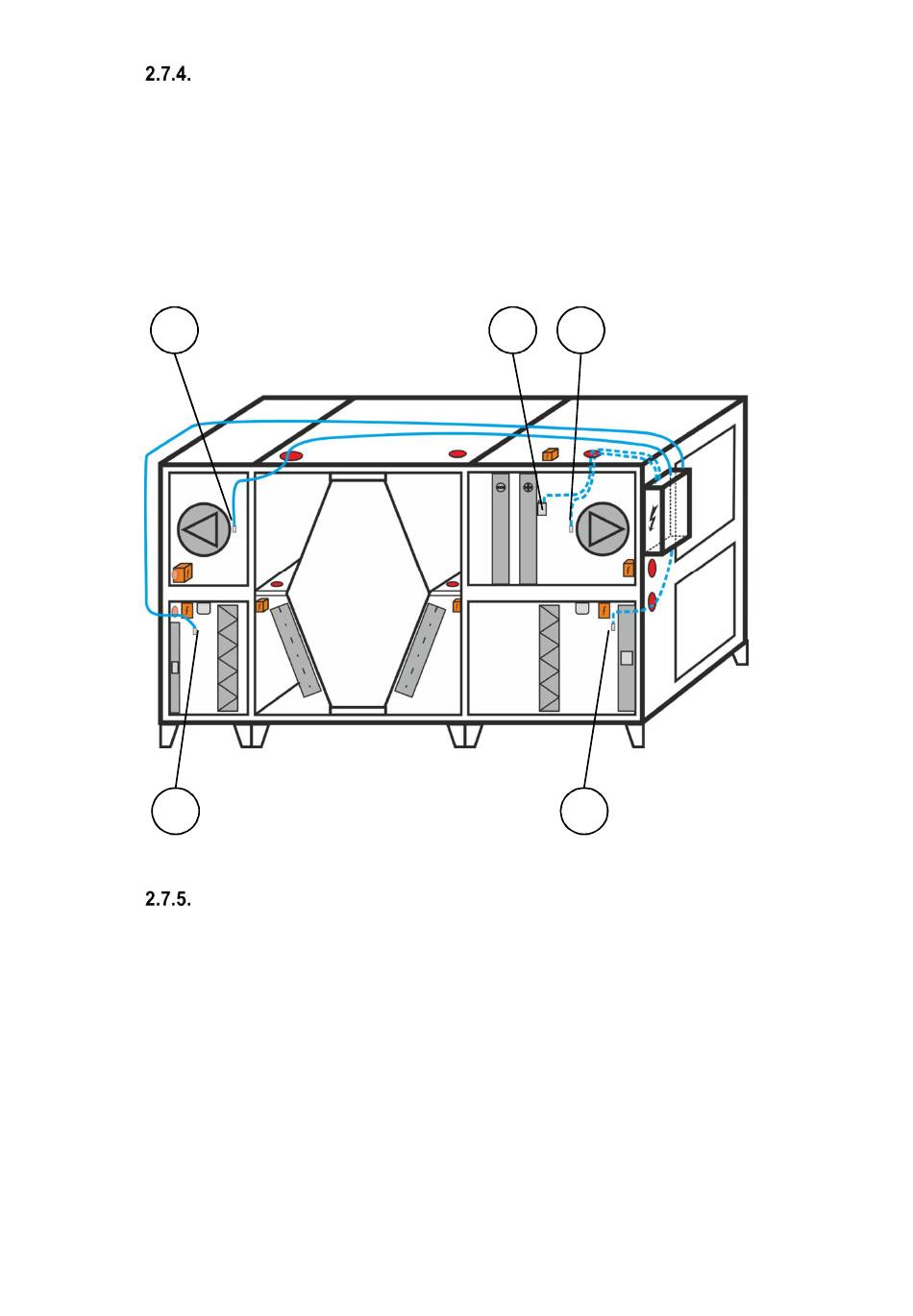

Connection of temperature sensors
TFK TU1
TEB
