Use suspension brackets (standard supply) to hang the equipment on sufficiently-sized anchors
(provided by the building contractor).
The dimensions of suspension points are detailed in the selection software Duplexvent in Design >
AHU placement method, as well as in the technical specification that forms an integral part of
purchase contract on the ventilation unit. Below you will find examples of unit suspension.

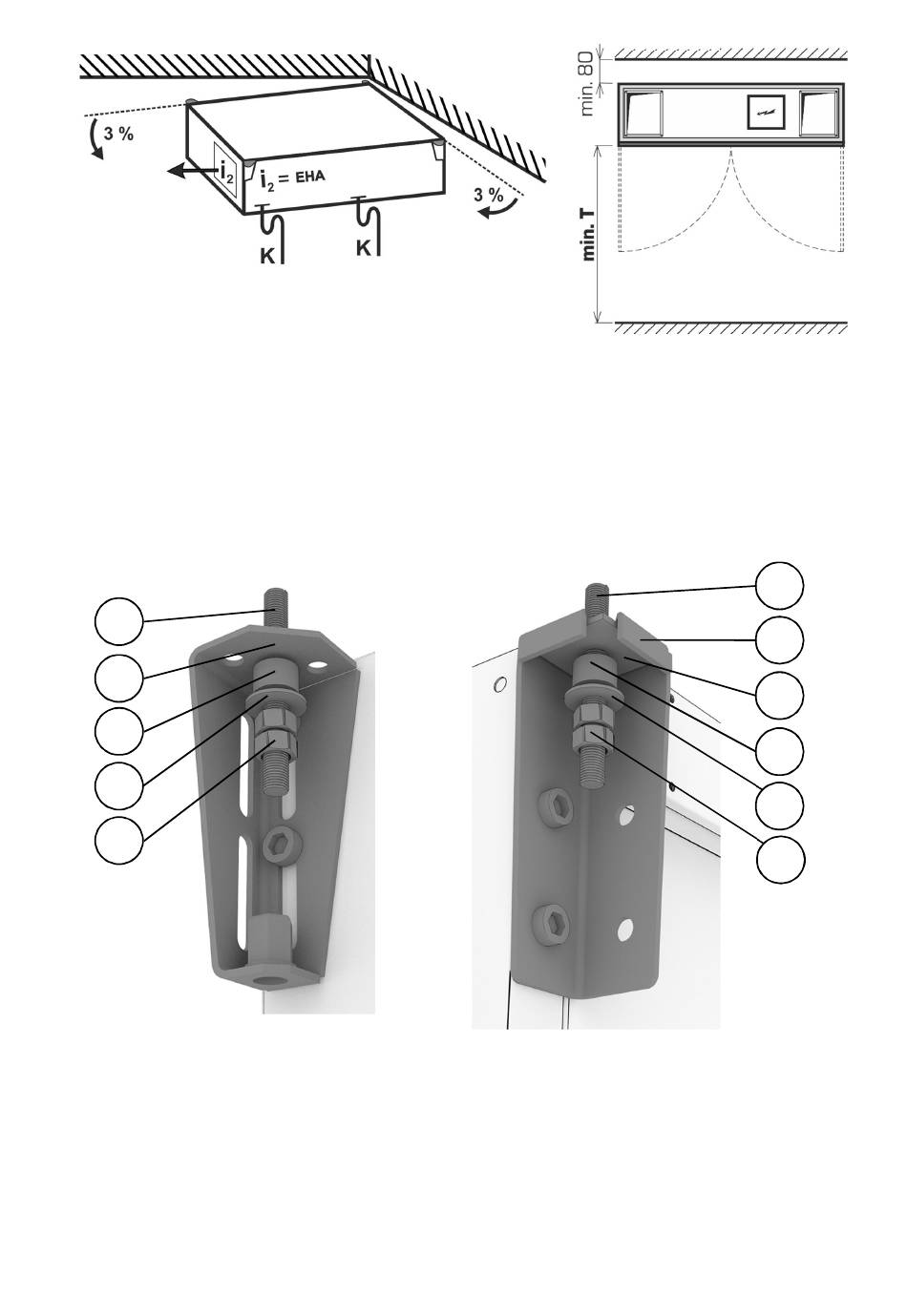

500 - 1000 Multi, 500 – 1100 MultiEco
Four brackets delivered separately
1
2
3
4
5
Description:
1. Screw rod M10 *)
2. Suspension bracket
3. Silent block *)
4. Washer M10 *)
5. Nut M10 *)
*) Not included in the delivery
1500 - 6500 Multi, 1500 – 5500 MultiEco,
Two brackets integrated into the unit and
two brackets delivered separately
Description:
1. Screw rod M10 *)
2. Suspension bracket
3. Washer spreading the weight
4. Silent block *)
5. Washer M10 *)
6. Nut M10 *)
Ceiling
Manipulation space
1
2
3
4
5
6
