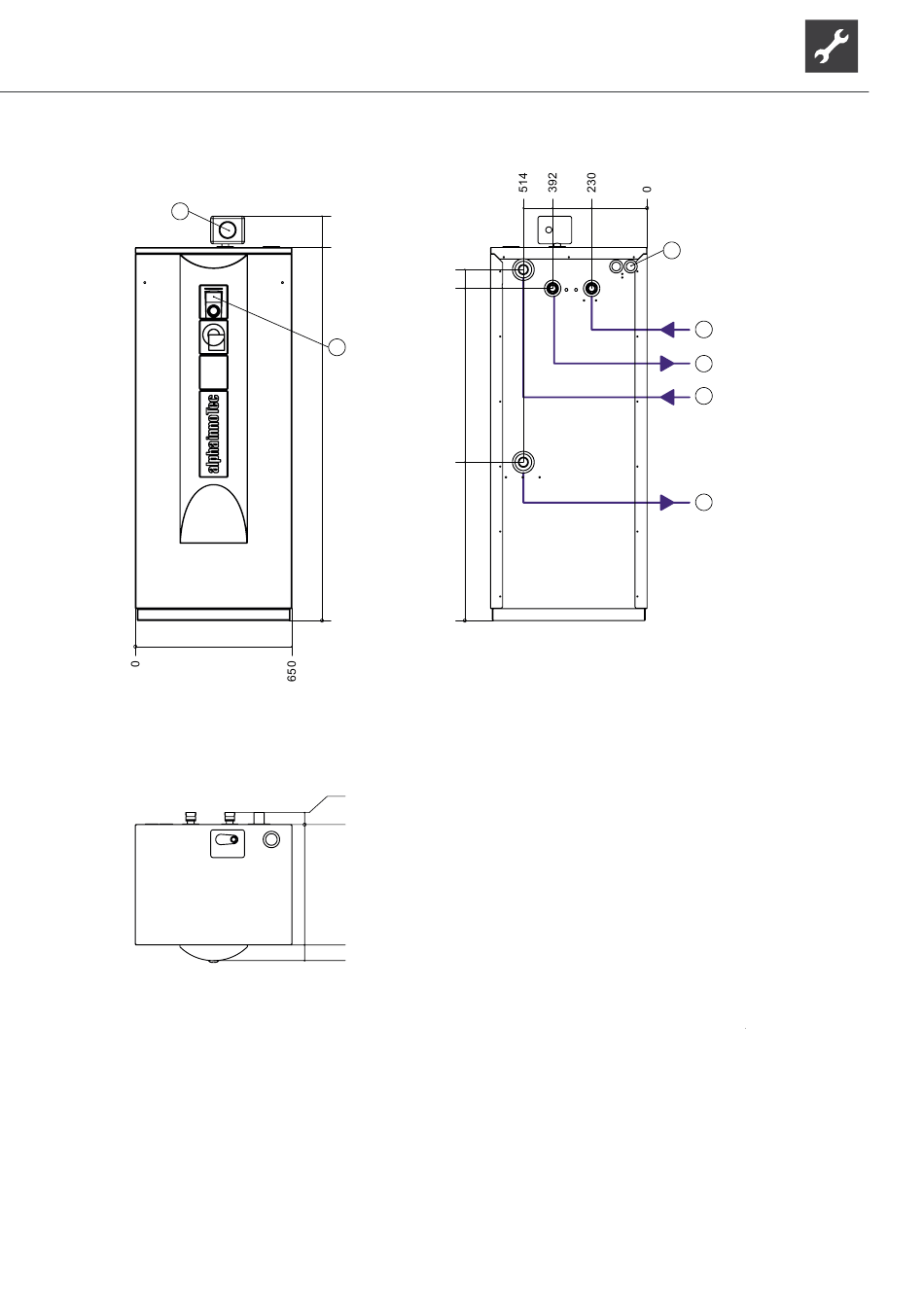

Dimensional drawings

A
6
C
Item Designation
Heating water inlet (return); flat seat
1
Heating water outlet (flow): flat seat
2
Heat source inlet at the unit; flat seat
3
Heat source outlet at the unit; flat seat
4
5 Penetration for electric/sensor cables
Safety assembly (in extra box)
6
7 Control panel (in extra box)
Subject to change without notice | 83050700fUK – Translation into English of the original German operating manual | ait-deutschland GmbH
1680
1550
1458
1380
7
658
0 0
Legend: UK819258b
All dimensions in mm.
A
Front view
50
C Top view
0
E Rear view
500
565

WWC 280X

E
5
1
2
3
4
Dim.
G 1 1/4"
G 1 1/4"
G 1 1/4"
G 1 1/4"
---
---
---
37
