Insulating The Hydraulic Connections; Installing The Control Panel - Alpha-InnoTec WWC H/X Series Operating Manual

NOTE:
Once the heat pump, heating circuit and domes-
tic hot water charging circuit have been flushed,
the bleeding program of the heating and heat
pump controller must be started, after the con-
trol panel has been installed.
If no further steps follow, install the front panel.
Insulating the
hydraulic connections
NOTE.
Insulate the heating circuit and the heat source
according to relevant local standards and guide-
lines.
Check all hydraulic connections for leaks. Perform
leak test...
Insulate all connections, vibration isolators, con-
nections and pipes of the heating circuit and the
heat source. Insulate the heat source so that it is
vapour-diffusion tight.
Subject to change without notice | 83050700fUK – Translation into English of the original German operating manual | ait-deutschland GmbH

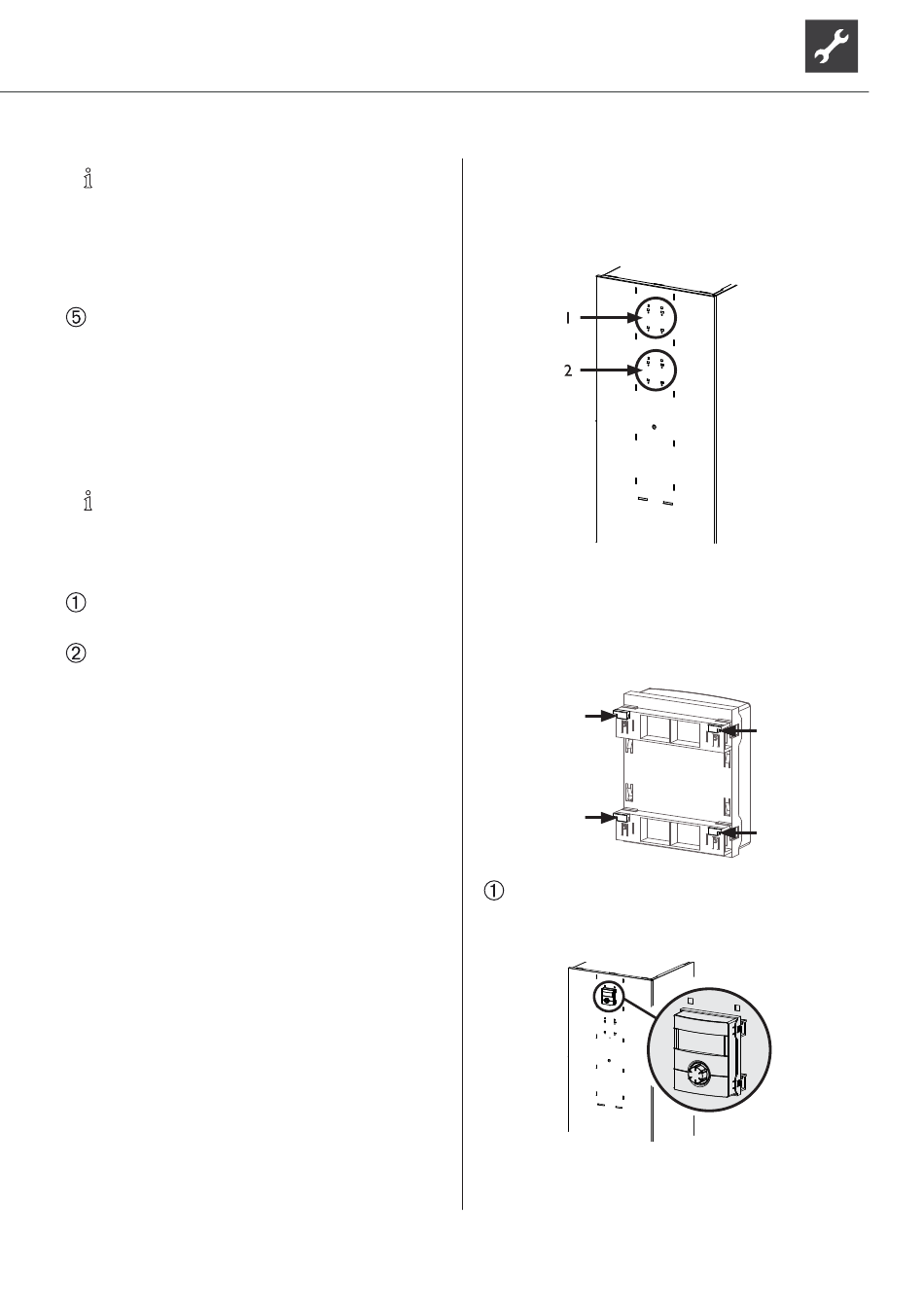

Installing the control panel

There are 4 each recesses at different heights in the
front panel of the unit for fastening the control panel:
1 four upper recesses
2 four lower recesses
There are 4 hooks at the rear of the control panel,
which are used to hook the control panel on the front
panel of the unit:
Hook the control panel's hooks into the recesses
of the front panel (either in the upper or lower
recesses)...
Example:
Control panel in upper recesses
19
