Summary of Contents for Motic D-Moticam 1080

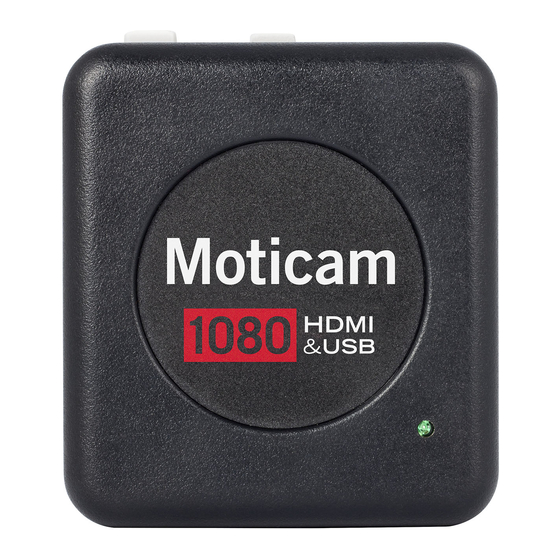

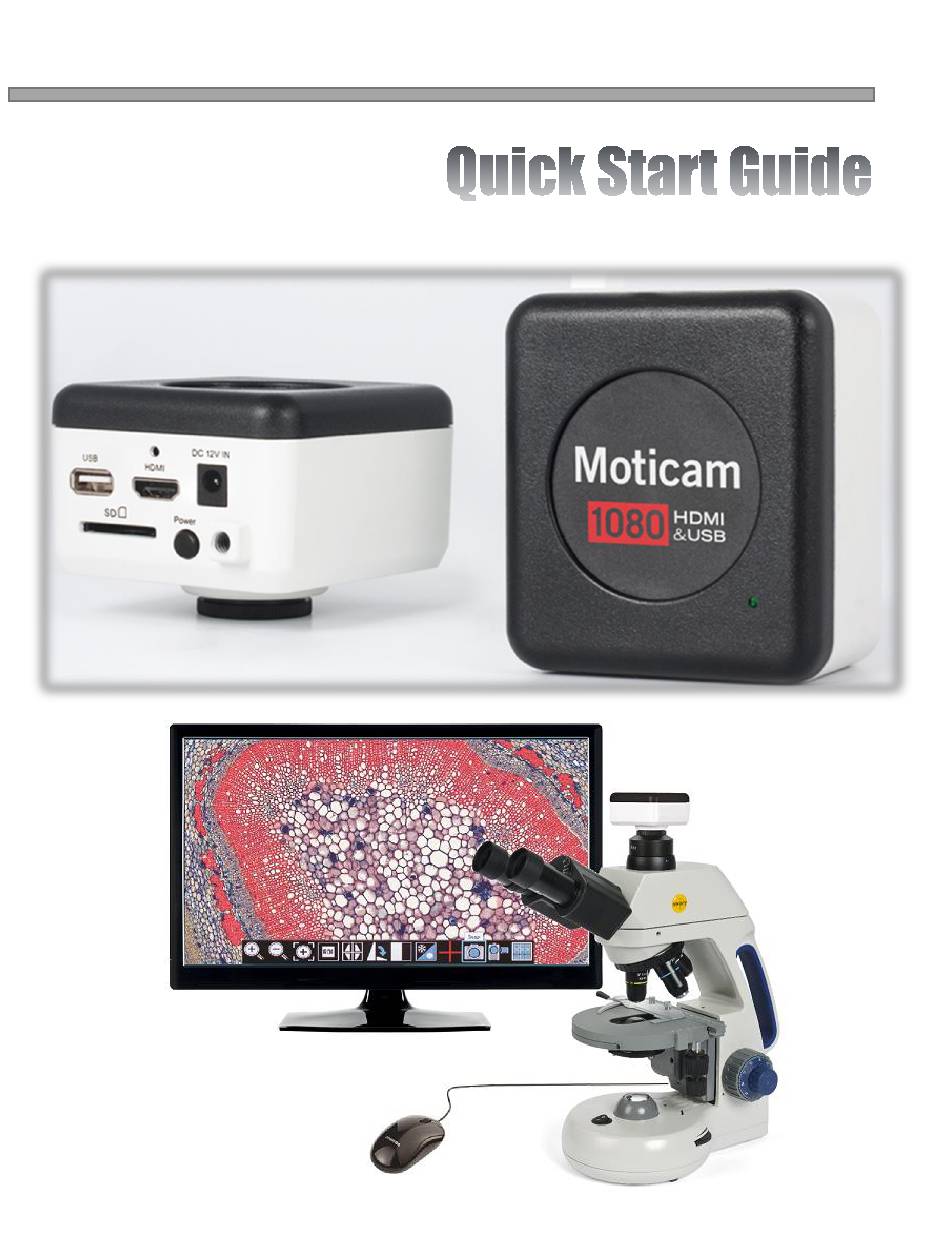

- Page 1 D-Moticam 1080...
- Page 2 C-Ring 110V-240V Power Supply Connecting your Moticam 1080 Using the camera on a eyepiece 1. Install the Motic Images Plus application program from the CD included. 2. Remove the Dust Cap from the camera and attach the focusable lens. 3. Choose the right size eyepiece adapter and attach this to the focusable lens.
- Page 3 Using the camera on a Trinocular Microscope 1. Install the Motic Images Plus application program from the CD included. 2. Remove the Dust Cap from the camera and attach the microscope’s C-Mount adapter (Please Note the C-Mount adapter is specific to your microscope.) Depending on the type of adapter and microscope, the C-...
- Page 4 On Screen Display Controls When the camera is connected to an HDMI display and controlled through a USB mouse, you can simply move the mouse cursor to the right to activate the on-screen function display for capturing images and also for adjusting various aspects.
- Page 5 Image Adjustment Controls AE/AWB Menu allows you to adjust: Exposure, Gain, Gamma, Brightness, Light Frequency, White Balance, and Color Temp. Settings Menu allows you to adjust: Saturation, Contrast, Gamma, Sharpness, Digital Noise, Save Individual User settings, Time setting, Language, Format the SD Card, and Restore all settings to Default.
- Page 6 DMG file. Then connect your D-Moticam 1080 to the computer or laptop with the A to A USB cable include with your camera. This is the USB cable with the two flat ends. One end plugs into your camera and the other plugs into your computer or laptop.
- Page 7 At the top of main screen find the menu tab labeled File and click on Capture: Once the Motic Live Imaging Module has opened, click on Help: This will open the Motic Live Imaging Module help file, containing the full help menu:...
- Page 8 The full software manual for Motic Images is accessible within the software’s main page. To begin, open the Motic Images Software. At the top of main screen find the menu tab labeled Motic Images Plus Help: This will open the Motic Images Help Manual:...
