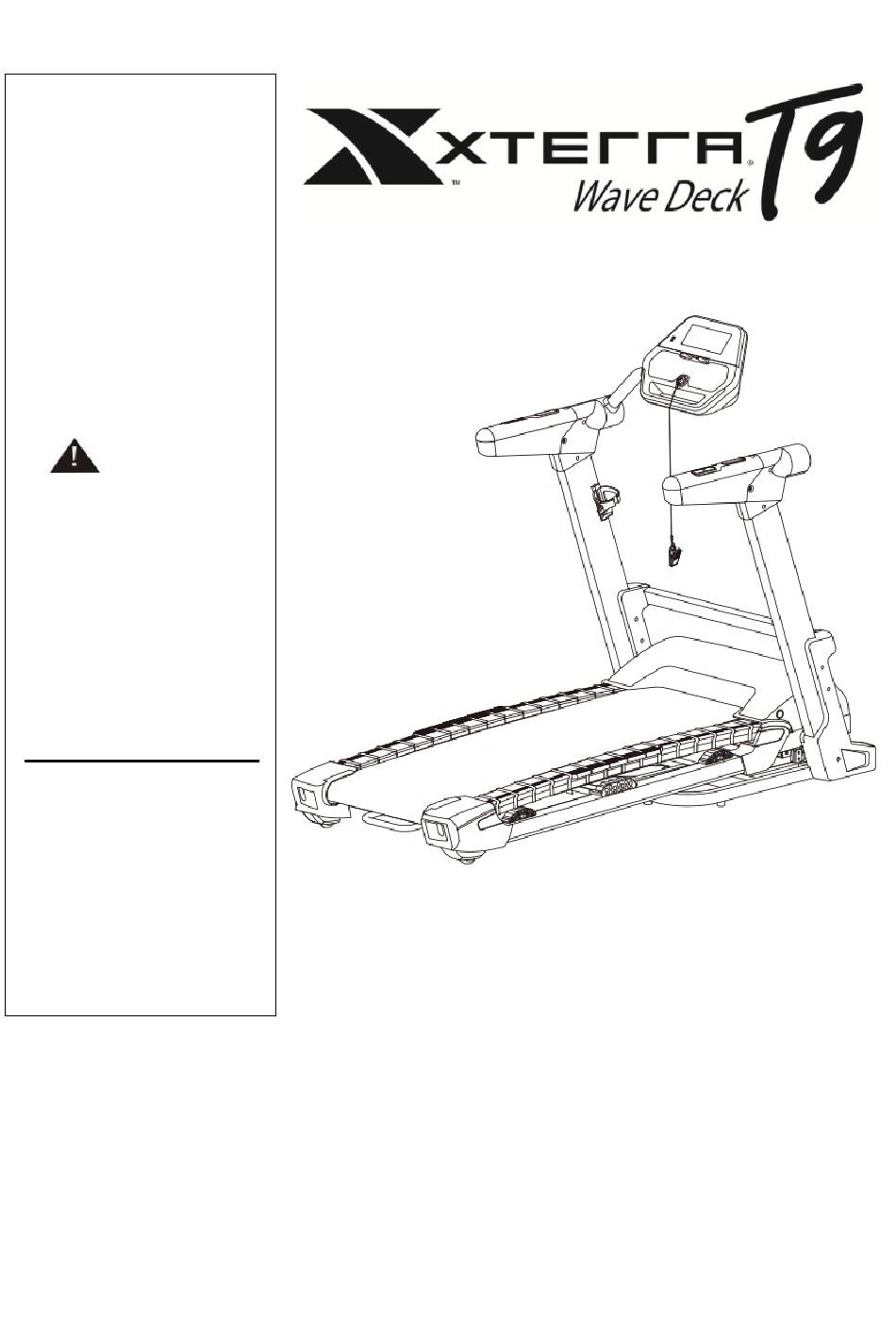

Owner's Manual
Model No.
16004009000
- Assembly
- Operation
- Adjustments
- Parts
- Warranty
CAUTION:
You must read and
understand this
owner's manual
before operating
unit.
Keep this manual for
future reference.
Serial number
Write the serial
number in the space
above for reference.
Serial number can be
found at the front
bottom section of the
Treadmill.
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE
OPERATING YOUR NEW TREADMILL!
Customer Service 1-888-707-1880
Email: customerservice@dyaco.ca
0
Dyaco Canada Inc. 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wave Deck T9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xterra Wave Deck T9

Summary of Contents for Xterra Wave Deck T9

  • Page 1 Owner’s Manual Model No. 16004009000 - Assembly - Operation - Adjustments - Parts - Warranty CAUTION: You must read and understand this owner’s manual before operating unit. Keep this manual for future reference. Serial number Write the serial number in the space above for reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions ................3 Important Electrical Instructions..............5 Assembly Instructions ..................8 Folding/Moving Instructions…...............11 Servicing and Maintenance ................14 Operation of Your Treadmill ................17 Preset Programs...................20 Troubleshooting...................25 Using the Heart Rate Transmitter ..............27 Parts diagram ………….................30 Parts List ......................31 General Maintenance ...................35 Training Guidelines..................36 Manufacturer’s Limited Warranty..............4 0 ATTENTION...
  • Page 3 BEFORE YOU BEGIN Thank you for choosing the XTERRA Wave Deck T9 Treadmill. We take great pride in producing this quality product and hope it will provide many hours of quality exercise to make you feel better, look better, and enjoy life to its fullest. It is a proven fact that a regular exercise program can improve your physical and mental health.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS THIS UNIT IS INTENDED FOR HOUSEHOLD USE ONLY READ ALL INSTRUCTIONS BEFORE USING THIS TREADMILL CAUTION: Before starting any exercise program, it is recommended that you consult your physician. WARNING: Connect this unit to a properly grounded outlet only. DANGER: To reduce the risk of electric shock, always unplug the treadmill from the electrical outlet immediately after using and before cleaning.
  • Page 5 Do not operate the treadmill where aerosol products are used or where oxygen is being administered. 10. Read, understand, and test the emergency stop procedure before using the treadmill. Do not insert any objects into any openings. 11. Inspect and properly tighten all parts of the treadmill regularly. 12.

  • Page 6: Important Electrical Instructions

    IMPORTANT ELECTRICAL INSTRUCTIONS WARNING! ●NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels. ●NEVER remove any cover without first disconnecting AC power. ●If voltage varies by ten percent (10%) or more, the performance of your treadmill may be affected.
  • Page 7 !!ATTENTION: IMPORTANT UNPACKING INSTRUCTIONS. PLEASE READ BEFORE UNPACKING YOUR FOLDING TREADMILL!! Serious injury could occur if this folding treadmill is not unpacked properly. There is a strap installed around the treadmill base that prevents the treadmill from unfolding accidentally during shipping. If this strap is not removed properly the treadmill could spring open unexpectedly and cause injury if someone is standing near the treadmill when the strap is removed.
  • Page 8 HARDWARE PACKING IV-A - MAIN FRAME IV-B13 - UPRIGHT POST IV-B3 – UPRIGHT COVER (L) POST COVER OUTER (L) IV-B4 – UPRIGHT IV-B14 - UPRIGHT POST POST COVER COVER (R) TOOLS IV-B21 - Water Bottle Holder IV-C14 – Safety Key Silicon Oil Bottle IV-B22 - Bolt (M10 x 50) x 6 IV-B25 - Washer (D10) x 6 IV-B26 - Bolt (ST3.9 x 14) x 2...

  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS FIGURE 1. ASSEMBLY FOR LEFT AND RIGHT UPRIGHT POSTS Hold the left upright post (IV-B1) & (IV-B2) right post. (Note: Be careful not to damage the wire during the assembly.) Then, place the L & R upright posts and tighten with bolt (IV-B22) and washer (IV-B25).
  • Page 10 FIGURE 2. ASSEMBLY FOR UPRIGHT OUTER POST COVER Place the upright post cover outer (L) (IV-B3) & upright post cover outer (R) (IV-B4) on the bottom frame and tighten with Screw (IV-B26) which are pre-assembled on the frame, using the Cross Wrench. IV-B1 IV-B2 IV-B3...
  • Page 11 FIGURE 3. ASSEMBLY FOR RIGHT & LEFT UPRIGHT POST COVER Step 1. Remove the pre-mounted bolt (IV-A41) and spacer (IV-A113) from right & left upright posts (IV-B1/IV-B2) as well as the upright post covers (IV-B13 & IV-B14). Step 2. Connect the wire (IV-B33) with (IV-B35) and then tighten left upright post cover (IV- B13) with left upright post (IV-B1) using bolt (IV-A41) and spacer (IV-A113).

  • Page 12: Folding/Moving Instructions

    FIGURE 4. HOW TO FOLD UP THE TREADMILL The treadmill is foldable to save space. WARNING: Do not try to fold up the treadmill while it is turned on. Do not connect the power supply while the treadmill is folded. The incline must be adjusted to the lowest level as EXAMPLE A.
  • Page 13 FIGURE 5. HOW TO TRANSPORT THE TREADMILL WARNING: Do not attempt to move the unit unless it is in the folded and locked position. Be sure the power cord is secured to avoid possible damage. Use the rear part of the mainframe to maneuver the unit to the desired position.
  • Page 14 FIGURE 6. HOW TO UNFOLD THE TREADMILL ■ TO UNFOLD THE TREADMILL Step 1: Stand behind the treadmill and hold the rear bar of the machine. Press the lever with your foot to release the locking system. Step 2: The hydraulic brake will slowly lower the treadmill deck until it touches to the ground. Customer Service 1-888-707-1880 Dyaco Canada Inc.

  • Page 15: Servicing And Maintenance

    SERVICING AND MAINTENANCE FIGURE 7. LUBRICANT OILING USAGE INSTRUCTION Your treadmill features a walking belt coated with a lubricant. IMPORTANT: Never apply silicone spray or other substances to the walking belt or walking board. Such substances will deteriorate the walking belt and cause excessive wear. The running belt of the treadmill has been lubricated with the appropriate lubricant before packaging.
  • Page 16 FIGURE 8. STOP USAGE INSTRUCTION If you want to stop exercising, press the “stop” key on the console and then the treadmill will decrease in speed until it gradually stops. If you feel unable to keep up with the running belt speed and the emergency stop is needed, pull out the safety key (IV-C14) and then treadmill will stop within 10 seconds.
  • Page 17 FIGURE 10. CONSOLE ADJUSTMENT The console viewing angle is adjustable. If you find the console is not tightly secured, loosen the screw (IV-B27) and remove the rear cover of console (IV-C5), then tighten or unscrew the bolt (IV-C13) as needed. UNSCREW IV-C13 TIGHTEN...

  • Page 18: Operation Of Your Treadmill

    OPERATION OF YOUR TREADMILL GETTING STARTED: CAUTION: Before operating the console, read the following precautions: Do not stand on the walking belt when turning on the treadmill. Always wear the safety key. Pulling the safety key will stop tread-belt movement. Adjust the speed in small increments to avoid sudden jumps in speed.
  • Page 19 (1) CONSOLE DISPLAYS AND BUTTON FUNCTIONS 1. LCD WINDOWS DISPLAY FUNCTION: A. Speed ：Displays the current speed. Speed range is 1~18Km/H. B. Distance/Calories/Inclination：Distance range is 0.00-99.9Km, you can manually enter your desired distance. When you are about to reach your preset distance, the treadmill will gradually stop by itself.
  • Page 20 (3) Manual Mode 1. How to enter Manual Mode A. After turning on the treadmill, the system will enter the normal mode of the Manual mode. B. Pressing the Mode button selects the normal mode of Manual mode, standby mode. 2.

  • Page 21: Preset Programs

    PRESET PROGRAMS The treadmill has different programs that have been designed for a variety of workouts. These programs have factory preset workout level profiles for achieving different goals. (5) Fixed program data ： me Zone Set time /20 = Each segment of the running time Options 9 10 11 12 13 14 15 16 17 18 19 20 SPEED...
  • Page 22 SPEED 10 11 11 10 10 9 10 10 11 11 10 10 11 11 8 INCLINE SPEED 10 10 9 10 10 10 9 10 10 10 8 INCLINE SPEED 10 8 10 9 INCLINE SPEED INCLINE 12 6 11 8 10 6 10 12 10 8...
  • Page 23 (6) USER PROFILE PROGRAMS: There are 3 user profile programs (U01,U02 and U03) to allow the user custom settings that differ from the 20 built-in programs. a) Setup of user programs: In the standby status, keep pressing “PROG” to select the user profile programs U01 to U03, then press “MODE”...
  • Page 24 1. Under HRC program control mode, the treadmill will start with the lowest speed and zero incline. 2. The first minute of the program will be warm-up, with user adjustable speed and incline. 3. After warm-up, the difference of hand pulse is calculated as the formula （target hand pulse vs.
  • Page 25 (9) The display range of each data ： SETTING S E T U P DISPLAY BEGIN BEGINNING RANGE RANGE VALUE TIME(MINUTE:SECOND) 0:00 15:00 5:00-99:00 0:00-99:59 SPEED(KMH/MPH) 1.0-16.0 0.0－16.0 INCLINE(LEVEL) 0-15 0-15 DISTANCE(KM) 0.00 1.00 1.00－ 99.0 0.00－99.9 CALORIE(KILOCALORIE) 50.0 20.0－990 0.0－999 (10) Safety key feature ：...

  • Page 26: Troubleshooting

    TROUBLESHOOTING Probable Cause Problem Solution A) Power is not connected successfully Connect the power cord, or check the or no power socket B) Power switch is not turned on Press “ON” the switch Press the overload protector again or C)Drivemotor has no power or destroyed No display on the screen change the drive motor...
  • Page 27 A) Speed sensor line is disconnected. Or Reconnect speed sensor line or E03-Withoutspeed sensor Sensor is damaged. change a sensor. signal. (The treadmill has a speed sensor driver.) B) Bad Sensor circuit of driver. Change adriver. E04- lift self-test to learn Change an incline motor failure.

  • Page 28: Using The Heart Rate Transmitter

    USING HEART RATE TRANSMITTER How to wear your wireless chest strap transmitter: 1. Attach the transmitter to the elastic strap using the locking parts. 2. Adjust the strap as tightly as possible as long as the strap is not too tight to remain comfortable.
  • Page 29 HEART RATE PROGRAMS The old motto, “no pain, no gain”, is a myth that has been overpowered by the benefits of exercising comfortably. A great deal of this success has been promoted by the use of heart rate monitors. With the proper use of a heart rate monitor, many people find that their usual choice of exercise intensity was either too high or too low and exercise is much more enjoyable by maintaining their heart rate in the desired benefit range.
  • Page 30 RATE OF PERCEIVED EXERTION Heart rate is important but listening to your body also has a lot of advantages. There are more variables involved in how hard you should workout than just heart rate. Your stress level, physical health, emotional health, temperature, humidity, the time of day, the last time you ate and what you ate, all contribute to the intensity at which you should workout.

  • Page 31: Parts Diagram

    TS DIAGRAM Customer Service 1-888-707-1880 Dyaco Canada Inc. 2020 Email: customerservice@dyaco.ca...

  • Page 32: Parts List

    PARTS LIST KEY NO. DESCRIPTION Q'TY IV- A BASE FRAME IV- A1 MAIN FRAME IV- A2 RUNNING DECK 1283*520*6T IV- A3 RUNNING BELT 3020*500*2.0T IV- A5 FRONT SUPPORTING TUBE IV- A6 MOTOR COVER UPPER IV- A7 MOTOR COVER LOWER IV- A8 BASE FRAME (SMALL) IV- A9 BASE FRAME (LARGE)
  • Page 33 KEY NO. DESCRIPTION Q'TY THE MIDDLE (3rd ‐15th) RUNNING IV- A46 THE SECOND (2nd) RUNNING BOARD IV- A47 IV- A48 THE END (16th) RUNNING BOARD IV- A49 DECORATION COVER (the last 16th) 52L IV- A50 DECORATION COVER (the middle 2nd IV- A51 DECORATION COVER (the middle IV- A52...
  • Page 34 KEY NO. DESCRIPTION Q'TY IV- A98 MAGNET φ31*φ19*13T IV- A99 SENSOR BLOCK L500/3PIN IV-A100 SCREW ST2.9*8 IV- A101 MOTOR CABINET IV- A102 SCREW M8*16 IV- A103 SCREW M8*12 IV- A108 SENSOR BLOCK SUPPORT IV- A113 WASHER φ8.5*φ17*2T IV- A115 SQUARE END CAP IV- A117 ELECTRIC FILTER IV- B...
  • Page 35 –KEY NO. DESCRIPTION Q'TY IV- B30 SCREW PIN IV- B31 CONSOLE TUBE COVER INNER (R) IV- B32 CONSOLE TUBE COVER OUTER (R) IV- B33 HANDLEBAR Cable(L) L400/5PIN IV- B34 HANDLEBAR Cable(R) L400/5PIN IV- B35 HANDLEBAR Cable(M) L850/5PIN IV- B36 UPRIGHT POST Cable(R) L1500/5PIN IV- B37 UPRIGHT POST Cable(L) L2000/5PIN IV- B38...

  • Page 36: General Maintenance

    GENERAL MAINTENANCE BELT ADJUSTMENTS: Tread-belt Tension Adjustment - Belt tension is not critical for most users. It is very important for joggers and runners in order to provide a smooth, steady running surface. Adjustment must be made from the right side of the rear roller in order to adjust tension with the 6 mm Allen wrench provided in the parts package.

  • Page 37: Training Guidelines

    TRAINING GUIDELINES Exercise Exercise is one of the most important factors in the overall health of an individual. Listed among its benefits are:  Increased capacity for physical work (strength endurance)  Increased cardiovascular (heart and arteries/veins) and respiratory efficiency ...
  • Page 38 WARM UP Every exercise program should start with a warmup where the body is prepared for the effort to come. It should be gentle and preferably use the muscles to be involved later. Stretching should be included in both your warmup and cool down and should be performed after 3-5 minutes of low intensity aerobic activity or callisthenic type exercise.
  • Page 39 Endurance Circuit Training Cardiovascular endurance, muscle, strength, flexibility and coordination are all necessary for maximum fitness. The principle behind circuit training is to give a person all the essentials at one time by going through your exercise program moving as fast as possible between each exercise.
  • Page 40 STRETCHING HEAD ROLLS TOE TOUCHES Rotate your head to the right for one Slowly bend forward from your count, feeling the stretch up the left waist, letting your back and side of your neck. Next rotate your shoulder relax as you stretch head back for one count, stretching toward your toes.

  • Page 41: Manufacturer's Limited Warranty

    MANUFACTURER’S LIMITED WARRANTY Dyaco Canada Inc. warrants all its treadmill parts for a period of time listed below from the date of retail sale, as determined by sale receipt. Dyaco Canada Inc.’s responsibilities include providing new or remanufactured parts, at Dyaco Canada Inc.’s option, and technical support to our independent dealers and servicing organizations.
  • Page 42 Customer Service 1-888-707-1880 Dyaco Canada Inc. 2020 Email: customerservice@dyaco.ca...
