Summary of Contents for Xterra TR6.6

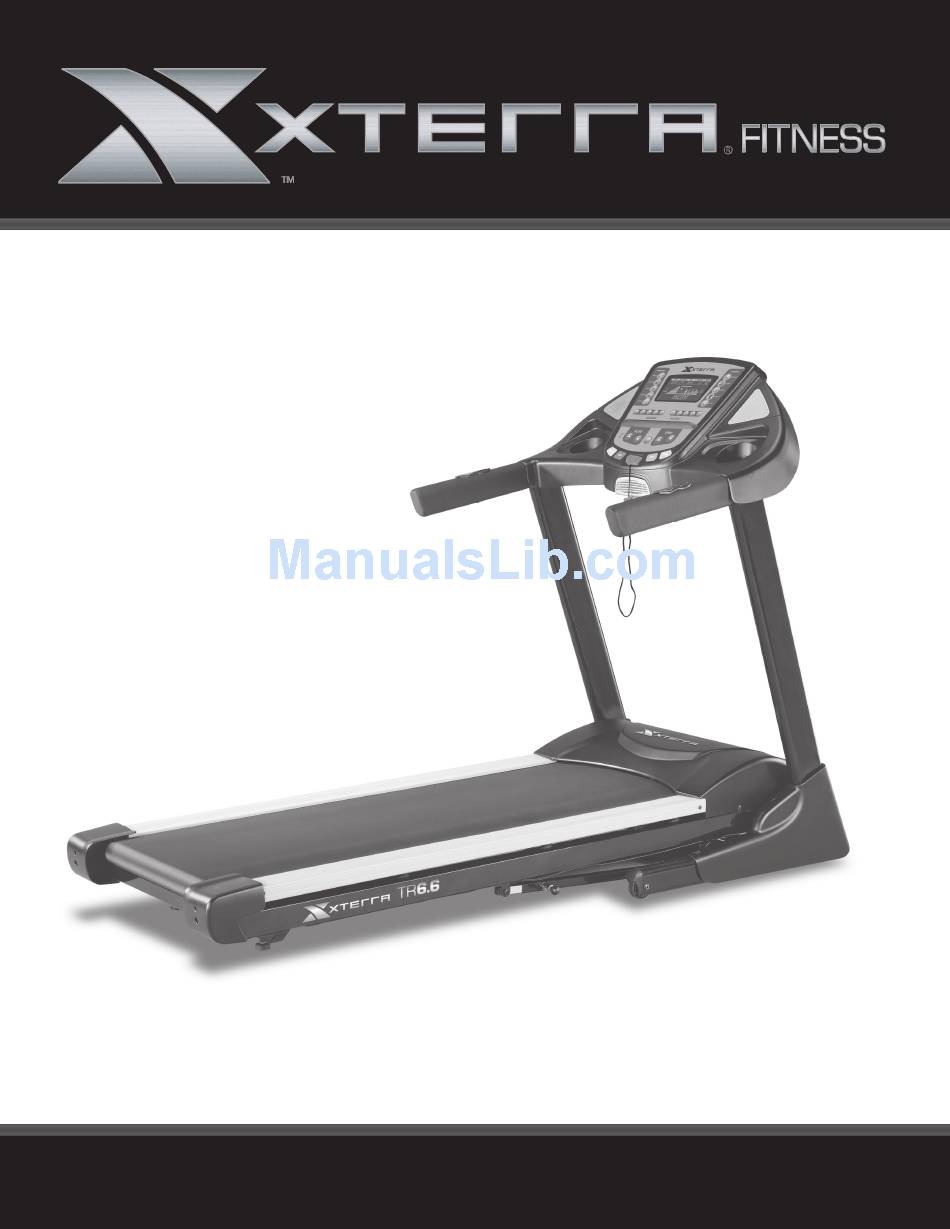

- Page 1 TR6.6 TREADMILL OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL...
-
Page 2: Table Of Contents
Table Of Contents Product Registration Important Safety Instructions Important Electrical Instructions Important Operation Instructions TR6.6 Assembly Instructions Operation of Your Console Programmable Features Heart Rate General Maintenance Manufacturer’s Limited Warranty ATTENTION THIS TREADMILL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THE APPLICATION. -
Page 3: Product Registration
Congratulations On Your New Treadmill and Welcome to the XTERRA Fitness Family! Thank you for your purchase of this quality treadmill from XTERRA Fitness. Your new treadmill has been manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available. -
Page 4: Important Safety Instructions
Quality athletic shoes are recommended to avoid leg fatigue. Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! TR6.6 Treadmill... -
Page 5: Important Electrical Instructions
Whenever the adapter is used, it must be held in place by a metal screw. TR6.6 Treadmill... -
Page 6: Important Operation Instructions
• NEVER mount or dismount the treadmill while the belt is moving. XTERRA Fitness treadmills start with at a very low speed and it is unnecessary to straddle the belt during start up. Simply standing on the belt during slow acceleration is proper after you have learned to operate the unit. -
Page 7: Hardware Step
TR6.6 Assembly Pack Checklist Hardware Step 3 #93. 5/16” x 15mm #94. 5/16” #132. M5 Button Head Socket Curved Washer Speed Nut Clips Bolt (8 pcs) (2 pcs) (4 pcs) Hardware Step 5 82. Ø8mm x 1.5T #90. 5/16” x 3/4”... -
Page 8: Tr6.6 Assembly Instructions
TR6.6 Assembly Instructions Main Base Frame 1. Remove all the parts from the carton and lay the Main Base Frame on a flat level surface. Covers & Cables 1. Slide the plastic covers (R-42 & L-43) over the Left and Right Console Mast Upright Tube. - Page 9 3. Partially tighten all six Button Head Bolts (93) that are inserted from the sides, and two Curved Washers (94) and two Button Head Bolts (93) from the front with the Combination Allen Head Wrench & Phillips Head Screw driver (96). Don’t fully tighten these until the Console is attached. TR6.6 Treadmill...
-
Page 10: Console Assembly
#90. 3/8” x 3/4” Button Head Socket Bolt (4 pcs) 1. To attach the console, insert four Washers (82) and four Button Head Socket Bolts (90) underneath the console. Tighten using the Combination Allen Wrench & Phillips Head Screw Driver (96). TR6.6 Treadmill... - Page 11 Combination Allen Wrench & Phillips Head Screwdriver (96). 2. Attach the Console Mast Covers to the Upright Tubes (42 & 43) with four Tapping Screws (88) & two Phillips Head Screws (95). Tighten using the Combination Allen Wrench & Phillips Head Screw Driver (96). TR6.6 Treadmill...
-
Page 12: Folding Instructions
*At the rear roller area to relieve pressure on the locking system. Transportation Instructions The treadmill is equipped with four transport wheels that are engaged when the treadmill is folded. After folding simply roll the treadmill away. TR6.6 Treadmill... -
Page 13: Operation Of Your Console
Operation of Your Treadmill TR6.6 Console Audio Input Large LCD Convenient water Jack for with feedback Integrated bottle holder and Speakers for customized Turbo Fan to and scrolling cargo compartment listening keep you cool message center MP3 player for phone or MP3 player... -
Page 14: Incline Feature
The Display key allows you to change views between the Incline profile, the Speed profile, and Incline + Speed. After using the Display key to completely scroll through these options, the console will automatically scroll through the options showing each option for five seconds. TR6.6 Treadmill... -
Page 15: Pulse Grip Feature
Stop, Enter and Display keys for 5 seconds; the display will show: Display mode - On. Use the Incline 5/6key or the Speed 5/6key to change the setting to Off then press Enter. TR6.6 Treadmill... - Page 16 Ascent - Work Ascent - Incline Glute Blast - Work Glute Blast - Incline Adventure - Work Adventure - Incline Xtreme - Work Xtreme - Incline Interval - Work Interval - Incline X Country - Work X Country - Incline TR6.6 Treadmill...
-
Page 17: Programmable Features
Programmable Features The TR6.6 Treadmill has six factory preset programs, three user defined programs, two heart rate programs and one manual program. To Select and Start a Preset Program 1. Press the desired program key. Press Enter to select the program. The display will prompt you through the programming or you can just press Start to begin the program with de- fault values. -
Page 18: User Programs
6. The Display will be blinking the preset top incline of the selected program (0%). Use the Incline 5/6 keys to adjust, then press Enter. You are now done programming data and may press Start to begin your workout or Enter to go back one level to change data entered in the programming phase. TR6.6 Treadmill... - Page 19 If 30 intervals is selected, you will perform each exercise once, then repeat the sequence of all 5 exercises a 2nd & 3rd time. CAUTION Exercises that require dumbbell use - Select a pair of dumbbells that you will be able to safely and effectively maneuver over the strength interval time you have chosen. TR6.6 Treadmill...
- Page 20 2. Begin with your elbows bent at 90˚ 3. Fully straighten your arms 4. Repeat this sequence for the duration of the strength interval TR6.6 Treadmill...
- Page 21 2. Tuck your upper arms into your ribcage 3. Curl the dumbbells to shoulder height by pivoting at your elbows 4. Slowly lower to the start position 5. Repeat this sequence for the duration of the strength interval TR6.6 Treadmill...
-
Page 22: Heart Rate Program Operation
** Remember that you must maintain contact with the sensors or wear the chest strap for the program to work. NOTE: It is recommended that you use the telemetric chest strap to achieve the best results with the heart rate programs. TR6.6 Treadmill... - Page 23 Whether your goal is weight loss or cardiovascular fitness, it can be achieved by training between 60% and 80% of your MHR. Con- sult your physician before participating in any exercise program. TR6.6 Treadmill...
-
Page 24: Rate Of Perceived Exertion
RPE will support this. If you are feeling tired and sluggish, it is because your body needs a break. In this condition, your pace will feel harder. Again, this will show up in your RPE and you will train at the proper level for that day. TR6.6 Treadmill... - Page 25 5. Some people have problems with the transmitter picking up a signal from their skin. If you have problems try wearing the transmitter upside down. Normally the transmitter will be oriented so the XTERRA Fitness logo is right side up.
-
Page 26: General Maintenance
- located under the motor cover - that connects the motor to the front roller. If that belt is loose it feels similar to the walking belt being loose. Tightening the motor belt should be done by a trained service person. TR6.6 Treadmill... -
Page 27: Treadbelt Tracking Adjustment
Proper belt tracking is an owner responsibility common with all treadmills. ATTENTION Damage to the running belt resulting from improper tracking / tension adjustments is not covered under the XTERRA Fitness warranty. TR6.6 Treadmill... - Page 28 Drag the garment the length of the entire belt 1-2 times. Remove the garment. Do not lubricate with anything other than XTERRA Fitness approved lubricant. Your treadmill comes with one tube of “Lube” and extra tubes can be ordered directly from www.xterrafitness.com.
- Page 29 If an extension cord is required it should be speed on display as short as possible and heavy duty 16 gauge minimum. Low voltage. Contact an electrician or XTERRA Fitness. A minimum of 110 volt AC current is required. Tread-belt stops quickly/suddenly High belt/deck friction.
-
Page 30: Error Messages
The display will ask for top incline setting, enter 15. • Press Start to begin calibration. This is an automatic process, the belt will move and change speeds without warning. Be Careful! When calibration is done, the console will return to the start-up screen TR6.6 Treadmill... -
Page 31: Manufacturer's Limited Warranty
Effective August 1, 2012 - TREADMILL LIMITED WARRANTY XTERRA Fitness Inc. warrants all its home use treadmill parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’s responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our independent... - Page 32 3000 Nestle Road Jonesboro, AR 72401 - Phone:870-336-4286 - Fax:870-935-7611 www.xterrafitness.com ©2013 All RIghts Reserved. TR6.6 Owner’s Manual...
