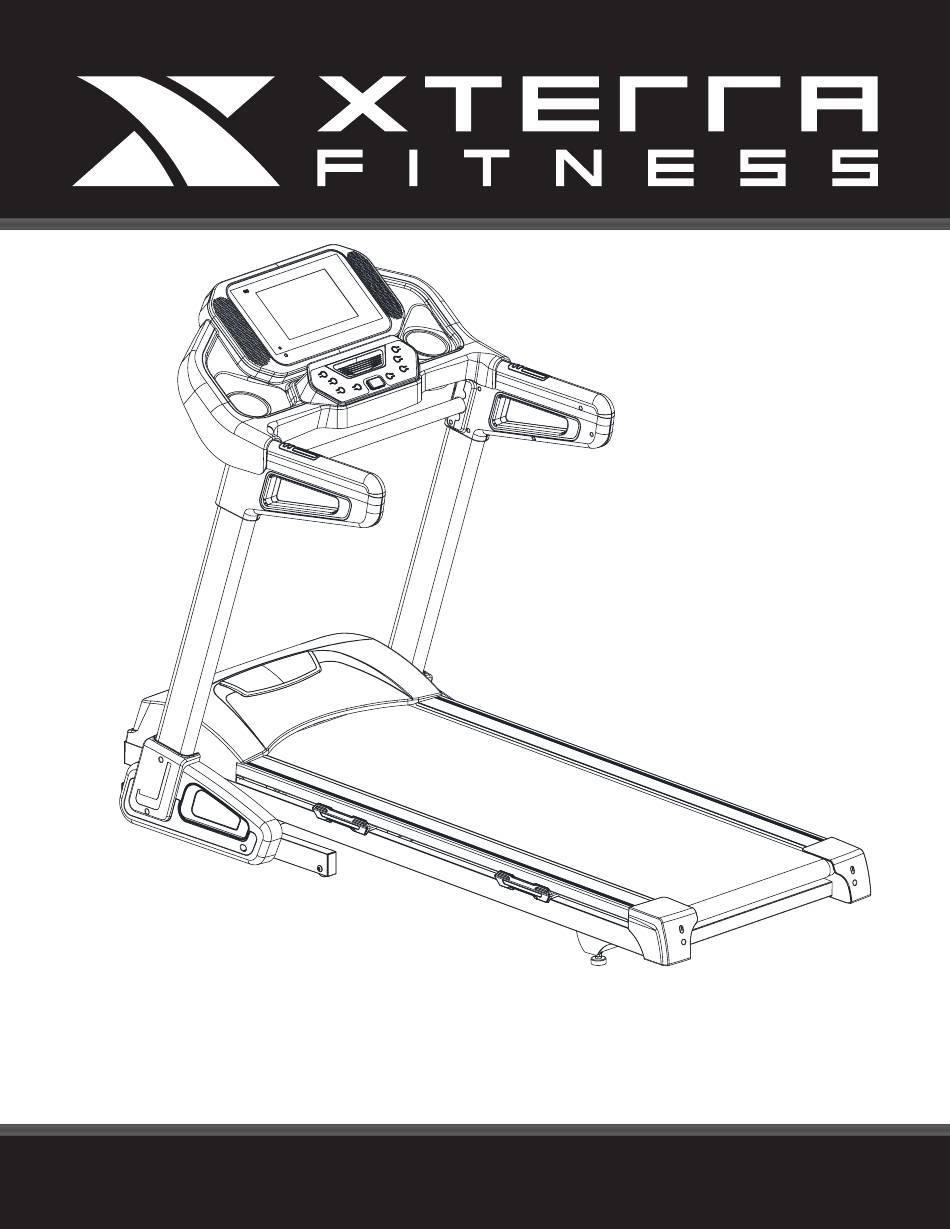

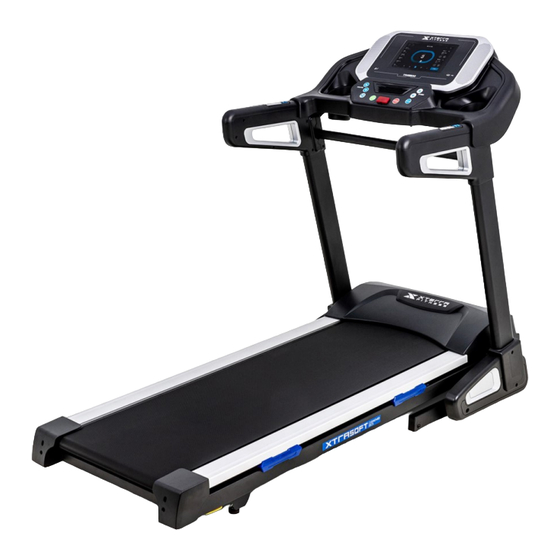

- Page 1 TRX5500 Treadmill OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL...
-
Page 2: Table Of Contents
Table Of Contents Product Registration Important Safety Instructions Important Electrical Instructions TRX5500 Assembly Instructions Operation of Your Console Charging devices using the USB port Using a Chest Strap Treadmill Adjustments XTERRA APP Exploded View Parts List Manufacturer’s Limited Warranty ATTENTION THIS TREADMILL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THIS APPLICATION. -
Page 3: Product Registration
Thank you for your purchase of this quality Treadmill from XTERRA Fitness. Your new Treadmill has been manufactured by one of the leading fitness manufacturers in the world. XTERRA Fitness will do all we can to make your ownership experience as pleasant as possible for many years to come. -
Page 4: Important Safety Instructions
User Weight Limit: 350 lbs. Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! TRX5500 Treadmill... -
Page 5: Important Electrical Instructions
Whenever the adapter is used, it must be held in place by a metal screw. TRX5500 Treadmill... - Page 6 If the end of the Velcro strap (that you need to grab to remove it) happens to be under the treadmill deck, reach under the deck to grab it, but do not tilt the treadmill up to gain access to the strap end. TRX5500 Treadmill...
- Page 7 Remove only the hardware for the step you are currently assembling to avoid confusion and mix ups. Pull the carton over the treadmill parts and lay it on a level surface. ASSEMBLY PACK CHECKLIST TRX5500 Assembly Pack Checklist # 74. 3.5 × 12m/m_ # 80. Ø8 × 1.5T_ #99. 5/16" × 1/2"_ #100.
-
Page 8: Trx5500 Assembly Instructions
TRX5500 Assembly Instructions Remove Deck From Box 1. Take the treadmill deck out of the box and place it on level Hardware Step 2 and clean ground. #90. 13mm Wrench #99. 5/16”x1/2” Hex Head Bolts (8pcs) Left and Right Uprights #100. - Page 9 TRX5500 Assembly Instructions Console Attachment Hardware Step 3 #102. Combination M5 Allen Wrench & Phillips Head Screw Driver #125. 5/16” × 3/4” Button Head Socket Bolts (4pcs) #80. Ø 8 × 1.5T Split Washers (4pcs) 1. Connect the Computer Cable (Middle) (No.54) and Computer Cable (Upper) (No.53).
- Page 10 TRX5500 Assembly Instructions Crossbar Installation Hardware Step 4 #102. Combination M5 Allen Wrench & Phillips Head Screw Driver #125. 5/16” × 3/4” Button Head Socket Bolts (4pcs) 1. Install Handrail Support (No.9) between Left and Right Uprights (No.4/5) and use Combination M5 Allen Wrench &...
- Page 11 TRX5500 Assembly Instructions Frame Base Covers Hardware Step 6 #102. Combination M5 Allen Wrench & Phillips Head Screw Driver #126. M5 × 15mm Phillips Head Screws (6pcs) 1. Use Combination M5 Allen Wrench & Phillips Head Screw Driver (No.102) to tighten 6 Phillips Head Screws (No.126) to secure right and left Frame Base Covers...
- Page 12 TRX5500 Assembly Instructions Finishing Assembly Note: Once your treadmill is fully assembled, be sure to check the belt lubrication before initial use by completing the following steps: 1. Ensure that your machine is off, and that the power cord is unplugged to minimize risk of injury.
-
Page 13: Operation Of Your Console
Operation of Your Console TRX5500 Console Power Up Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch located at the front of the treadmill below the motor hood. Ensure that the Safety Key is installed, as the treadmill will not power on without it. - Page 14 The pulse value will be shown on the screen continuously. You may use the hand pulse sensors while in Heart Rate Control. It will also pick up wireless heart rate transmitters that are Polar and Bluetooth compatible. TRX5500 Treadmill...
- Page 15 Use scales or arrows to adjust your age and weight. Start Workout button starts the workout immediately. Pair HR Adjust Activity Current Wifi device volume on/off Log out Overview User Settings Workout Mode Workout Screen Settings Profiles Internet Homescreen Programs Mirroring & Apps TRX5500 Treadmill...
- Page 16 Press CHOOSE to select and adjust a program. MANUAL program requires a time frame set before starting. Use the scale or arrows to adjust target time. Speed and incline are adjusted manually while running. Press START to begin workout. TRX5500 Treadmill...
- Page 17 Press START to begin workout. Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline TRX5500 Treadmill...
- Page 18 Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline TRX5500 Treadmill...
- Page 19 You can manage saved programs in TEMPLATES. To delete a template, tap on it, then press Delete in the top right corner. A maximum of 12 template programs can be stored. A Template program is only available to a user who created it. TRX5500 Treadmill...
- Page 20 Any program can be labeled as FAVORITE. Favorite programs appear on the Homescreen, so you can access them anytime you want. TRX5500 Treadmill...
- Page 21 XTERRA app. One XTERRA app account cannot be linked to multiple profiles on one machine. If you do not have a XTERRA account, press the I DON’T button to continue and build one by filling in the form.
- Page 22 To display various content from your smartphones or tablets on the machine console, open this section and follow the instructions provided, depending on whether you use an iOS or an Android device. Once the mirroring has started, press to enter full screen mode. Press to exit full screen mode. TRX5500 Treadmill...
- Page 23 Press Update to upload and install the latest version. Be sure to be connected to the Internet. • Tap on DISPLAY to adjust the brightness of the screen. • Tap on BLUETOOTH to pair with the Bluetooth devices including the Bluetooth type of chest straps, earphones, or speakers. TRX5500 Treadmill...
- Page 24 TRACK VIEW helps to imagine yourself making laps on a 1/4 mile track and shows your progress depending on distance covered. • INTERNET and SCREEN MIRRORING work the same way as in non-workout mode. To pause or finish the workout, press Stop on the bottom right corner. Goal View: Profile View: TRX5500 Treadmill...
- Page 25 Done to go back to the Home screen. You can also save the completed program as a template from here, if you press Save as button. The workout record will appear in History tab of the Profile section. TRX5500 Treadmill...
-
Page 26: Charging Devices Using The Usb Port
**The USB port on the console is capable of powering USB devices. It provides up to 5Vdc/1.0 amp of power and meets USB 2.0 regulations. You will not be able to save your workout data to a USB via this port; it is used for charging purposes only. TRX5500 Treadmill... -
Page 27: Using A Chest Strap
5. Some people have problems with the transmitter picking up a signal from their skin. If you have problems try wearing the transmitter upside down. Normally the transmitter will be oriented so the XTERRA Fitness logo is right side up. - Page 28 MHR on a schedule approved by your physician. Consult your physician before participating in any exercise program. With this XTERRA Fitness treadmill you may use the heart rate monitor feature without using the Heart Rate program. However, when using the heart rate monitor feature in conjunction with the Heart Rate programs, the machine will automatically adjust speed or incline to maintain the desired heart rate.
- Page 29 In this condition, your pace will feel difficult. Again, this will show up in your RPE and you will train at the proper level for that day. TRX5500 Treadmill...
-
Page 30: Treadmill Adjustments
ATTENTION Damage to the running belt resulting from improper tracking / tension adjustments is not covered under the XTERRA Fitness warranty. General Cleaning Dirt, dust, and hair can block air inlets and accumulate on the running belt. Please vacuum underneath your treadmill on a monthly basis to prevent excess build-up of dirt that can get sucked up and get into the inner workings under the motor cover. - Page 31 Do not lubricate with anything other than XTERRA Fitness approved lubricant. Your treadmill comes with one tube of treadmill belt lubricant. Extra tubes can be ordered directly from: www.xterrafitness.com, or by calling our customer service department at (870)336-4286.
- Page 32 5. Using both hands, drag the cleaning cloth up and down the length of the treadmill base 1-2 times. 6. For excessive dirt accumulation, rotate the belt halfway, and repeat step 5. Continue until your cleaning cloth is no longer picking up any dirt. 7. Remove cleaning cloth from treadmill before plugging back in. TRX5500 Treadmill...
-
Page 33: Xterra App
The Xterra App also allows you to sync your workout data with one of many fitness cloud sites we support with more to come. Syncing the App with your exercise machine: 1. - Page 34 User Notes: TRX5500 Treadmill...
-
Page 35: Exploded View
TRX5500 Treadmill... -
Page 36: Parts List
PARTS LIST TRX5500 Treadmill... - Page 37 TRX5500 Treadmill...
- Page 38 TRX5500 Treadmill...
- Page 39 TRX5500 Treadmill...
- Page 40 TRX5500 Treadmill...
-
Page 41: Manufacturer's Limited Warranty
Effective March 13, 2021- Treadmill LIMITED WARRANTY XTERRA Fitness Inc. warrants all its home use treadmill parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’s responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our independent... - Page 42 TRX5500 Treadmill...
- Page 43 TRX5500 Treadmill...
- Page 44 3000 Nestle Road Jonesboro, AR 72401 - Phone:870-336-4286 - Fax:870-935-7611 www.xterrafitness.com ©2021 All Rights Reserved. TRX5500 Owner’s Manual...
Need help?
Do you have a question about the TRX5500 and is the answer not in the manual?
Questions and answers
Hi, today I tried to power on my TRX 5500. It stayed on the logo screen longer than usual and then displayed the Android system failure message. I searched online and checked the instruction manual but couldn’t find anything helpful. How can I fix this or navigate the buttons on the screen? None of the built-in ones work, and neither does connecting an external mouse or keyboard.
The Xterra TRX5500 requires at least iOS 7 or Android 4.4 for the Xterra App to operate properly. If you are experiencing an Android system failure, try the following steps:
1. Check Compatibility – Ensure your device meets the minimum requirement of Android 4.4 or higher.
2. Restart the Device – Power off and restart your Android device.
3. Update the Software – Check for and install any available system updates.
4. Reinstall the App – Uninstall and reinstall the Xterra App.
5. Check Connections – Ensure all cables are properly connected if using the treadmill’s console.
6. Reset the Treadmill – If applicable, perform a factory reset on the treadmill.
7. Contact Support – If the issue persists, reach out to Xterra customer support.
These steps should help resolve the Android system failure on your Xterra TRX5500.
This answer is automatically generated

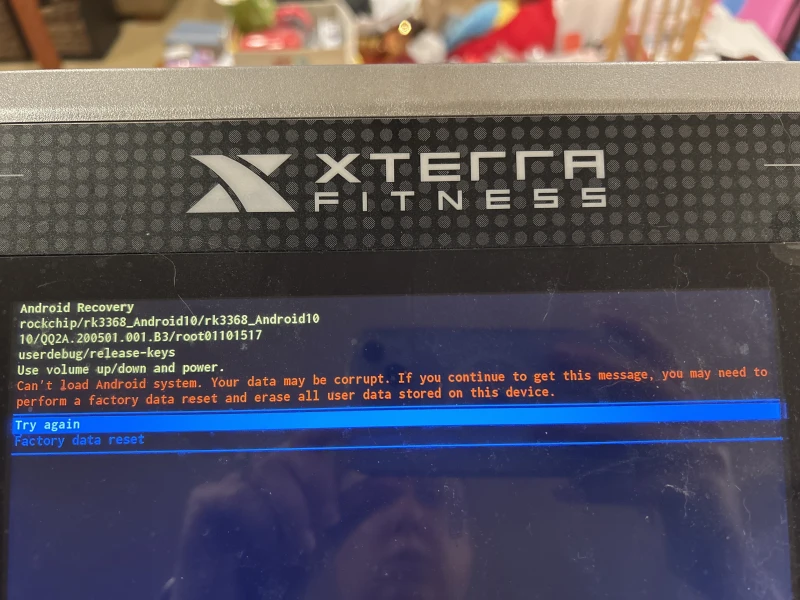

Hi, we are receiving the attached android recovery error on our trx5500 treadmill. We would like to perform a factory data reset but the error screen is locked and none of our buttons work. We have tried unplugging and turning on/off the machine. At this point, our treadmill is completely unusable. Any guidance is appreciated.
