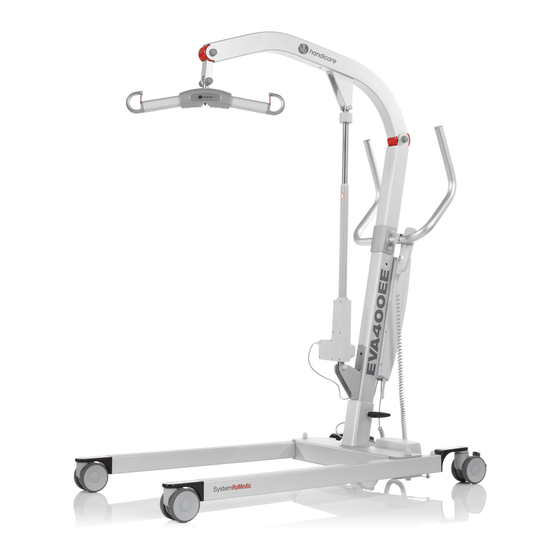

Handicare SystemRoMedic Eva400 Series Manual
  1. Manuals
  2. Brands
  3. Handicare Manuals
  4. Medical Equipment
  5. Eva400
  6. Manual

Handicare SystemRoMedic Eva400 Series Manual

Hide thumbs Also See for SystemRoMedic Eva400 Series:
Table of Contents

Advertisement

Quick Links

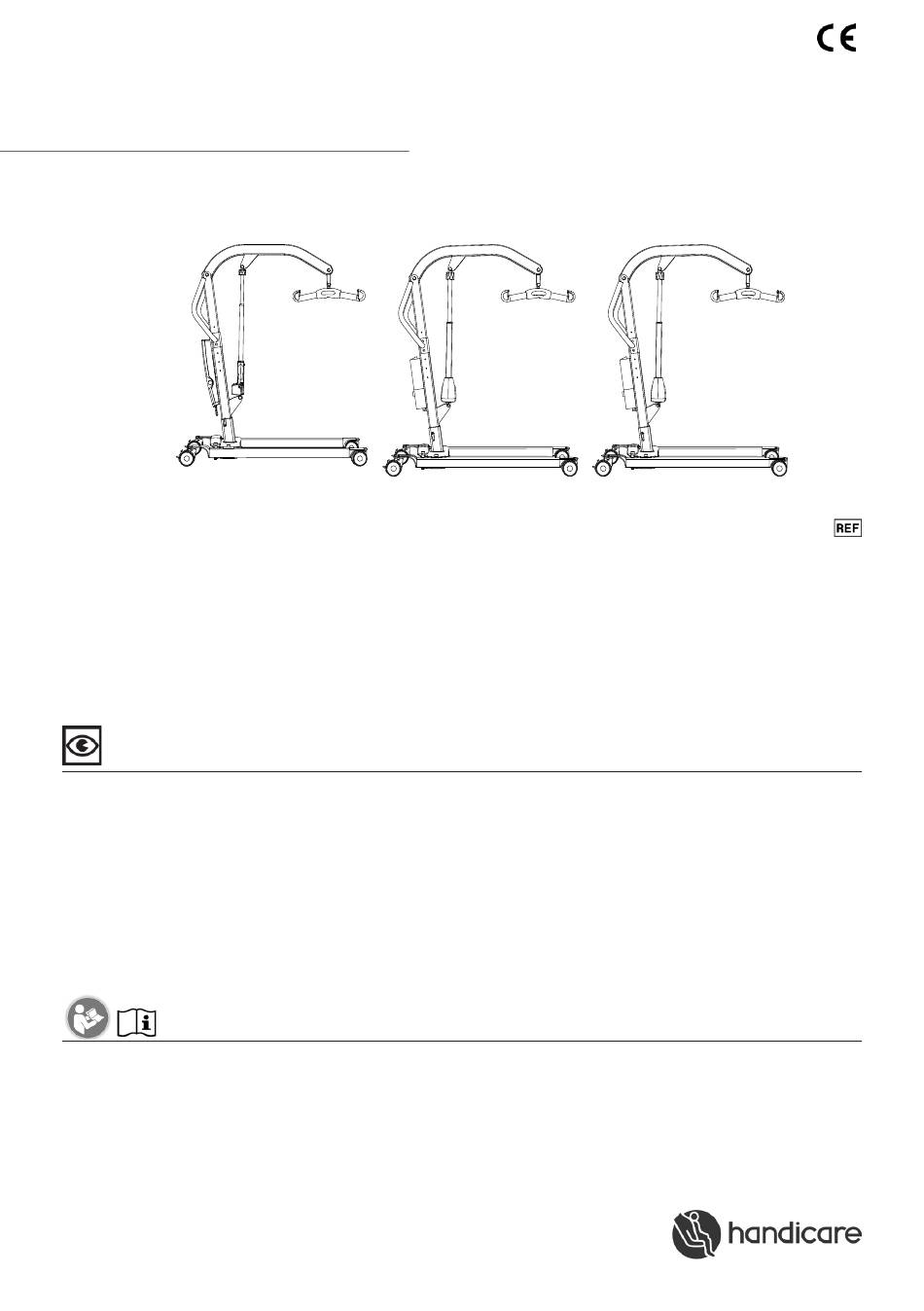

Eva400/Eva450/Eva600
SystemRoMedic
TM
Valid from serial number:
610122000
61BC12000
610233000
610321000
610610500
J610610185
611010500
611112000
611314000
Safety information
Visual inspection
Inspect lift functions regularly. Check to ensure that material is free from damage.
Before use
Make certain the lift is properly assembled.
Check sling bar connection and safety latch function.
Check lifting function and base-width adjustment.
Check to ensure that the quick-connecting locking pin for the actuator is correctly installed.
Always read the user manual
Always read the user manuals for all assistive devices used during a transfer.
Keep the user manual where it is accessible to users of the product.
Always make sure that you have the right version of the user manual.
The most recent editions of user manuals are available for downloading from our website, www.handicare.com.
Under no circumstances may the lift be used by persons who have not received instruction in the operation of the lift.
It is strongly prohibited to modify the original product.
Manual no: 781 En Rev 6
Eva400EE/EM
Eva450EE/EM
Eva450EM, low legs: 60100007
Service manual - English
SWL: 180 kg/400 lbs
205 kg/450 lbs
270 kg/600 lbs
Eva600EE
Eva400EE: 60100001
Eva400EM: 60400011
Eva450EE: 60100002
Eva450EE, low legs: 60100006
Eva600EE: 60100003
Eva600EE, low legs: 60100010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SystemRoMedic Eva400 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Handicare SystemRoMedic Eva400 Series

Summary of Contents for Handicare SystemRoMedic Eva400 Series

  • Page 1 Always make sure that you have the right version of the user manual. The most recent editions of user manuals are available for downloading from our website, www.handicare.com. Under no circumstances may the lift be used by persons who have not received instruction in the operation of the lift.

  • Page 2: Table Of Contents

    Table of contents Assembly Final inspection ..................Using the product ................Important information Trouble-shooting ..................Spare parts ..................5-10 Changing Spare parts ................9-10 Exploded view ................11-17 Periodic inspection - protocol ..........18-22 Description of periodic inspektion ............20 Periodic inspection - instruction ............21-22 Maintenance ..................23 Symbols...

  • Page 3: Final Inspection

    Final inspection Check to ensure that no parts have been left in the packaging. Inspect the lift for signs of wear and damage. Check all four castor wheels and castor wheel locks. Check all connections and fixtures including screws and bolts. Eva450/Eva600 Eva400 Check the emergency stop function by activating the emergency stop button, and...

  • Page 4: Using The Product

    • To ensure optimal function, the lift must be inspected regularly. See section on Maintenance. • Warranty applies only if repairs or alterations are made to the product by personnel who are authorized by Handicare. • Using lifting accessories other than those approved can entail a risk.

  • Page 5: Spare Parts

    Spare parts Description of parts Eva400EE/EM, Eva450EE/EM, Eva600EE F1, F2 G1, G2 C1, C2 Eva400 SystemRoMedic U S E R M A N U A L...
  • Page 6 Spare part list Article Product Unit Components Images 80100002 Rear castor 100 mm 1 pce 1 x Rear castor 1 x Locking nut M10 80100001 Front castor 100 mm 1 pce 1 x Front castor 1 x Locking nut M10 80100126 Front castor (low legs) 1 pce...
  • Page 7 Spare part list Article Product Unit Components Images 80100032 Lever 1 set 2 x Lever 1 x Threaded rod M10x95 2 x Washer 10,5x20x2 80100044 Hand control 4-buttons 1 pce 1 x Hand control (450/600) 80100062 Hand control 4-buttons 1 pce 1 x Hand control Linak CBJH (400EE) 80100063...
  • Page 8 Spare part list Article Product Unit Components Images 80100051 Control box CBJ (400) 1 pce 1 x Control box 0,5 x Cardboard 80100042 Control box CBJ 1 pce 1 x Control box (450/600) 80100153 Control box CBJC 1 pce 1 x Control box (450) 80100154 Control box CBJC...

  • Page 9: Changing Spare Parts

    Changing spare parts 80100001, -02 Front/rear castor 100 mm Using an Allen key, remove the screw that holds the castor in place. Replace the castor, apply Loctite 2701 or similar, and then secure the castor with the screw. 80100126 Front castor EML Using an Allen key, remove the screw that holds the castor in place.
  • Page 10 Changing spare parts 80100051, -042, -153, -154 Control box Activate the emergency stop, and then disconnect the actuator and hand control. Remove the battery, loosen the two long screws and remove the control box. Install the new control box and secure it with the two crews. Replace the battery, and then connect the actuator and hand control.

  • Page 11: Exploded View

    Exploded view - chassies Eva400EE/Eva450EE SystemRoMedic U S E R M A N U A L...
  • Page 12 Exploded view- chassis Eva400EM/Eva450EM U S E R M A N U A L SystemRoMedic...
  • Page 13 Exploded view- chassis Eva600EE SystemRoMedic U S E R M A N U A L...
  • Page 14 Exploded view - mast and boom Eva400EE U S E R M A N U A L SystemRoMedic...
  • Page 15 Exploded view - mast and boom Eva400EM SystemRoMedic U S E R M A N U A L...
  • Page 16 Exploded view - mast and boom Eva450EM U S E R M A N U A L SystemRoMedic...
  • Page 17 Exploded view - mast and boom Eva450EE/Eva600EE SystemRoMedic U S E R M A N U A L...
  • Page 18 Exploded view- SlingBar Components-SlingBar Pos. Product Unit Tube Centercasting Supportpin Slinghook Hangerstraplock Screw for slinghook and tube Plasticbushing for supportpin Nutbar Retainingring Screw for tube and center casting Screw for hangerstraplock U S E R M A N U A L SystemRoMedic...

  • Page 19: Periodic Inspection - Protocol

    Periodic inspection - protocol Lift type: Contract no: s/n: Name: Version: Address: Prod. year: Sling bar id.: Situation of use: Home Institution Other Comments: 1. Attention 2. Correct 3. Do not use! Base: Check for visible damage Check: Castor Brakes Legspreading Mast: Inspect the mast...

  • Page 20: Description Of Periodic Inspektion

    Description for periodic inspection REVI REV. DESCRIPTION Eva450EML Eva450EEL Eva600EEL Eva400EM/Eva450EM U S E R M A N U A L SystemRoMedic NAME DATE...

  • Page 21: Periodic Inspection - Instruction

    Periodic inspection - instruction Check the base -Check the base for visible damage to the surfaces, finish, etc. Castors -Roll the lift unloaded on the floor, check that the castors roll and turn freely. -Check that the castor fasteners are tight. Brakes -Lock the brakes.
  • Page 22 Periodic inspection - instruction Check battery and electrical cable. -Verify that all cables are properly inserted. Controlbox -Verify that all functions on the control panel are working Handcontrol -Verify that all functions on the handcontrol are working. Emergency stop -Verify that the lift does not operate when emergency stop is pressed in. Emergency lowering -Verify the function of emergency lowering.

  • Page 23: Maintenance

    +50 °C -10 °C 700 hPa Service agreements Handicare offers the possibility of service agreements for maintenance and regular testing of your mobile lift. Contact your local Handicare representative. SystemRoMedic U S E R M A N U A L...

  • Page 24: Symbols

    Symbols Eva400 Eva450/Eva600 Read user manual May not be discarded in domestic waste The product complies with the requirements of the Medical Devices Directive 93/42/EEC. Type B, according to the degree of protection against electric shock. The device is intended for indoor use. Class lI equipment Conforms to ISO 10535:2006 with ANSI/AAMI ES 60601- 1:2005 and is certified to ISO 10535:2006 with CSA-C22.2...

  • Page 25: Technical Information

    Technical Information Eva400 Eva600 Eva450 Lifting speed 34 mm/s without load. Batteries Two 12V, 2.9 Ah valve-regulated, sealed, lead accumulator (gel-type batteries) Internal charger Included cable. Max. 400mA External charger Linak CH01 (9000368) Mains voltage 100-240VAC (50/60 Hz). Max. 400mA Motor (mast): DC 24V, 5 A.

  • Page 26: Dimensions

    Dimensions Eva400 All dimensions are in mm/inch Tolerance +/- 5 mm/ 0.2” 410/16.1 220/8.7 450/17.7 REVISION HISTORY REV. DESCRIPTION DATE APPROVED 550/21.6 880/34.6 1310/51.5 D is movement in forward direction * can be 50 or 100 mm lower 270/10.6 depending on the placement of the mast in the base socket ** can be 50 or 100 mm higher depending on the placement of the...
  • Page 27 Dimensions Eva450 All dimensions are in mm/inch Tolerance +/- 5 mm/ 0.2” 410/16.1 220/8.7 450/17.7 REVISION HISTORY REV. DESCRIPTION DATE APPROVED 550/21.6 880/34.6 1310/51.5 D is movement in forward direction * can be 50 or 100 mm lower 270/10.6 depending on the placement of the mast in the base socket ** can be 50 or 100 mm higher depending on the placement of the...
  • Page 28 Dimensions Eva600 All dimensions are in mm/inch Tolerance +/- 5 mm/ 0.2” 510/20.1 320/12.6 550/21.6 550/21.6 980/38.5 1410 /55.5 D is movement in forward direction * can be 50 or 100 mm lower depending on the placement of the mast in the base socket ** can be 50 or 100 mm higher depending on the placement of the mast in the base socket...
  • Page 29 Dimensions Eva450 Low legs All dimensions are in mm/inch Tolerance +/- 5 mm/ 0.2” 410/16.1 220/8.6 470/18.5 REVISION HISTORY REV. DESCRIPTION DATE APPROVED 550/21.6 875/34.4 1303/51.3 D is movement in forward direction * can be 50 or 100 mm lower 270/10.6 depending on the placement of the mast in the base socket...
  • Page 30 Dimensions Eva600 Low legs All dimensions are in mm/inch Tolerance +/- 5 mm/ 0.2” 510/20.1 320/12.6 570/22.4 REVISION HISTORY REV. DESCRIPTION DATE APPROVED 550/21.6 975/38.3 1403/55.5 D is movement in forward direction * can be 50 or 100 mm lower depending on the placement of the mast in the base socket ** can be 50 or 100 mm higher...
  • Page 31 SystemRoMedic U S E R M A N U A L...
  • Page 32 Please contact your local Handicare and SystemRoMedic™ representative. A complete list of all our partners with their contact details can be found on our website; www.handicare.com. Handicare offers solutions and support to increase the independence of disabled or elderly people as well as to improve the convenience of those who are caring for them.
