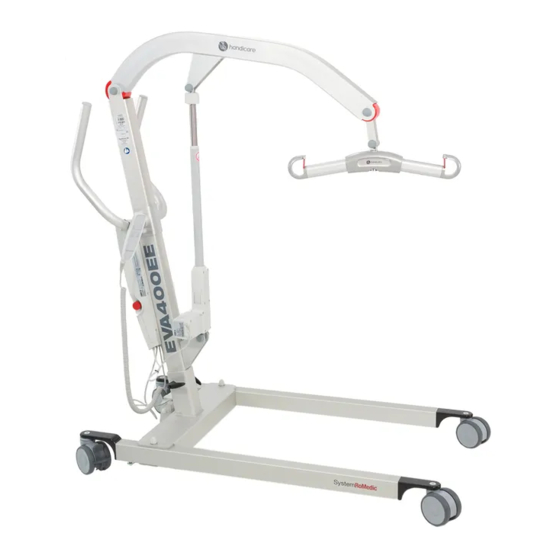

Handicare SystemRoMedic Eva400 User Manual

Hide thumbs Also See for SystemRoMedic Eva400:

Instructions for use manual (140 pages)

Manual (32 pages)

page of 20

/ 20
Bookmarks

Quick Links

Download this manual

Eva400/Eva450/Eva600

SystemRoMedic

Manual nr: 789 Rev 13

SWL: 180 kg / 400 lbs

SWL: 205 kg / 450 Ibs

SWL: 270 kg / 600 lbs

User manual – English

Bruksanvisning – Svenska

Brukermanual – Norsk

Brugsvejledning – Dansk

Käyttöohje – Suomi

Gebrauchsanweisung – Deutsch

Handleiding – Nederlands

Manuel utilisateur – Français

Manuale utente – Italiano

Manual de usuario – Español

Eva400EE: 60100001

Eva400EM: 60400011

Eva450EE: 60100002

Eva450EE, low legs: 60100006

Eva450EM, low legs: 60100007

Eva600EE: 60100003

Eva600EE, low legs: 60100010

Need help?

Do you have a question about the SystemRoMedic Eva400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Handicare SystemRoMedic Eva400

Page 1 Eva400/Eva450/Eva600 User manual – English SystemRoMedic Bruksanvisning – Svenska Brukermanual – Norsk Brugsvejledning – Dansk Käyttöohje – Suomi Gebrauchsanweisung – Deutsch Handleiding – Nederlands Manuel utilisateur – Français Manuale utente – Italiano Manual de usuario – Español Eva400EE: 60100001 Eva400EM: 60400011 Eva450EE: 60100002 Eva450EE, low legs: 60100006 Eva450EM, low legs: 60100007...
Page 2 Table of contents English ...................3-14 Svenska ..................15-26 Norsk ....................27-38 Dansk ...................39-50 Suomi ...................51-62 Deutsch ..................63-74 Nederlands ................75-86 Français ..................87-98 Italiano ..................99-110 Español ................... 111-122 Dimensions Eva400/Eva450 ..........123 Dimensions Eva600 ..............124 DimensionsEva450/600 with low legs ........125 Serial number ................126 U S E R M A N U A L SystemRoMedic...
Page 3 Always make sure that you have the right version of the user manual. The most recent editions of user manuals are available for downloading from our website, www.handicare.com. Under no circumstances may the lift be used by persons who have not received instruction in the operation of the lift.
Page 4 Assembly Check to ensure that all components are included Mast with lift arm, lift motor, sling bar, control box and battery. Undercarriage with base-width adjustment motor and locking handle. Hand control and cord. Instructions, charging cable and power supply cord for charging. Insert the mast onto the base.
Page 5 Final inspection Check to ensure that no parts have been left in the packaging. Inspect the lift for signs of wear and damage. Check all four castor wheels and castor wheel locks. Check all connections and fixtures including screws and bolts. Eva450/Eva600 Eva400 Check the emergency stop function by activating the emergency stop button, and...
Page 6 It is always the lowest maximum load alowed indicated for the respective products on the system that applies for the entire system. Always check the markings on all products in the unit and contact Handicare with any questions.
Page 7 Eva450/Eva600 Charging batteries A tone sounding when using the lift indicates that the battery need recharging. Charge the lift after use to ensure that the battery is always fully charged. Lock the castor wheels when charging the battery. Eva450/Eva600 1. Connect the charging cable to a power outlet and in the connection for charger cable. The symbol for charging is shown on the display.
Page 8 Service information read-out Basic service information can be read out on the display. To get the service information on the display please press the lifting arm up button for half a second. The information will be shown for ½ minute or until other buttons are activated. •...
Page 9 Emergency stop Eva400 Eva450/Eva600 To activate the emergency stop Press the red emergency stop button on the control box. Resetting Turn the button in the direction of the arrows until the button pops out. To prevent battery discharge, we recommend that the emergency-stop button is pressed in when the lift is not in use.
Page 10 Trouble shooting If the lift or base-width adjustment cannot be activated, check the following: - That the emergency stop button is not pressed in. - That all cables are properly and securely connected. Pull out the contact and plug it in again firmly. - That battery charging is not in progress.
Page 11 Accessories Lifting slings Handicare’s SystemRoMedic™ line includes a wide range of functional and comfortable, high-quality lifting slings that are adapted for all types of lifting and for users with different needs. The lifting slings are available in several materials and in sizes ranging from XXS to XXL.
Page 12 +50 °C -10 °C 700 hPa Service agreements Handicare offers the possibility of service agreements for maintenance and regular testing of your mobile lift. Contact your local Handicare representative. U S E R M A N U A L SystemRoMedic...
Page 13 Symbols Eva400 Eva450/Eva600 Read user manual May not be discarded in domestic waste The product complies with the requirements of the Medical Devices Directive 93/42/EEC. Type B, according to the degree of protection against electric shock. The device is intended for indoor use. Class lI equipment Conforms to ISO 10535:2006 with ANSI/AAMI ES 60601- 1:2005 and is certified to ISO 10535:2006 with CSA-C22.2...
Page 14 Technical Information Eva400 Eva600 Eva450 Lifting speed 34 mm/s without load. Batteries Two 12V, 2.9 Ah valve-regulated, sealed, lead accumulator (gel-type batteries) Internal charger External: Linak CH01 Internal: Included cable. Max. 400mA (9000368) Mains voltage 100-240VAC (50/60 Hz). Max. 400mA Motor (mast) DC 24V, 5 A.
Page 15 Dimensions Eva400/450 All dimensions are in mm/inch Tolerance +/- 5 mm/ 0.2” 410/16.1 220/8.7 450/17.7 REVISION HISTORY REV. DESCRIPTION DATE APPROVED 550/21.6 880/34.6 1310/51.1 D is movement in forward direction * can be 50 or 100 mm lower 270/10.6 depending on the placement of the mast in the base socket ** can be 50 or 100 mm higher depending on the placement of the...
Page 16 Dimensions Eva600 All dimensions are in mm/inch Tolerance +/- 5 mm/ 0.2” 510/20.1 320/12.6 550/21.6 550/21.6 980/38.5 1410 /55.5 D is movement in forward direction * can be 50 or 100 mm lower depending on the placement of the mast in the base socket ** can be 50 or 100 mm higher depending on the placement of the mast in the base socket...
Page 17 Dimensions Eva450 Low legs All dimensions are in mm/inch Tolerance +/- 5 mm/ 0.2” 410/16.1 220/8.6 470/18.5 REVISION HISTORY REV. DESCRIPTION DATE APPROVED 550/21.6 875/34.4 1303/51.3 D is movement in forward direction * can be 50 or 100 mm lower 270/10.6 depending on the placement of the mast in the base socket...
Page 18 Dimensions Eva600 Low legs All dimensions are in mm/inch Tolerance +/- 5 mm/ 0.2” 510/20.1 320/12.6 570/22.4 REVISION HISTORY REV. DESCRIPTION DATE APPROVED 550/21.6 975/38.3 1403/55.5 D is movement in forward direction * can be 50 or 100 mm lower depending on the placement of the mast in the base socket ** can be 50 or 100 mm higher...
Page 19 Serial number SystemRoMedic U S E R M A N U A L...
Page 20 Please contact your local Handicare and SystemRoMedic™ representative. A complete list of all our partners with their contact details can be found on our website; www.handicare.com. Handicare offers solutions and support to increase the independence of disabled or elderly people as well as to improve the convenience of those who are caring for them.
