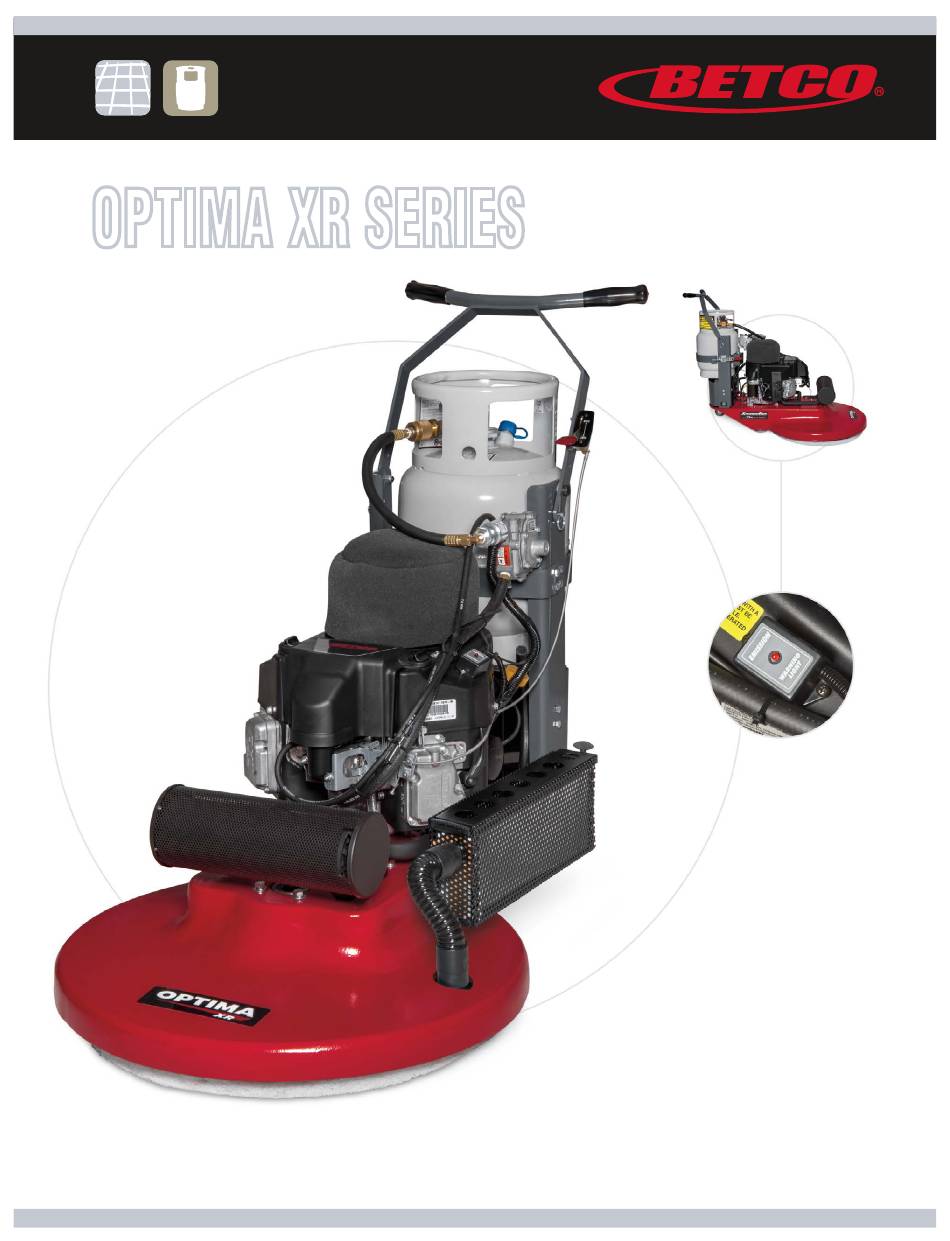

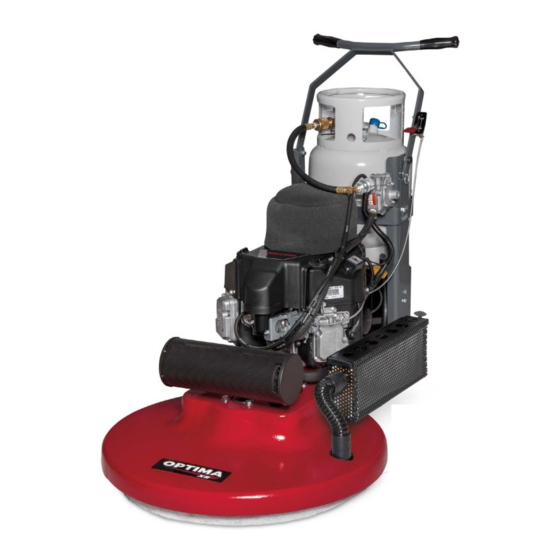

- Page 1 E12800 E12830 OPTIMA XR SERIES 21”, 27" Propane Burnishers Optional Emissions Kit Available Operator and Parts Manual 400 Van Camp • Bowling Green, Ohio 43402 Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com...
-
Page 2: Table Of Contents
WARNING - CARBON MONOXIDE TABLE OF CONTENTS LETHAL EXHAUST GAS - MUST READ THIS! - Never Run The Engine In A Closed Building Or Confined Area Exhaust gases contain poisonous carbon monoxide. Carbon monoxide is odorless, colorless, and can cause death if inhaled. Carbon Monoxide Warning ........3 Carbon Monoxide Poisoning Symptoms Safety ..............4... -
Page 3: Safety
TANK USE AND STORAGE SAFETY lmportant Safety Information Propane Tank Use We use OPD gas cylinders designed for vapor withdrawal. The fuel lock offs, regulators, and engines are also designed All LPG (Liquified Petroleum Gas) powered engines, including this engine, produce Carbon Monoxide (CO). It is a for vapor withdrawal. -
Page 4: Operator Preparation
OPERATOR PREPARATION BELT TENSIONING Adjust the handle for comfortable operation. Remove detent pins from the handle, and adjust to the hole alignment that gives the most comfortable height. Replace detent pins. Tighten nuts and bolts if needed. Make sure pad is not torn, pad is well attached and centering device is tightened. Check Oil Level: Starting the engine without the proper amount of oil will cause severe engine damage. -
Page 5: Pad Change Methods
PAD CHANGE METHODS MAJOR ASSEMBLIES Caution: Muffler May Be Hot! 1. Close valve and remove propane tank from the Tilt the machine back on its caster. Tilt the machine on either side. machine. UPPER HANDLE ASM Unscrew the pad center threaded hold. Unscrew the pad center threaded hold. -
Page 6: Handle Bar
HANDLE BAR... -
Page 7: Lower Handle Support
LOWER HANDLE SUPPORT E86120 E10457 (13") E89825 E86125 E11702 E89823 E81089 E10141 E89822 E86119 E10457 (4") E10120 E88550 Propane Tank, Steel, 20#, OPD E81072 Note: Not available for purchase assembled. E88807 E89826 E11353 E10734 E81062 E81062 E89824 E11146 E89827 E88550 - PROPANE TANK NOT SHOWN... -
Page 8: Regulator Assembly
REGULATOR ASSEMBLY 12V KEY SWITCH BOX... -
Page 9: Kawasaki Engine Assembly
KAWASAKI ENGINE ASSEMBLY PART Description QTY. NUMBER E10242 - Emission Kit (E10248 E12360 E10116 Screw, 7/16"-14 x 1.250 Hex Head, Grade 5, Zinc & E10249) E10135 Washer, 3/8" USS, Zinc E10245 - Bung Plug M18 x 1.5mm E10137 Clamp, Tube 1/2" (COV-0909) E10337 - Valve Oil Seal E10242 Emissions Kit (E10248, E10249) -
Page 10: Deck Assembly
DECK ASSEMBLY PART DESCRIPTION QTY. NUMBER E89585 E10120 NYLOC HEX NUT 10-32 E10122 HEX HEAD BOLT 1/4-20 x 1.00 LG E10141 NYLOC HEX JAM NUT 0.3125-18 ZINC E81089 E10902 HEX HEAD BOLT 5/16-18 x 2-1/2 LG ZINC E11772 SOLENIOD 12 VDC E81067 E11840 DECK 27 INCH BURNISHER... -
Page 11: 27" Dust Control Deck Assembly
27" DUST CONTROL DECK ASSEMBLY PART DESCRIPTION QTY. NUMBER E10120 NYLOC HEX NUT 10-32 E83520 E10122 HEX HEAD BOLT 1/4-20 x 1.00 LG E11772 E10141 NYLOC HEX JAM NUT 0.3125-18 ZINC E81088 E10120 E10902 HEX HEAD BOLT 5/16-18 x 2-1/2 LG ZINC E11772 SOLENIOD 12 VDC E81089... -
Page 12: Belt Drive System
BELT DRIVE SYSTEM PART Description QTY. E12609 -- place between E10116 NUMBER E12709 & E10116 Screw, 7/16"-14 x 1.250 Hex Head, Grade 5, Zinc aluminum deck at E10117 Washer, 7/16" Split Lock, Zinc this bolt location. E10135 Washer, 3/8" USS, Zinc E10459 Belt Tensioner E10117... -
Page 13: Pad Drive System
PAD DRIVE SYSTEM PART Description QTY. NUMBER EP50028 -- 21" Pad Drive Assembly E10112 Screw, 5/16"-18 x 1.250 Hex Head Grade 5, Zinc EP50040 -- 27" Pad Drive Assembly E10250 21" Pad Driver E10112 E10252 27" Pad Driver E10586 3/4" Pad Driver Shaft Coupling E10850 Rivet, 3/16"... -
Page 14: Centrifugal Clutch Assembly
CENTRIFUGAL CLUTCH ASSEMBLY PART Description QTY. NUMBER E10117 Washer, 7/16" Split Lock, Zinc E10598 Screw 7/16"-20 x 1.750 Hex Head, Grade 5, Zinc E11289 Key 1/4" x 1/4" x 1.500" E86122 E86122 is installed to align E11501 Washer, 7/16" USS, Zinc the belt drive section of the clutch E89768 Clutch, Centrifugal 1750 RPM 4"... -
Page 15: Electrical Schematic
ELECTRICAL SCHEMATIC ELECTRICAL SCHEMATIC (emissions) E89585 - Wiring Harness E89590 - Wiring Harness E10449 E10449 KEY SWITCH KEY SWITCH ORANGE 14 GA ORANGE 14 GA RED 14 GA RED 14 GA E12405 OIL PRESSURE SWITCH BLACK 14 GA GREEN 14 GA GREEN 14 GA E12405 OIL PRESSURE... -
Page 16: Engine Maintenance
ENGINE MAINTENANCE TROUBLESHOOTING KAWASAKI FS481V PROBLEM CAUSE POSSIBLE SOLUTION Battery is dead Recharge battery or replace if necessary Loose wire or bad connection Check wires and connections PERIODIC MAINTENANCE EVERY EVERY Engine will not turn over Bad electrical component Replace bad component DAILY PLEASE REFER TO ENGINE OWNERS MANUAL Refer to engine owner’s manual and read... - Page 17 8. Throughout the SORE warranty period stated above, Betco Corporation will maintain a supply of warranted parts sufficient to but Betco Corporation cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all meet the expected demand for such parts.
-
Page 18: Warranty
Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by Betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.
