BETCO OPTIMA QT Series E12317-00 Operator And Parts Manual

BETCO OPTIMA QT Series E12317-00 Operator And Parts Manual

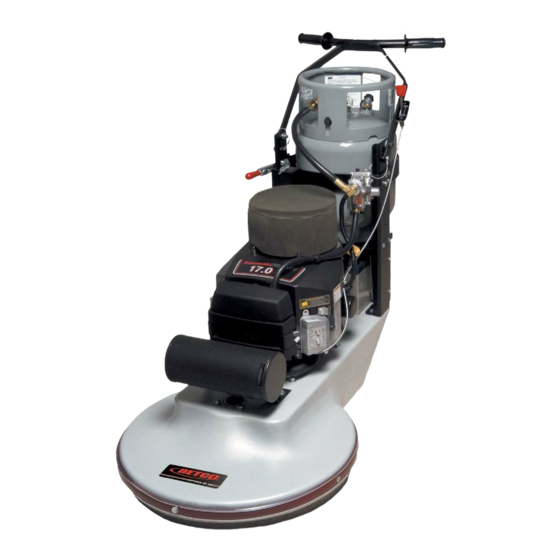

21”, 24", 27" propane burnishers
Hide thumbs Also See for OPTIMA QT Series E12317-00:

Advertisement

E12317-00
E12319-00
OPTIMA QT SERIES
OPTIMA QT SERIES
Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com
E12321-00
1001 Brown Avenue • Toledo, Ohio 43607-0127
21", 24", 27"
Propane Burnishers
Optional
Emissions
Kit Available
Operator and Parts
Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPTIMA QT Series E12317-00 and is the answer not in the manual?

Questions and answers

Summary of Contents for BETCO OPTIMA QT Series E12317-00

  • Page 1 E12321-00 E12319-00 21”, 24", 27" OPTIMA QT SERIES OPTIMA QT SERIES Propane Burnishers Optional Emissions Kit Available Operator and Parts Manual 1001 Brown Avenue • Toledo, Ohio 43607-0127 Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Carbon Monoxide Warning ........3 Safety ..............4 Tank Use and Storage ..........5 Starting and Stopping the Kawasaki Engine ....5 Operator Preparation ..........6 Belt Tensioning ............7 Pad Change .............8 Pad Driver Removal ..........8 Major Assemblies ...........9 Handle Bar ............ 10 - 11 Lower Handle Support ........
  • Page 3: Carbon Monoxide Warning

    WARNING - CARBON MONOXIDE LETHAL EXHAUST GAS - MUST READ THIS! - Never Run The Engine In A Closed Building Or Confi ned Area Exhaust gases contain poisonous carbon monoxide. Carbon monoxide is odorless, colorless, and can cause death if inhaled. Carbon Monoxide Poisoning Symptoms Train your employees to know the warning signs of carbon monoxide poisoning.
  • Page 4: Safety

    SAFETY lmportant Safety Information All LPG (Liquid Propane Gas) powered engines, including this engine, produce Carbon Monoxide (CO). It is a Lethal Poison that is colorless, odorless, tasteless, and non-irritating gas. You must read “Danger: Lethal Exhaust Gas” information below. Keep hands, feet, and loose clothing away from all moving parts while the machine is in operation.
  • Page 5: Tank Use And Storage

    TANK USE AND STORAGE Propane Tank Use We use the Worthington gas cylinders designed for vapor withdrawal. The fuel lock offs, regulators, and engines are also designed for vapor withdrawal. • We recommend that you use the OPD (Overfl ow Protection Device) vapor withdrawal type cylinder. These style tanks have a triangle shaped valve handle.
  • Page 6: Operator Preparation

    OPERATOR PREPARATION Before Starting the Machine Read the Owner’s Manual and the Engine Operation Manual. Your machine is shipped ready for operation; however there is no fuel in the tank. When having the tank fi lled, you must make sure the tank is never over-fi lled. •...
  • Page 7: Belt Tensioning

    BELT TENSIONING Use 15/16" socket with extension to tighten tensioner in direction of arrow. Test tension by pushing or pulling on belt or belt tensioner. With proper belt tension the pulley on the belt tensioner should only move about 1". Use 9/16"...
  • Page 8: Pad Change

    PAD CHANGE METHODS Caution: Muffl er May Be Hot! Tilt the machine back on its caster. Tilt the machine on either side. Unscrew the pad center threaded hold. Unscrew the pad center threaded hold. Remove the pad from the pad driver. Remove the pad from the pad driver.
  • Page 9: Major Assemblies

    MAJOR ASSEMBLIES Handle Bar E88550 - Steel OPD Propane Tank 12V Key Switch Box Lower Handle Support Regulator Assembly 17HP Kawasaki Engine Assembly Deck Assembly Belt Drive System Pad Drive System...
  • Page 10: Handle Bar

    HANDLE BAR E86220 E12696 E12476 E83145 E10120 E86228 E11420 E86125 E11146 E87986 E86114 (38")
  • Page 11: Handle Bar

    PART Description QTY. NUMBER E10120 Nut, #10-32, Nylon Lock, Grade 5, Zinc E11146 Nut, 3/8"-16, Nylon Lock, Grade 5, Zinc E11420 Washer, #10 SAE, Zinc E12476 Screw, Shoulder 1/2" x 1/2" Socket Head E12696 Hand Grip E83145 Washer, Nylon 1/2" ID X 1.25" OD E86114 Kawasaki Throttle Cable 38"...
  • Page 12: Lower Handle Support

    LOWER HANDLE SUPPORT E88318 E86120 E86125 E10457 (13") E11702 E10761 E81063 E81089 E86125 E81063 E10120 E86119 E10457 (4") E88316 E88319 E11353 E81089 E86117 E10734 E83629 E86125 E88317 E81062 E11146...
  • Page 13 PART Description QTY. NUMBER E10120 Nut, #10-32, Nylon Lock, Grade 5, Zinc E10457 Felt, 1.500 W x 0.125 Thick, Adhesive Back E10734 Screw, 1/4"-20 x 0.625 Hex Head, Grade 5, Zinc E10761 Rubber Propane Tank Shelf Pad E11146 Nut, 3/8"-16, Nylon Lock, Grade 5, Zinc E11353 Tube Clamp 3/4"...
  • Page 14: Regulator Assembly

    REGULATOR ASSEMBLY E12359 E10751 E10746 E10243 (Emissions) E10246 E10734 E11321 E10084 E11353 E10080 E10074 12V KEY SWITCH BOX E10550 E12290 E10449 E86125 E86121 E10204...
  • Page 15 PART Description QTY. NUMBER E10074 Hose, 6 LOLA Fuel Line 9.5mm ID x 16mm OD x 17" L E10080 Fitting, 3/8 MNPT x 3/8 Barb, Hose Barb, Brass E10084 Fitting, 3/8 MNPT x 3/8 MJIC, 90 Elbow, Brass E10243 In Line Fuel Shut Off Valve Model 152 (With Emissions) E10246 In Line Fuel Shut Off Valve Model 151 E10734...
  • Page 16: Kawasaki Engine Assembly

    KAWASAKI ENGINE ASSEMBLY...
  • Page 18: Deck Assembly

    DECK ASSEMBLY E86233 E81089 E81067 E88324 E12444 E10122 E10457 (3.44") E11772 E11281 -- 21" Deck E12704 E11282 -- 24" Deck E11840 -- 28" Deck E81088 E86118 E12584 is supplied with the machine. E83520 After removing the 5/16" eye bolt (E11407) Serial # Location insert it into the hole, On Opposite Side...
  • Page 19 Washer, 5/16" SAE, Zinc E12584 Rivet, 5/16" Drive (Hammer In) E12689 Wheel, 6" with Sealed Ball Bearings, Non-Marking E12704 Decal, BETCO Optima QT E81067 Washer, 5/16" Split Lock, Zinc E81088 Nut, 1/2"-13, Slim, Nylon Lock, Grade 5, Zinc E81089 Screw, 5/16"-18 x 0.750 Hex Head, Grade 5, Zinc E83520 Nut, 1/4"-20, Nylon Lock, Grade 5, Zinc...
  • Page 20: Belt Drive System

    BELT DRIVE SYSTEM E83269 -- 24" & 28" Deck E10116 place 2 between E12709 & aluminum deck at this bolt location. E10117 E83629 E83269 -- 21" Deck place 2 E81066 between E12709 and aluminum deck at this bolt location. E10135 E12447 E10459 E12709...
  • Page 21 PART Description QTY. NUMBER Bushing 1/4" Split Lockwasher Part 1 Bushing 1/4" Split Lockwasher Part 2 Bushing Screw, 1/4"-20 x 0.750 Hex Head Part 3 Bushing Screw, 1/4"-20 x 1.500 Hex Head Part 4 E10116 Screw, 7/16"-14 x 1.250 Hex Head, Grade 5, Zinc E10117 Washer, 7/16"...
  • Page 22: Pad Drive System

    PAD DRIVE SYSTEM EP50028 -- 21" Pad Drive Assembly EP50027 -- 24" Pad Drive Assembly EP50040 -- 27" Pad Drive Assembly E10112 E81067 E10586 E12444 E10250 -- 21" Pad Driver E10251 -- 24" Pad Driver E10252 -- 27" Pad Driver E81063 E12517 2 Piece Set...
  • Page 23 PART Description QTY. NUMBER 84621 Pad, 21" Hi-Shine Light Burnish Pad, 5/Case 84624 Pad, 24" Hi-Shine Light Burnish Pad, 5/Case 84627 Pad, 27" Hi-Shine Light Burnish Pad, 5/Case E10112 Screw, 5/16"-18 x 1.250 Hex Head Grade 5, Zinc E10250 21" Pad Driver E10251 24"...
  • Page 24: Centrifugal Clutch Assembly

    CENTRIFUGAL CLUTCH ASSEMBLY E86122 E86122 is installed to align the belt drive section of the clutch to the pad driver pulley belt drive section. E12434 Remove and discard set screws from clutch before installing. Install key after pushing clutch E11289 onto the engine drive shaft and aligning keyways.
  • Page 25 PART Description QTY. NUMBER E10117 Washer, 7/16" Split Lock, Zinc E10598 Screw 7/16"-20 x 1.750 Hex Head, Grade 5, Zinc E11289 Key 1/4" x 1/4" x 1.500" E11501 Washer, 7/16" USS, Zinc E12434 Clutch, Centrifugal 1750 RPM 4" Dia. E12447 Washer, 7/16"...
  • Page 26: Parts List

    PARTS LIST Page Part # Description Page Part # Description 84621 Pad, 21" Hi-Shine Light Burnish Pad 5/Case E10328 Pin, 5/16"" x 0.875 Clevis With Cotter Pin Hole, Zinc 84624 Pad, 24" Hi-Shine Light Burnish Pad 5/Case E10349 Connector, Ring 16-14 x 5/16" 84627 Pad, 27"...
  • Page 27 Page Part # Description Page Part # Description E11420 Washer, #10 SAE, Zinc 11,13, E81062 Washer, 5/16" USS, Zinc 17,25 E11434 Voltage Regulator 13,17,23 E81063 Nut, 5/16"-18 Nylon Lock, Zinc E11438 Kawasaki Engine Starter 17,21 E81066 Washer, 3/8" Split Lock, Zinc E11439 Ignition Coil 19,23...
  • Page 28: Electrical Schematic

    ELECTRICAL SCHEMATIC EP50033 LP Ready 17HPKawasaki Engine Assembly E10246 In Line Fuel Shut Off Valve Model 151 E12405 Oil Pressure Switch Black 14 Gauge Wire 14 Gauge Wire Black 14 Gauge Wire E10449 Ignition Switch E86119 Hour Meter, SenDEC 5-80V Yellow 14 Gauge Wire E1143 Voltage Regulator...
  • Page 29: Electrical Schematic

    ELECTRICAL SCHEMATIC (emissions)
  • Page 30: Engine Maintenance

    ENGINE MAINTENANCE KAWASAKI FH541V 17 HP PERIODIC MAINTENANCE EVERY EVERY EVERY EVERY DAILY PLEASE REFER TO ENGINE OWNERS MANUAL HOURS HOURS HOURS HOURS FOR MORE INFORMATION Check engine oil level and add if needed Check and clean engine intake fi lter "General check for loose or lost nuts, screws, oil leakage, fuel hose connection, etc."...
  • Page 31: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE POSSIBLE SOLUTION Battery is dead Recharge battery or replace if necessary Loose wire or bad connection Check wires and connections Engine will not turn over Bad electrical component Replace bad component Refer to engine owner’s manual and read Fuel system problem IMPORTANT below Propane tank shut off valve in off...
  • Page 32: Warranty

    Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by Betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.
