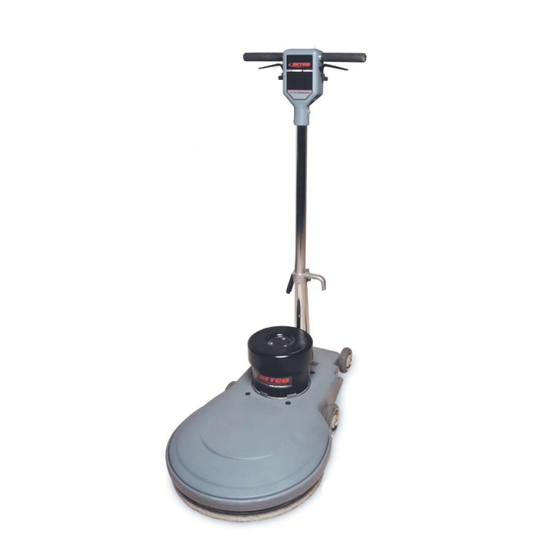

20" High Speed
Electric Burnishers
Operator and Parts
Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CREWMAN 1600 and is the answer not in the manual?

Questions and answers

Summary of Contents for BETCO CREWMAN 1600

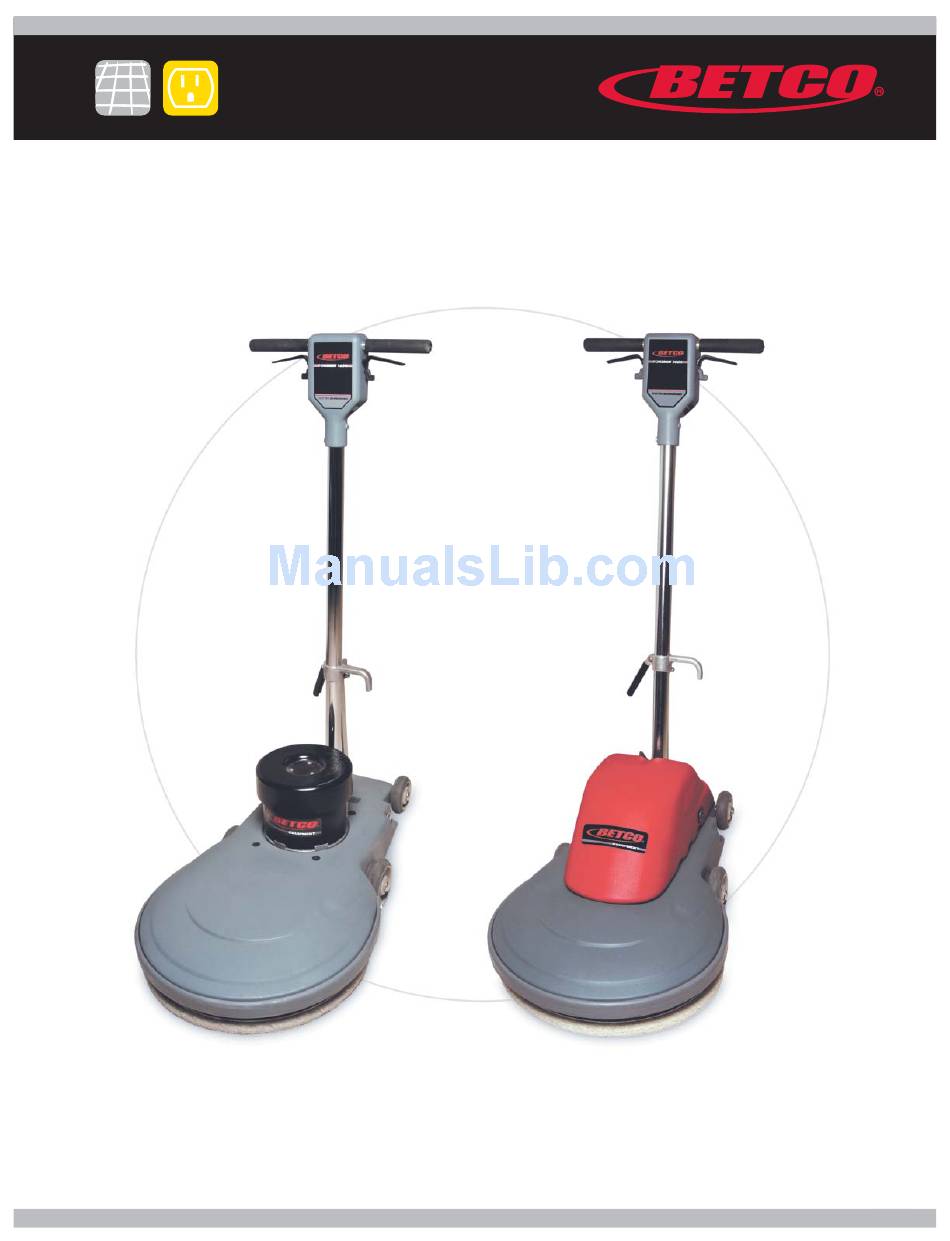

  • Page 1 1600 FOREMAN FOREMAN 1600 1600 Electric Burnishers ® ™ CREWMAN CREWMAN 2000 2000 FOREMAN FOREMAN 2000 2000 Operator and Parts Manual 1001 Brown Avenue • Toledo, Ohio 43607-0127 Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com...
  • Page 2: Specifications

    Specifications Burnishing Path/Pad Size: 20” Hour Meter: Yes / 0.1 hour resolution Motor: 1.5 hp, 120v, 15 A, 50/60 HZ Pad Pressure: 15 lbs. Pad Speed: 1600/2000 RPM Drive System: V-Belt Power Cord: 75’ 14/3 Safety Yellow Handle Grips: Anti-Fatigue Operating Wheels: 5”...
  • Page 3 ! WARNING! IMPORTANT SAFETY INSTRUCTIONS Carefully read and understand this manual before operating this machine. To reduce risk of fire, electric shock, or injury: Do not operate in explosive areas, near flammable liquids or gases. Only plug into a properly grounded outlet. Do not exposure to rain, store indoors.
  • Page 4: Grounding Instructions

    Grounding Instructions This machine must be grounded. If it should electrically malfunction, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This machine is equipped with a cord having an equipment-grounding conductor & grounding plug. The plug must be plugged into an appropriate outlet that is properly installed &...
  • Page 5: Maintenance Instructions

    Operating Instructions Check machine for damage to cord or plug. Use only Hi Speed Burnishing pads 20” or 19” diameter. To install or change the pad: 1. Unplug the machine. 2. Tip the machine back on the wheels. 3. Remove the center-lock. 4.
  • Page 6: Handle Parts

    HANDLE PARTS INSIDE TUBE INSIDE TUBE INSIDE TUBE INSIDE HANDLE LOCK INSIDE CORD HOOK INSIDE BASE ROD THROUGH BASE Not Shown - EP50064 Cam Lock Handle Asm...
  • Page 7 HANDLE PARTS ITEM# PART# DESCRIPTION QTY. E83523 NYLON CABLE TIE E83132 CORD, HANDLE, 14-3 E83789 NUT, ELECTRICAL CONDUIT, 1/2" E83131 CORD, 75 FEET, 14-3 ST E83496 STRAIN RELIEF FOR REPLACEMENT E81064 BOLT, HEX, 1/4-20 x 3/4 E83520 NUT, NYLOCK, 1/4-20 E83127 GRIP E83427...
  • Page 8 BASE, MOTOR, AND WHEELS or 38B or 37B Not Shown - EP50089 - Pad Driver Pulley Asm...
  • Page 9 BASE, MOTOR, AND WHEELS ITEM DESCRIPTION QTY. E83147 HOUR METER E81128 COVER, MOTOR, BURGANDY, HS E83138 BASE, HIGH SPEED E83141 BUMPER E83570 SCREW, PHILLIPS, 1/4-20 x 1 E89334 WASHER, FLAT, 1/4 E81078 WASHER, LOCK, 1/4 E81068 WASHER, FENDER, 1/4 E83425 SCREW, PHILLIPS, 1/4-20 x 1 E83651 AXLE, 1/2 x 17.25...
  • Page 10 MOTOR COVERS ITEM DESCRIPTION QTY. E83146 COVER, MOTOR, RED, HIGH SPEED E83570 SCREW, PHILLIPS, 1/4 -20 x 1 E89334 WASHER, FLAT, E81078 WASHER, LOCK, 1/4 ITEM DESCRIPTION QTY. E81141 COVER, MOTOR, 9" OD x 2.65 TALL E81523 SCREW, PHILLIPS, 8/32 x 3/8 TRUSS HEAD...
  • Page 11 ELECTRICAL Power Cord Micro Switch Handle Cord Motor Standard Machines Not Shown E85053 Carbon Brush Set of 4...
