BETCO Optima QT E12317-00 Operator's Manual

BETCO Optima QT E12317-00 Operator's Manual

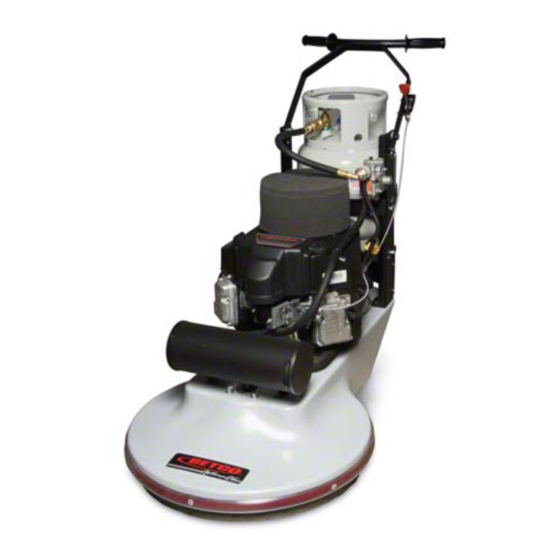

21”, 24", 27" propane burnishers
Hide thumbs Also See for Optima QT E12317-00:

Advertisement

E12317-00
E12319-00
OPTIMA QT SERIES
OPTIMA QT SERIES
Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com
E12321-00
1001 Brown Avenue • Toledo, Ohio 43607-0127
21", 24", 27"
Propane Burnishers
Optional
Emissions
Kit Available
Operator and Parts
Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Optima QT E12317-00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BETCO Optima QT E12317-00

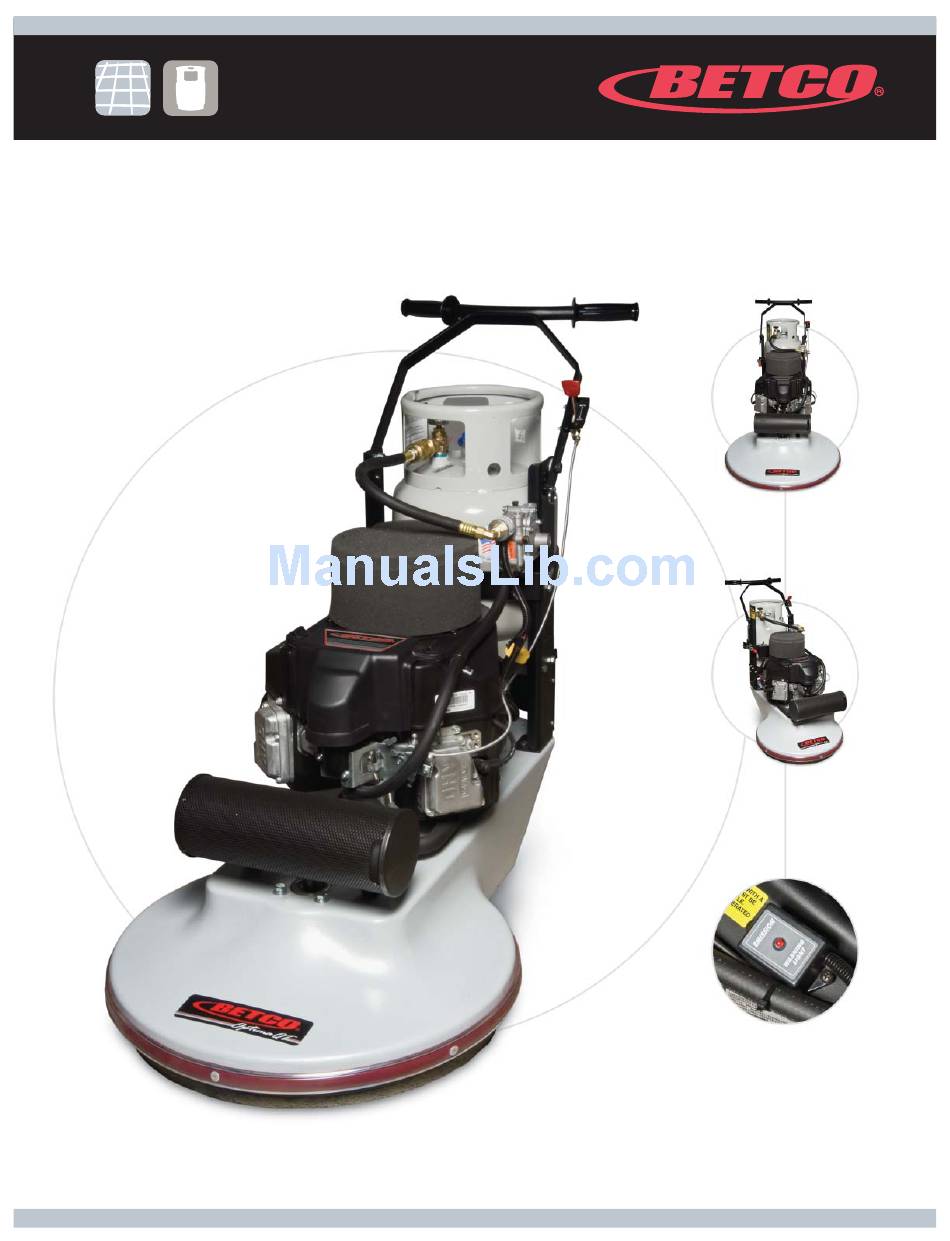

  • Page 1 E12321-00 E12319-00 21”, 24", 27" OPTIMA QT SERIES OPTIMA QT SERIES Propane Burnishers Optional Emissions Kit Available Operator and Parts Manual 1001 Brown Avenue • Toledo, Ohio 43607-0127 Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Carbon Monoxide Warning ........3 Safety ..............4 Tank Use and Storage ..........5 Starting and Stopping the Kawasaki Engine ....5 Operator Preparation ..........6 Belt Tensioning ............7 Pad Change .............8 Pad Driver Removal ..........8 Major Assemblies ...........9 Handle Bar ............ 10 - 11 Lower Handle Support ........
  • Page 3: Carbon Monoxide Warning

    WARNING - CARBON MONOXIDE LETHAL EXHAUST GAS - MUST READ THIS! - Never Run The Engine In A Closed Building Or Confi ned Area Exhaust gases contain poisonous carbon monoxide. Carbon monoxide is odorless, colorless, and can cause death if inhaled. Carbon Monoxide Poisoning Symptoms Train your employees to know the warning signs of carbon monoxide poisoning.
  • Page 4: Safety

    SAFETY lmportant Safety Information All LPG (Liquid Propane Gas) powered engines, including this engine, produce Carbon Monoxide (CO). It is a Lethal Poison that is colorless, odorless, tasteless, and non-irritating gas. You must read “Danger: Lethal Exhaust Gas” information below. Keep hands, feet, and loose clothing away from all moving parts while the machine is in operation.
  • Page 5: Tank Use And Storage

    TANK USE AND STORAGE Propane Tank Use We use the Worthington gas cylinders designed for vapor withdrawal. The fuel lock offs, regulators, and engines are also designed for vapor withdrawal. • We recommend that you use the OPD (Overfl ow Protection Device) vapor withdrawal type cylinder. These style tanks have a triangle shaped valve handle.
  • Page 6: Operator Preparation

    OPERATOR PREPARATION Before Starting the Machine Read the Owner’s Manual and the Engine Operation Manual. Your machine is shipped ready for operation; however there is no fuel in the tank. When having the tank fi lled, you must make sure the tank is never over-fi lled. •...
  • Page 7: Belt Tensioning

    BELT TENSIONING Use 15/16" socket with extension to tighten tensioner in direction of arrow. Test tension by pushing or pulling on belt or belt tensioner. With proper belt tension the pulley on the belt tensioner should only move about 1". Use 9/16"...
  • Page 8: Pad Change

    PAD CHANGE METHODS Caution: Muffl er May Be Hot! Tilt the machine back on its caster. Tilt the machine on either side. Unscrew the pad center threaded hold. Unscrew the pad center threaded hold. Remove the pad from the pad driver. Remove the pad from the pad driver.
  • Page 9: Major Assemblies

    MAJOR ASSEMBLIES...
  • Page 10: Handle Bar

    HANDLE BAR...
  • Page 12: Lower Handle Support

    LOWER HANDLE SUPPORT...
  • Page 14: Regulator Assembly

    REGULATOR ASSEMBLY 12V KEY SWITCH BOX...
  • Page 16: Kawasaki Engine Assembly

    KAWASAKI ENGINE ASSEMBLY...
  • Page 18: Deck Assembly

    DECK ASSEMBLY...
  • Page 20: Belt Drive System

    BELT DRIVE SYSTEM...
  • Page 22: Pad Drive System

    PAD DRIVE SYSTEM...
  • Page 24: Centrifugal Clutch Assembly

    CENTRIFUGAL CLUTCH ASSEMBLY...
  • Page 26: Parts List

    PARTS LIST Page Part # Description Qty. Page Part # Description Qty. 84621 Pad, 21" Hi-Shine Light Burnish Pad 5/Case E10725 Screw, 1/4"-20 x 1.500 Hex Head, Grade 5, Zinc 84624 Pad, 24" Hi-Shine Light Burnish Pad 5/Case 13,15 E10734 Screw, 1/4"-20 x 0.625 Hex, Grade 5, Zinc 84627 Pad, 27"...
  • Page 27 E83145 Washer, Nylon 1/2" ID X 1.25" OD E88481 Decal, Emissions E83269 Washer, 1/2" ID X 0.020" T, Spring E88482 Decal, Air Filter Cover BETCO E83520 Nut, 1/4"-20 Nylon Lock, Zinc E88483 Catalytic Muffl er & Manifold 13,21 E83629 Screw, 3/8"-16 x 1.250 Hex, Grade 5, Zinc...
  • Page 28: Electrical Schematic

    ELECTRICAL SCHEMATIC...
  • Page 29: Electrical Schematic

    ELECTRICAL SCHEMATIC (emissions) EP50034 LP Ready 17HP Kawasaki Engine Assembly With Emission Kit (E10242) Black Wire E10248 O2 Sensor Electrical Control Box E10249 O2 Sensor Blue Wire E12405 Oil Pressure Switch Green Wire 14 Gauge Wire Black 14 Gauge Wire E10449 Ignition Switch E86119 Hour Meter, SenDEC 5-80V...
  • Page 30: Engine Maintenance

    ENGINE MAINTENANCE KAWASAKI FS481V PERIODIC MAINTENANCE EVERY EVERY EVERY EVERY DAILY PLEASE REFER TO ENGINE OWNERS MANUAL HOURS HOURS HOURS HOURS FOR MORE INFORMATION Check engine oil level and add if needed Check and clean engine intake foam and intake paper filter Check and clean engine cooling air intake filter General check for loose or lost nuts, screws, oil leakage, fuel hose connection, etc.
  • Page 31: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE POSSIBLE SOLUTION Battery is dead Recharge battery or replace if necessary Loose wire or bad connection Check wires and connections Engine will not turn over Bad electrical component Replace bad component Refer to engine owner’s manual and read Fuel system problem IMPORTANT below Propane tank shut off valve in off...
  • Page 32: Emissions Warranty

    Betco Corporation cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. As the SORE owner you should however be aware that Betco Corporation may deny your warranty if your SORE or its part has failed due to abuse, neglect, improper maintenance or unapproved modifi cation.
  • Page 33: Emissions Warranty

    7. Betco Corporation is liable for damages to other engine or equipment components proximately caused by a failure under warranty of any warranted part. 8. Throughout the SORE warranty period stated above, Betco Corporation will maintain a supply of warranted parts suffi cient to meet the expected demand for such parts.
  • Page 36: Warranty

    Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by Betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.

This manual is also suitable for:

Optima qt e12319-00Optima qt e12321-00
