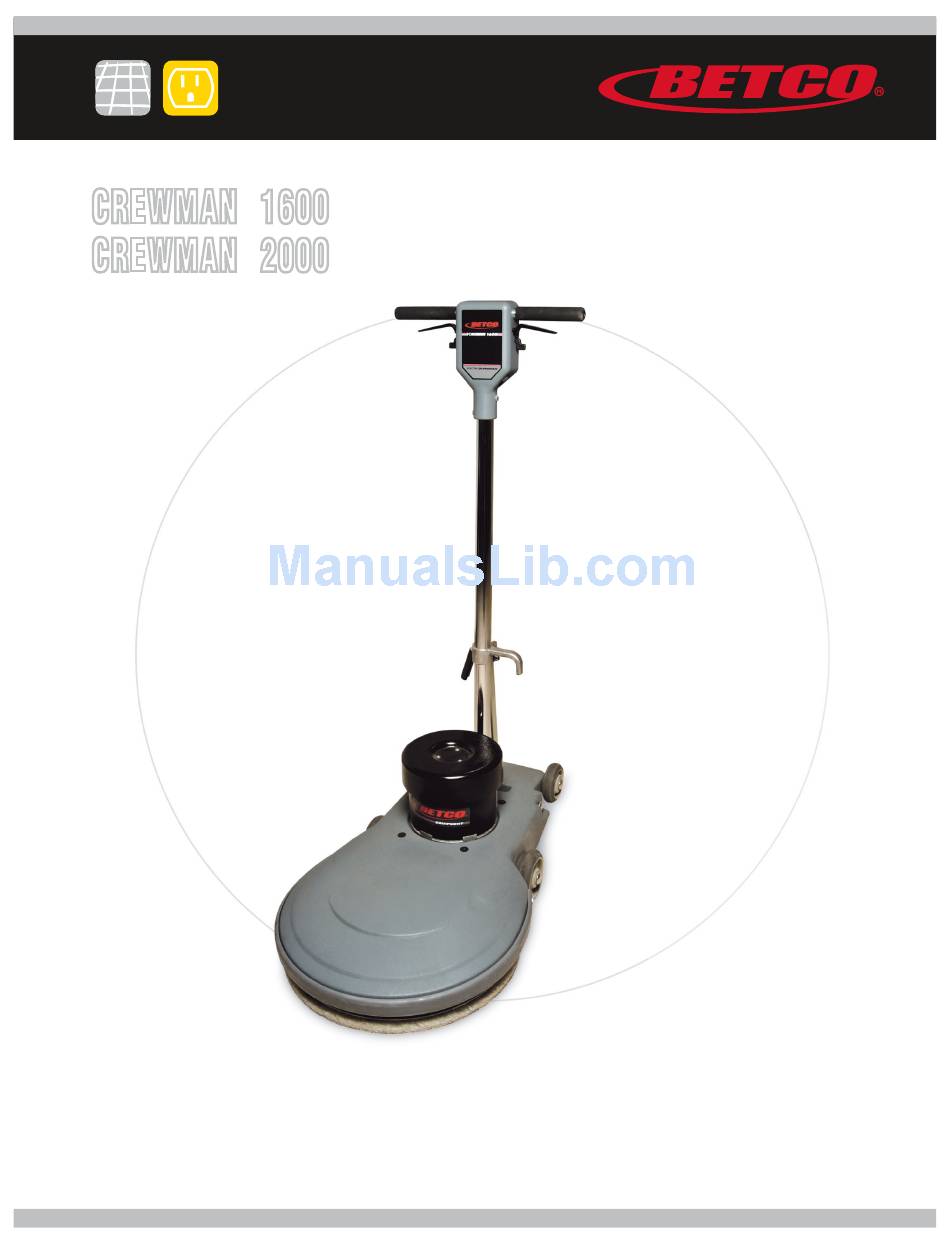

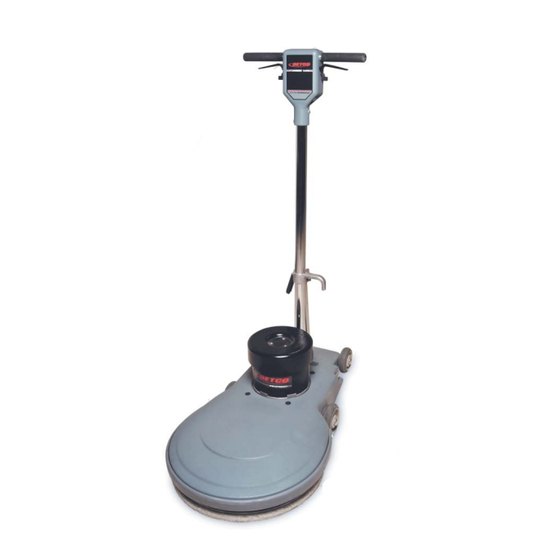

- Page 1 E83015-00 E83016-00 CREWMAN 1600 20” High Speed ™ Electric Burnishers CREWMAN 2000 ™ Operator and Parts Manual 1001 Brown Avenue • Toledo, Ohio 43607-0127 Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com...
-
Page 2: Specifications
SPECIFICATIONS Burnishing Path/Pad Size: 20” • Motor: 1.5 hp, 120v, 15 A, 50/60 HZ • Pad Pressure: 15 lbs. • Pad Speed: 1600/2000 RPM • Drive System: V-Belt • Power Cord: 75’ 14/3 Safety Yellow • Handle Grips: Anti-Fatigue • Operating Wheels: 5”... - Page 3 WARNING! IMPORTANT SAFETY INSTRUCTIONS Carefully read and understand this manual before operating this machine. To reduce risk of fire, electric shock, or injury: • Do not operate in explosive areas, near flammable liquids or gases. • Only plug into a properly grounded outlet. •...
-
Page 4: Grounding Instructions
GROUNDING INSTRUCTIONS This machine must be grounded. If it should electrically malfunction, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This machine is equipped with a cord having an equipment-grounding conductor & grounding plug. The plug must be plugged into an appropriate outlet that is properly installed &... -
Page 5: Maintenance Instructions
OPERATING INSTRUCTIONS Check machine for damage to cord or plug. Use only Hi Speed Burnishing pads 20” or 19” diameter. To install or change the pad: 1. Unplug the machine. 2. Tip the machine back on the wheels. 3. Remove the center-lock. 4. - Page 6 HANDLE PARTS BEFORE SERIAL NUMBER 0438426 INSIDE TUBE INSIDE TUBE INSIDE TUBE INSIDE HANDLE LOCK INSIDE CORD HOOK INSIDE BASE ROD THROUGH BASE Not Shown - EP50064 Cam Lock Handle Asm...
- Page 7 HANDLE PARTS BEFORE SERIAL NUMBER 0438426 ITEM# PART# DESCRIPTION QTY. E83523 NYLON CABLE TIE E83132 CORD, HANDLE, 14-3 E83789 NUT, ELECTRICAL CONDUIT, 1/2" E83131 CORD, 75 FEET, 14-3 ST E89602 CORD STRAIN RELIEF, METAL E81064 BOLT, HEX, 1/4-20 x 3/4 E83520 NUT, NYLOCK, 1/4-20 E83127...
- Page 8 HANDLE ASSEMBLY AFTER SERIAL NUMBER 0438426 E83735 E82750 E83270 E83130 E89916 E83523 E89917 E83451 E89919 E89918 E83426 E81064 E85032 E83521 E83520 E83127 E83522 E83427 E81713 E81180 E83711 E83691 E83789 E82751 E83135 E89602 E83137 E83269 E83133 E83519 E83131 E81062 E83136 E81077 E81063 E81379 E83132...
- Page 9 E89602-02 SPRING E89919 SAFETY SPRING E89917 SWITCH LEVER E89918 SAFETY LOCK E89916 SWITCH LEVER E83735 Decal, Betco Crewman 2000 E83133 CAM LOCK HANDLE E83133-01 CAM LOCK LEVER E83133-02 PIN, 0.25 x 0.75 E83133-03 PUSH CAP, 0.25 E83133-04 WASHER, 1/4 E83133-05...
- Page 10 BASE, MOTOR, AND WHEELS or 38B or 37B Not Shown - EP50089 - Pad Driver Pulley Asm...
- Page 11 BASE, MOTOR, AND WHEELS ITEM DESCRIPTION QTY. E83138 BASE, HIGH SPEED E83141 BUMPER E83570 SCREW, PHILLIPS, 1/4-20 x 1 E89334 WASHER, FLAT, 1/4 E81078 WASHER, LOCK, 1/4 E81068 WASHER, FENDER, 1/4 E83425 SCREW, PHILLIPS, 1/4-20 x 1 E83651 AXLE, 1/2 x 17.25 E83144 WHEEL, 5 INCH E83143...
- Page 12 MOTOR COVERS ITEM DESCRIPTION QTY. E81141 COVER, MOTOR, 9" OD x 2.65 TALL E81523 SCREW, PHILLIPS, 8/32 x 3/8 TRUSS HEAD...
- Page 13 ELECTRICAL Power Cord Micro Switch Handle Cord Motor Standard Machines Not Shown E85053 Carbon Brush Set of 4...
- Page 16 Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by Betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.
