Summary of Contents for BETCO FiberPRO 15C

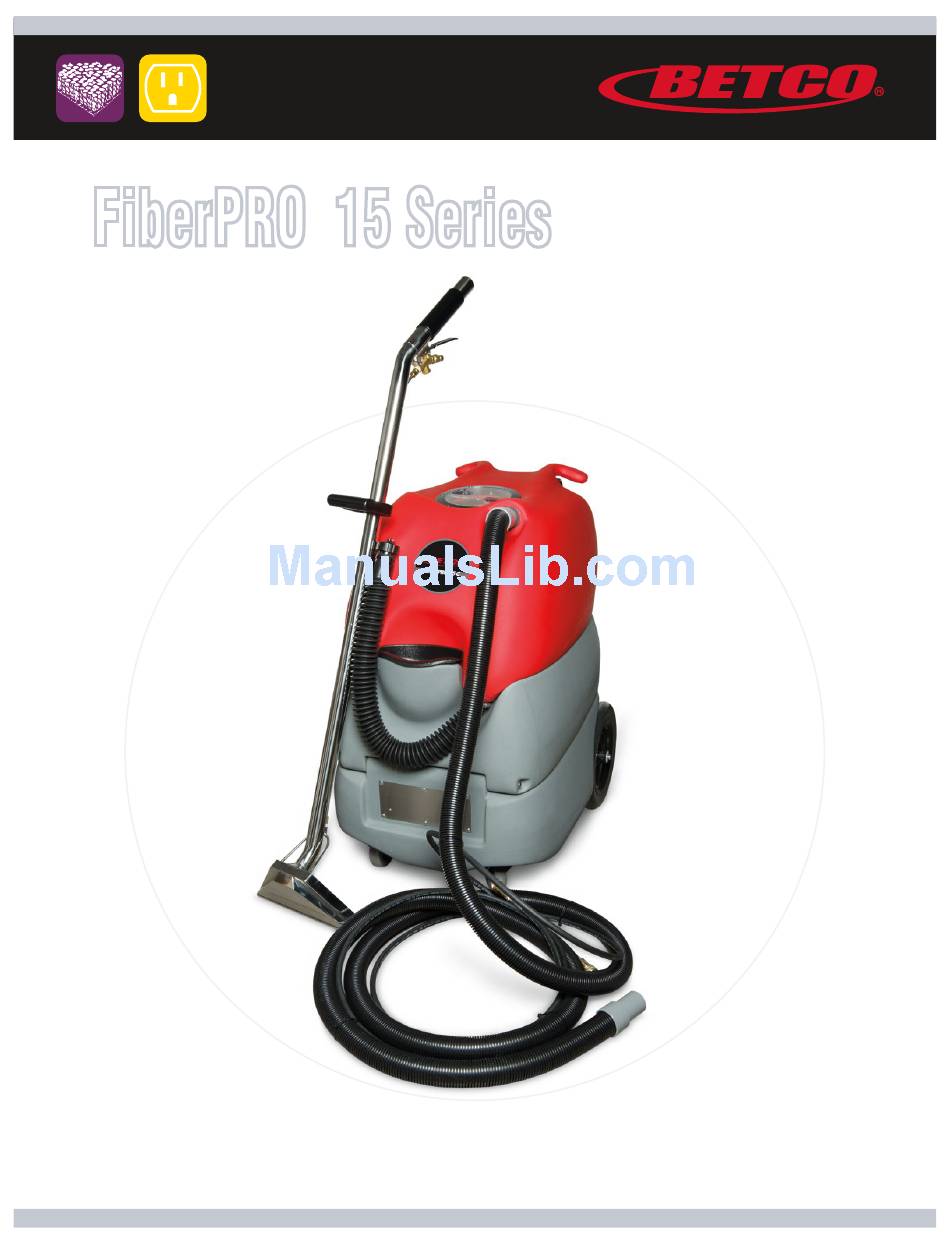

- Page 1 E29977-00 E29979-00 E29978-00 FiberPRO 15 Series High Pressure ® Carpet Extractors Operator and Parts Manual 1001 Brown Avenue • Toledo, Ohio 43607-0127 Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS RECEIVING THE MACHINE..........3 TECHNICAL SPECIFICATIONS ........3 GENERAL SAFETY REGULATIONS ......... 4 MACHINE OVERVIEW ............ 5 MACHINE COMPONENTS ..........6 MACHINE OPERATION ..........7 - 8 PARTS DIAGRAMS AND LISTINGS .......10 - 13 WARRANTY ..............16... -
Page 3: Receiving The Machine
RECEIVING THE MACHINE Immediately check, when receiving the machine, that all the materials indicated on delivery documents have been received and also that the machine has not been damaged in transit. If it has been damaged, this damage must be immediately reported to the shipper and also to our customer service department. -
Page 4: General Safety Regulations
• Have your BETCO service center check the machine once a year. • When your BETCO machine is ready to be retired, the machine must be disposed of properly. It contain oils and electronic components. The machine was built using totally recyclable materials. -
Page 5: Machine Overview
750 – 1000 hours of use. To help maintain a professional image, clean the exterior of the machine with an all-purpose detergent such as Betco Green Earth Peroxide Cleaner. The exterior can further be protected with Betco Brite MSP polish. Lubricate the wheels, casters, and... -
Page 6: Machine Components
MACHINE COMPONENTS 1. FRONT OF MACHINE A. Recovery Tank Access B. Vacuum Hose Connection C. Solution Fill Port D. Drain Hose E. Solution Hose Connection 2. REAR OF MACHINE A. Velcro Wand Holder B. Loading Wheels C. Control Panel D. Latches E. -
Page 7: Machine Operation
MACHINE OPERATION 1. INSPECT THE MACHINE Before each use inspect the machine, hoses, and cleanliness and completeness. Ensure the spray nozzles on the cleaning tool are tight and that the float ball in the recovery tank is clean and operational. 2. -
Page 8: Machine Operation
If you choose to add a detergent to the solution tank, be sure to mix well and always follow the use and dilution instructions on the chemical label. Use a Betco carpet cleaning detergent with a pH between 5 and 10 to reduce the likelihood of premature wear to the pump and other seals. -
Page 10: Parts Diagrams And Listings
FIBERPRO 15C & 15H PARTS DIAGRAM ®... - Page 11 FIBERPRO 15C & 15H PARTS LISTING ® ITEM # PART # DESCRIPTION QTY. ITEM # PART # DESCRIPTION QTY. E84384 Drain Hose Assembly E84414 Heater, Complete E84385 Velcro Strap E84415 Repair Kit, Heater E84386 Wheel, 3" E84408 Caster E84358 Float Ball Assembly E84427 Plate E84387...
- Page 12 FIBERPRO 15HP PARTS DIAGRAM ®...
- Page 13 FIBERPRO 15HP PARTS LISTING ® ITEM # PART # DESCRIPTION QTY. ITEM # PART # DESCRIPTION QTY. E84384 Drain Hose Assembly E84402 Latch E84385 Velcro Strap E84403 Pressure Gauge E84386 Wheel, 3" E84404 Plate, Gauge Mount E84358 Float Ball Assembly E84405 Pressure Regulator E84387...
-
Page 16: Warranty
Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by Betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.
