Warranty; Connection; Configuration - Paser UNICO DUAL PLUS Installation Manual

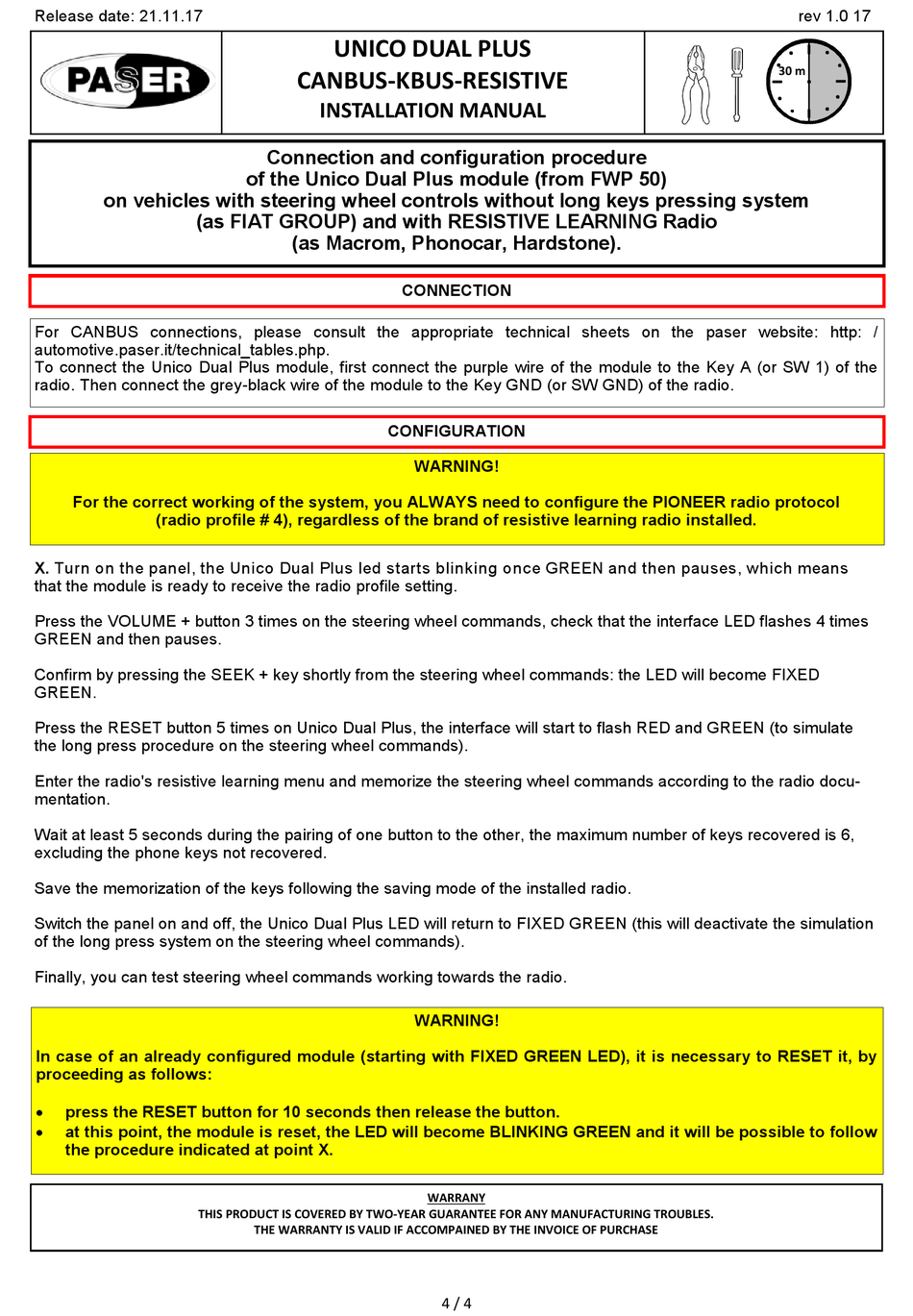

Release date: 21.11.17
on vehicles with steering wheel controls without long keys pressing system
(as FIAT GROUP) and with RESISTIVE LEARNING Radio
For CANBUS connections, please consult the appropriate technical sheets on the paser website: http: /
automotive.paser.it/technical_tables.php.
To connect the Unico Dual Plus module, first connect the purple wire of the module to the Key A (or SW 1) of the
radio. Then connect the grey-black wire of the module to the Key GND (or SW GND) of the radio.
For the correct working of the system, you ALWAYS need to configure the PIONEER radio protocol
(radio profile # 4), regardless of the brand of resistive learning radio installed.
X. Turn on the panel, the Unico Dual Plus led starts blinking once GREEN and then pauses, which means
that the module is ready to receive the radio profile setting.
Press the VOLUME + button 3 times on the steering wheel commands, check that the interface LED flashes 4 times
GREEN and then pauses.
Confirm by pressing the SEEK + key shortly from the steering wheel commands: the LED will become FIXED
GREEN.
Press the RESET button 5 times on Unico Dual Plus, the interface will start to flash RED and GREEN (to simulate
the long press procedure on the steering wheel commands).
Enter the radio's resistive learning menu and memorize the steering wheel commands according to the radio docu-
mentation.
Wait at least 5 seconds during the pairing of one button to the other, the maximum number of keys recovered is 6,
excluding the phone keys not recovered.
Save the memorization of the keys following the saving mode of the installed radio.
Switch the panel on and off, the Unico Dual Plus LED will return to FIXED GREEN (this will deactivate the simulation
of the long press system on the steering wheel commands).
Finally, you can test steering wheel commands working towards the radio.
In case of an already configured module (starting with FIXED GREEN LED), it is necessary to RESET it, by
proceeding as follows:

press the RESET button for 10 seconds then release the button.

at this point, the module is reset, the LED will become BLINKING GREEN and it will be possible to follow
the procedure indicated at point X.
THIS PRODUCT IS COVERED BY TWO-YEAR GUARANTEE FOR ANY MANUFACTURING TROUBLES.
UNICO DUAL PLUS
CANBUS-KBUS-RESISTIVE
INSTALLATION MANUAL
Connection and configuration procedure
of the Unico Dual Plus module (from FWP 50)
(as Macrom, Phonocar, Hardstone).

CONNECTION

CONFIGURATION

WARNING!
WARNING!
THE WARRANTY IS VALID IF ACCOMPAINED BY THE INVOICE OF PURCHASE
WARRANY
