Release date: 21.11.17

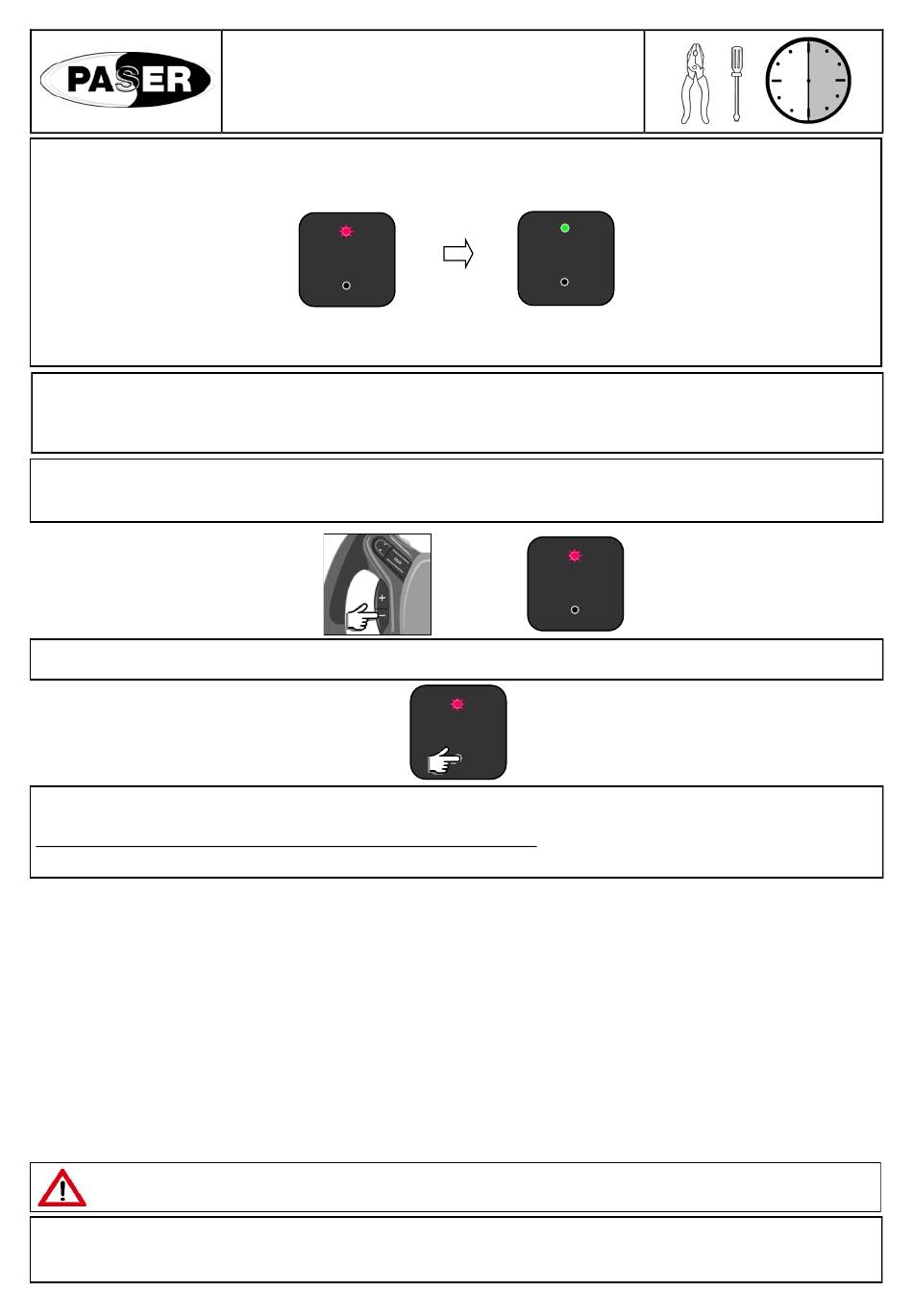

Selection of the CAN BUS - KBUS protocol is carried out in SELF-LEARNING; Once the connections are done, by powering the unit, in a few seconds the synchronization is coming,

operation shown by short RED blinking of the module's LED. As soon as the vehicle is recognized, the LED will light GREEN. This indicates that the unit selected the car protocol.

Once selected the radio, plug the REMOTE adapter back the radio. The unit is ready to work.

For the connections follow the table CANBUS KBUS CONNECTIONS.

In case of troubles reset the unit.

Management of resistive protocols is done through a programming procedure; Once done the connections, turn on the ignition to supply power to UNICO DUAL ; the LED will flash

RED quickly, indicating that the condition "no button pressed" is memorized.

Now follow the steps below.

Assign desired functions to each of the buttons/levers of the vehicle's steering wheel command. The allocation of functions follows the sequential logic described in FUNCTIONS TAB

below. The first function available is VOLUME —.

Each time you press a steering wheel button/lever, UNICO DUAL LED emits a short RED flash to indicate the successful storage of the function.

To skip a function simply press quickly the button UNICO DUAL.

It's possible to memorize maximum 8 buttons/levers. If buttons/levers are less than 8, it is necessary to exit the procedure.

To exit the procedure, you must press and keep pressed one of the memorized buttons till the LED light YELLOW. As soon as you release the button, LED will light GREEN.

Once selected the radio, plug the REMOTE adapter back the radio, unit is ready to work.

Unit is ready to work when LED light GREEN, now if you press any button memorized, LED will light YELLOW.

In case of anomaly, do the procedure of RESET

IF YOU NEED TO INSTAL THE SAME IN A NEW CAR (EVEN IF IN A SAME GROUP MODEL) IT IS NECESSARY TO RESET THE MODULE.

RESET:

WITH THE UNIT POWERED, PRESS AND KEEP PRESSED THE UNICAN BUTTON TILL THE LED SWITCH OFF.

WITH THE LED SWITCHED OFF RELEASE THE BUTTON, THE RESET IS DONE.
