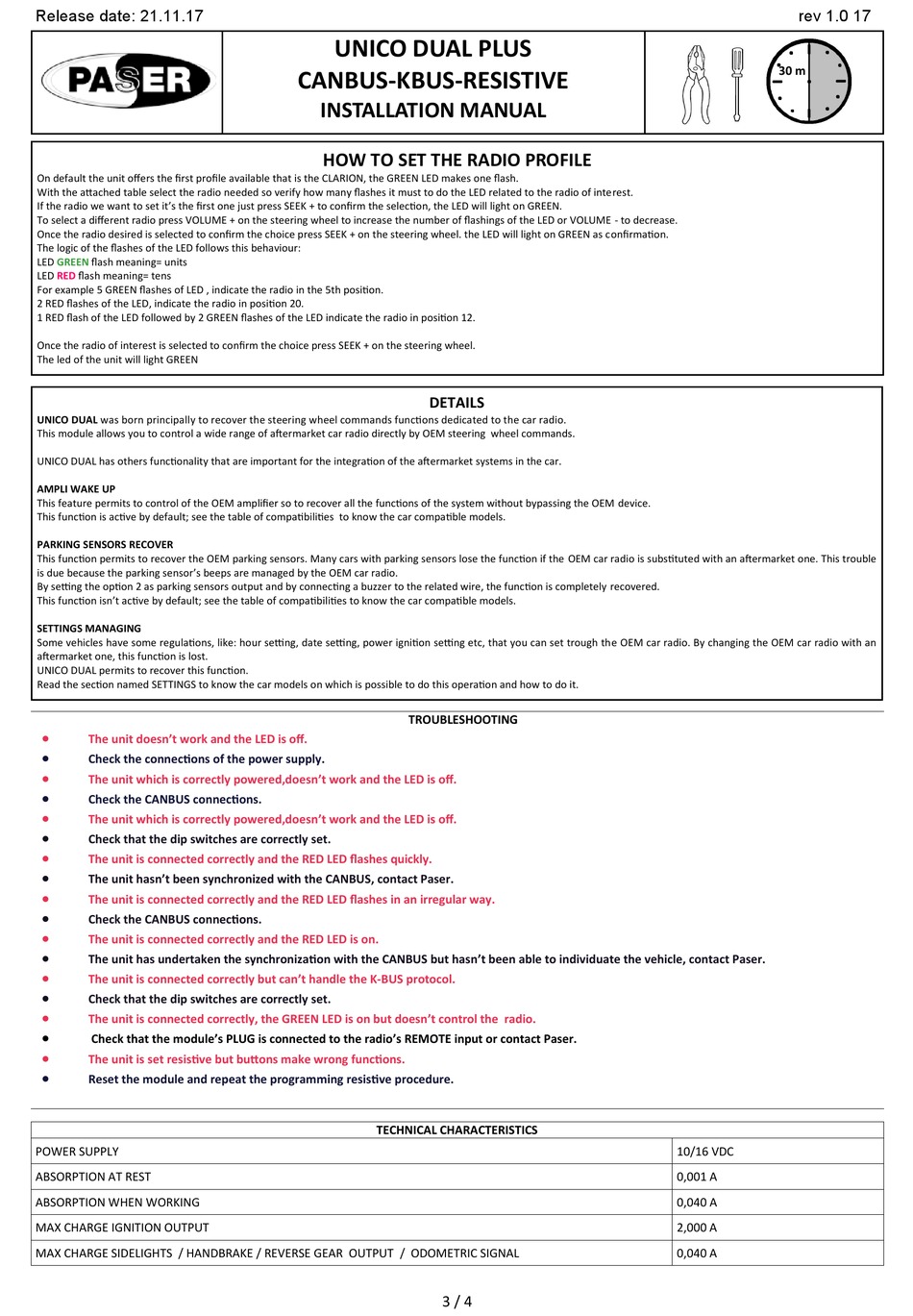

How To Set The Radio Profile; Details; Ampli Wake Up; Parking Sensors Recover - Paser UNICO DUAL PLUS Installation Manual

Canbus-kbus-resistive

Table of Contents

Release date: 21.11.17

On default the unit offers the first profile available that is the CLARION, the GREEN LED makes one flash.

With the attached table select the radio needed so verify how many flashes it must to do the LED related to the radio of interest.

If the radio we want to set it's the first one just press SEEK + to confirm the selection, the LED will light on GREEN.

To select a different radio press VOLUME + on the steering wheel to increase the number of flashings of the LED or VOLUME - to decrease.

Once the radio desired is selected to confirm the choice press SEEK + on the steering wheel. the LED will light on GREEN as confirmation.

The logic of the flashes of the LED follows this behaviour:

LED

GREEN

flash meaning= units

LED

RED

flash meaning= tens

For example 5 GREEN flashes of LED , indicate the radio in the 5th position.

2 RED flashes of the LED, indicate the radio in position 20.

1 RED flash of the LED followed by 2 GREEN flashes of the LED indicate the radio in position 12.

Once the radio of interest is selected to confirm the choice press SEEK + on the steering wheel.

The led of the unit will light GREEN

UNICO DUAL was born principally to recover the steering wheel commands functions dedicated to the car radio.

This module allows you to control a wide range of aftermarket car radio directly by OEM steering wheel commands.

UNICO DUAL has others functionality that are important for the integration of the aftermarket systems in the car.

AMPLI WAKE UP

This feature permits to control of the OEM amplifier so to recover all the functions of the system without bypassing the OEM device.

This function is active by default; see the table of compatibilities to know the car compatible models.

PARKING SENSORS RECOVER

This function permits to recover the OEM parking sensors. Many cars with parking sensors lose the function if the OEM car radio is substituted with an aftermarket one. This trouble

is due because the parking sensor's beeps are managed by the OEM car radio.

By setting the option 2 as parking sensors output and by connecting a buzzer to the related wire, the function is completely recovered.

This function isn't active by default; see the table of compatibilities to know the car compatible models.

SETTINGS MANAGING

Some vehicles have some regulations, like: hour setting, date setting, power ignition setting etc, that you can set trough the OEM car radio. By changing the OEM car radio with an

aftermarket one, this function is lost.

UNICO DUAL permits to recover this function.

Read the section named SETTINGS to know the car models on which is possible to do this operation and how to do it.



The unit doesn't work and the LED is off.



Check the connections of the power supply.



The unit which is correctly powered,doesn't work and the LED is off.



Check the CANBUS connections.



The unit which is correctly powered,doesn't work and the LED is off.



Check that the dip switches are correctly set.



The unit is connected correctly and the RED LED flashes quickly.



The unit hasn't been synchronized with the CANBUS, contact Paser.



The unit is connected correctly and the RED LED flashes in an irregular way.



Check the CANBUS connections.



The unit is connected correctly and the RED LED is on.



The unit has undertaken the synchronization with the CANBUS but hasn't been able to individuate the vehicle, contact Paser.



The unit is connected correctly but can't handle the K-BUS protocol.



Check that the dip switches are correctly set.



The unit is connected correctly, the GREEN LED is on but doesn't control the radio.



Check that the module's PLUG is connected to the radio's REMOTE input or contact Paser.



The unit is set resistive but buttons make wrong functions.



Reset the module and repeat the programming resistive procedure.

POWER SUPPLY

ABSORPTION AT REST

ABSORPTION WHEN WORKING

MAX CHARGE IGNITION OUTPUT

MAX CHARGE SIDELIGHTS / HANDBRAKE / REVERSE GEAR OUTPUT / ODOMETRIC SIGNAL

UNICO DUAL PLUS

CANBUS-KBUS-RESISTIVE

INSTALLATION MANUAL
