Paser PARKVIEW CF0006UNPS41 Installation Manual

Release date: 24.07.18
PARKVIEW is an electronic module easy to install, that allows you to integrate professionally a ermarket parking sensors on the vehicles equipped with
the OEM radio.
The device allows to display on the OEM radio the parking opera"on as it happens for the OEM parking sensors.
BEFORE STARTING INSTALLATION, PLEASE ENABLE THE PARKING SENSOR FUNCTION ON THE VEHICLE
Fakra 40 ways
CAN L GND
CAN H 12 VDC
Wires exit view

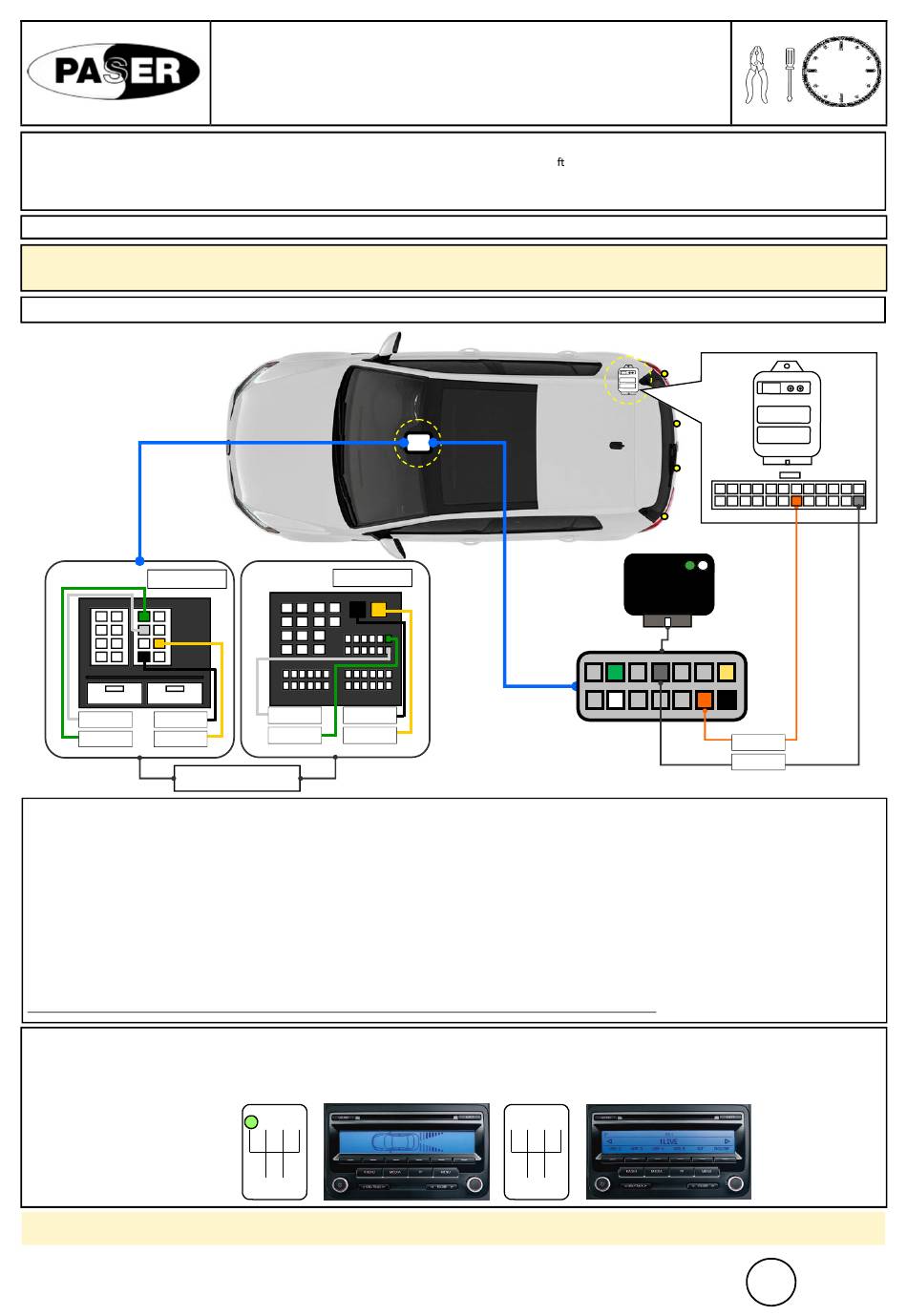

The harness supplied with PARKVIEW is split in 2 sec"ons, the first is composed by 4 wires to connect back the OEM radio of the vehicle.
In the FAKRA plug it must to connect:
YELLOW to the +12vdc posi"ve wire
BLACK to the GND nega"ve wire
GREEN to the CAN H
WHITE to the CAN L
The diagram above suggests how to make the connec"ons, FAKRA plug is seen from wires exit side.
Second sec"on of the harness is the 5 mt long extension that must to lay down "ll the boot where is located the parking sensors device.
Then connect the terminals ORANGE and GREY in the connector of the parking sensors as above described.
Please use the BUZZER of the parking sensors. To power the parking sensors please connect it to the reverse lamp.
Once the connec"on are done the system is immediately ready to work, each "me the canbus line will wake up the LED of PARKVIEW will light GREEN to
indicate the correct behaviour of the module. Then by inser"ng the reverse parking sensors will ac"vate, consequently PARKVIEW will ac"vate the visualizing
on the OEM radio. With some radio MUTE is managed directly by the radio. By removing the back gear the visualizing will be interrupted.
RCD 310
By switching on the parking sensors, Parkview led will generate some red/green flashes confirming the right working.
PARKVIEW CF0006UNPS41
CANBUS MODULE TO VIZUALIZE PDC ON CAR DISPLAY
Laserline EPS4006-D, ES404B, EPS4012, EPS4012-NU e Paser AFREPS4006-D, AFREPS404B, AFR600RAPS11.
INSTALLATION MANUAL
BY USING OFFICAL VW DISGNOSTIC DEVICE ODIS.
