Summary of Contents for DeFelsko PosiTector SHD Standard

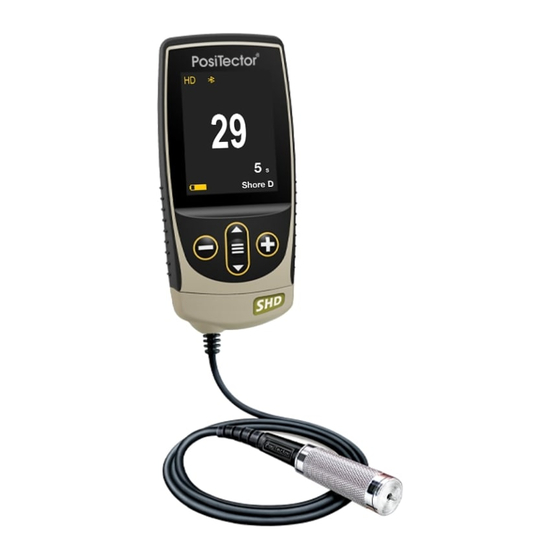

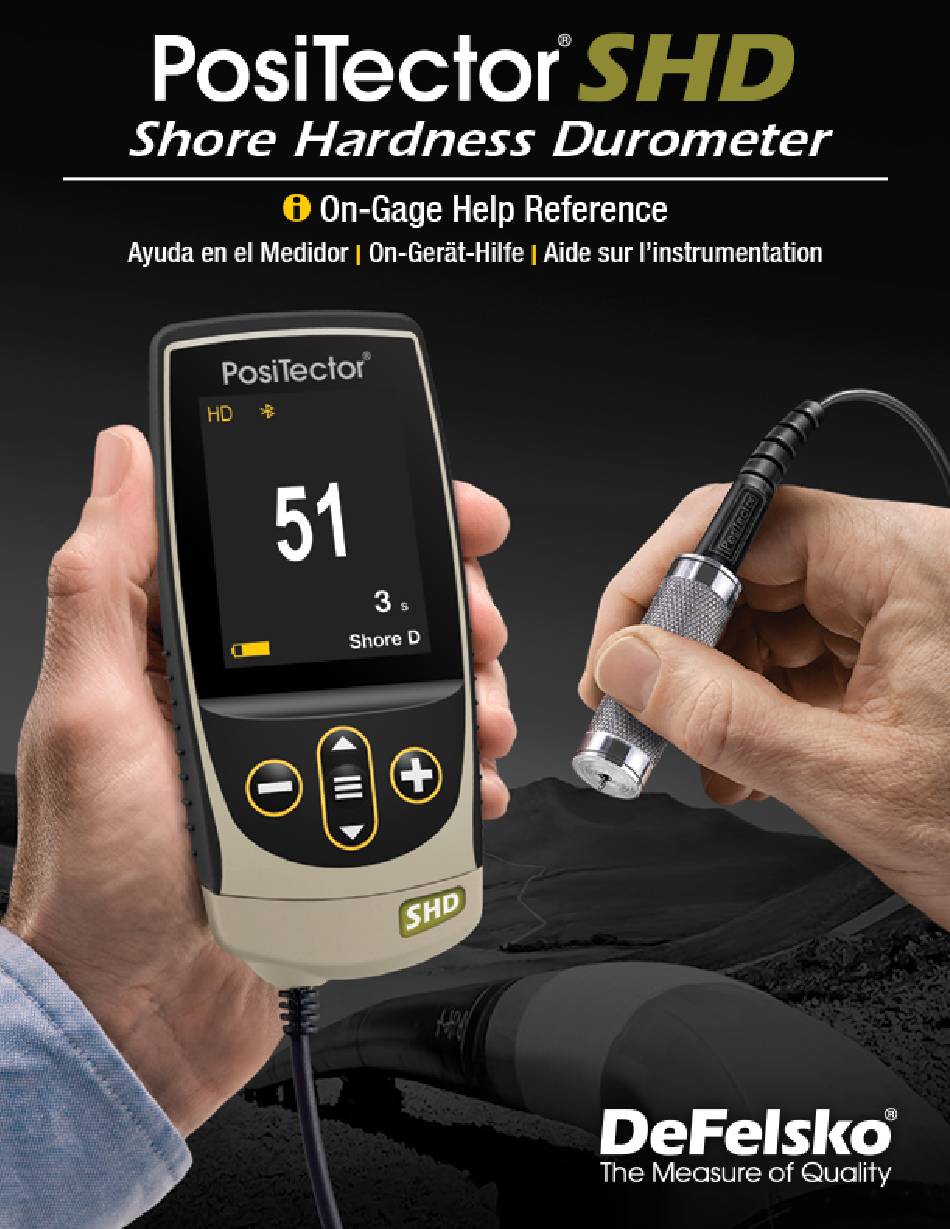

- Page 2 For an overview of the use and operation of your instrument, refer to its included Instruction Manual or download a digital PDF at www.defelsko.com/manuals. Update your gage to ensure your PosiTector includes these latest help references.
-
Page 3: Table Of Contents
Contents Memory ........................View ........................Off .......................... On .......................... Clear ........................Statistics ........................Statistics ........................ Clear ........................HiLo Alarm ......................Calibration Settings ...................... 1 Pt Adjust ......................Cal Reset ....................... Setup ........................... Set Clock ....................... Reset ........................Battery Type ......................Sound ........................ -
Page 4: Memory
Memory The PosiTector SHD Standard has internal memory storage for recording measurement data. Stored measurements can be reviewed on-screen or downloaded to a computer. Measurements are date and time-stamped. Store up to 1000 readings (per probe) into a single batch. -
Page 5: Statistics
Statistics Menu option for configuring Statistics and HiLo Alarm modes. Statistics A statistical summary will appear on the display. Remove the last reading by pressing the (-) button. Press (+) to clear statistics. Clear Clears all on-screen Statistics and HiLo tabulations. HiLo Alarm Allows Gage to visibly and audibly alert the user when readings exceed user-specified limits. -
Page 6: Calibration Settings
Calibration Settings Two steps ensure best accuracy: 1.Calibration - typically performed by the manufacturer. All probes include a Certificate of Calibration. 2.Verification of Accuracy - typically performed by the user on known reference standards such as the included test block. Calibration Calibration is the high-level, controlled and documented process of measuring traceable calibration standards over the full operating range of the probe, and verifying that the... -
Page 7: Cal Reset
known hardness value and press the center navigation button to enter the value. Cal Reset Restores the Gage back to factory calibration. The factory calibration icon will appear on the display. Page 5... -
Page 8: Setup
Setup Set configuration options for the Gage. Set Clock All measurements are date and time stamped (24 hour format) when stored into memory. It is therefore important to keep both the date and time current using this menu option. Use the Up and Down buttons to scroll, and the (-) and (+) buttons to adjust value. -
Page 9: Battery Type
Bluetooth Smart = OFF Test Time = 1 second Sound = Medium Backlight = Normal Flip Lock = OFF Touch = ON Auto Sync .net = ON USB Drive = ON Language = English Battery Type = Alkaline NOTE: Date, Time and WiFi are not affected by either Reset. Battery Type Selects the type of batteries used in the Gage from a choice of Alkaline, Lithium or NiMH (nickel-metal hydride rechargeable). -
Page 10: Flip Lock
Flip Lock Disables the Auto Rotate feature by locking the display in its current orientation. Language Converts displayed and printed words to the selected language. Gage Info Displays the model number and serial number, probe type and serial number, PosiSoft.net registration key, the amount of remaining memory for storage of readings, date and time, and software packages. -
Page 11: Connect
Connect Configure communication and connection options for the Gage. Connect the Gage to a PC/Mac using the supplied USB-C cable. View and print readings and graphs with universal web browsers/file explorers or using PosiSoft Desktop. NOTE: While connected, power is supplied through the included USB-C cable. The batteries are not used and the body will not automatically power down. -
Page 12: Json Files
Determines if a software update is available for your Gage. To perform an update the Gage must be connected to an internet connected computer running PosiSoft Desktop. See www.defelsko.com/update WARNING: The Gage will perform a Hard Reset after an update. All stored measurements will be erased from memory. -
Page 13: Help
Press (+) or touch the (i) icon to display the help. Update your gage to ensure that you have the latest on-gage help information. A formatted PDF containing all on-gage help items is available at www.defelsko.com/help. Menu Operation To access the Menu, power-up the gage, then press the center navigation button. Either the keypad or touch screen can be used to navigate the menu. -
Page 14: Power Off
Power Off To conserve battery life, the gage will automatically go to sleep after 5 minutes of inactivity and enter Sleep Mode. While in Sleep Mode the gage powers up significantly faster— convenient when moving between parts or locations. The gage will completely power off after 4 hours of inactivity.
