General Information

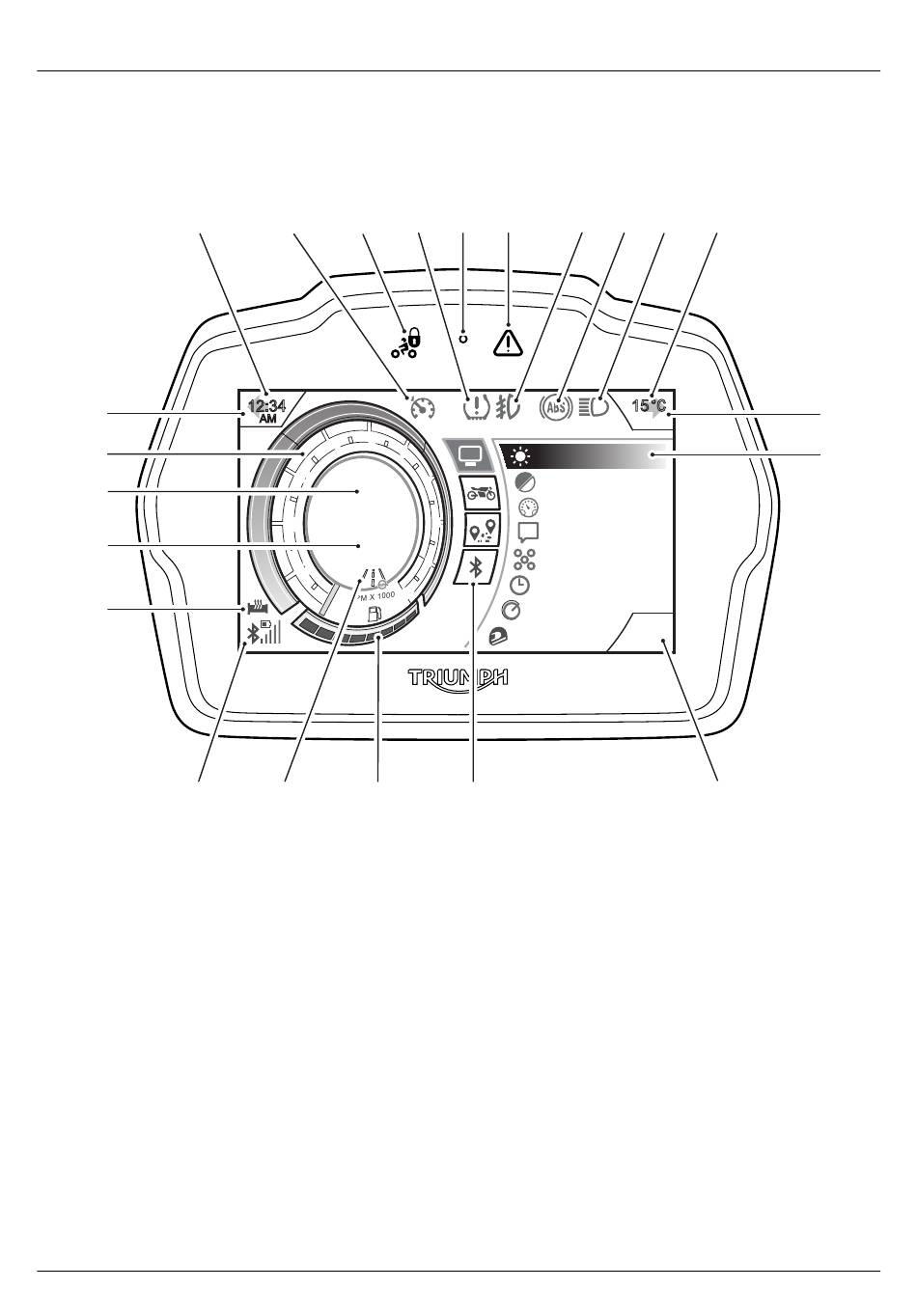

Instrument Panel Layout

The motorcycle is installed with a full color Thin Film Transistor (TFT) instrument
display with a 5 inch (12.7 cm) screen.
1
22
21
20
19
18
17
1. Clock
2. Cruise control status light
3. Alarm/immobilizer status indicator light
(alarm is an accessory kit)
4. Tire Pressure Monitoring System (TPMS)
warning light (if equipped)
5. Instrument panel sensor light
6. Warning light
7. Daytime Running Light (DRL) (if equipped)
8. ABS warning light
9. High beam warning light
10. Ambient temperature
11. Right hand turn signal and hazard
warning light
28
3
2 4
12:34
AM
5 5
4 4
6 6
0
3 3
2 2 MPH
N
1 1
10 10
0
F
E
16 15
5 6 7
+9
SET
100
Display
Brightness
Contrast
7 7
Theme
8 8
Language
Units
9 9
Date/Time
Shift Indicator
Rider Name
14
12. Selected menu item
13. Warning light location
14. Main menu symbols
15. Fuel gage
16. Current riding mode
17. Bluetooth functionality symbols
(if equipped)
18. Heated grips (if equipped)
19. Gear position
20. Speedometer
21. Tachometer
22. Left hand turn signal and hazard warning
light
8 9 10
c
15
o
13
11
12
