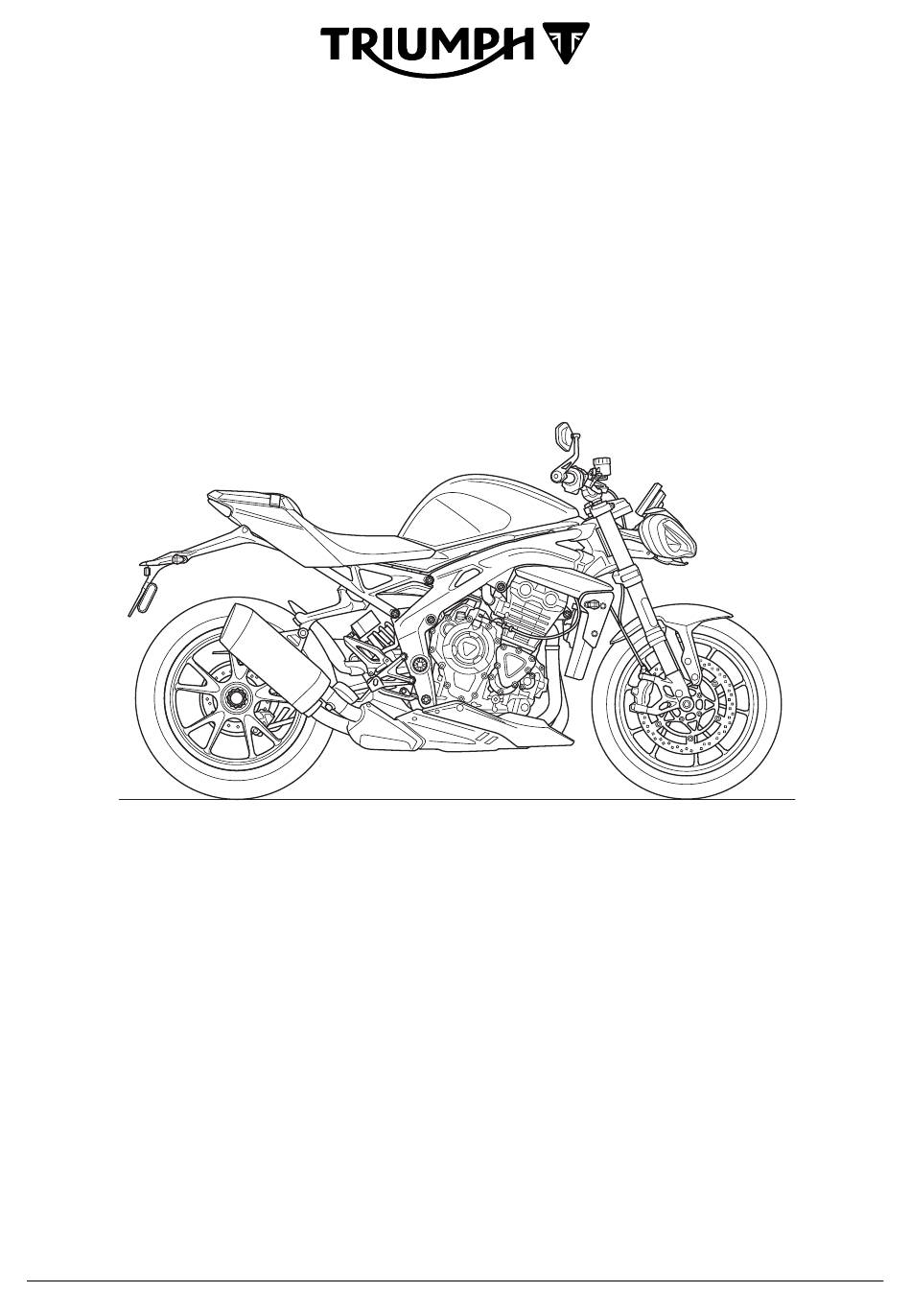

Owner's Handbook
Speed Triple 1200 RS
This handbook contains information on the Triumph Speed Triple 1200 RS
motorcycles. Always store this Owner's Handbook with the motorcycle and refer to it
for information whenever necessary.
The information contained in this publication is based on the latest information
available at the time of printing. Triumph reserves the right to make changes at any
time without prior notice, or obligation.
Not to be reproduced wholly or in part without the written permission of Triumph
Motorcycles Limited.
© Copyright 09.2020 Triumph Motorcycles Limited, Hinckley, Leicestershire, England.
Publication part number 3850072-US-EN issue 1
1

Advertisement

Table of Contents
loading

Related Manuals for Triumph Speed Triple 1200 RS

Summary of Contents for Triumph Speed Triple 1200 RS

  • Page 1 The information contained in this publication is based on the latest information available at the time of printing. Triumph reserves the right to make changes at any time without prior notice, or obligation. Not to be reproduced wholly or in part without the written permission of Triumph Motorcycles Limited.

  • Page 2: Table Of Contents

    Table of Contents This handbook contains a number of different sections. The table of contents below will help you find the beginning of each section where, in the case of the major sections, a further table of contents will help you find the specific subject required. Foreword Safety First Warning Labels...

  • Page 3: Foreword

    Triumph motorcycle correctly. locate your nearest authorized Triumph dealer, visit the Triumph web site at www. triumph. co. uk or telephone authorized distributor your country. Their address is given in the service record book that accompanies this handbook.
  • Page 4 • Removal puncturing muffler, baffles, header pipes or any other component which conducts Thank you for choosing a Triumph exhaust gases. motorcycle. This motorcycle • Removal of or puncturing of any product of Triumph's use of proven part of the intake system.
  • Page 5 Our relationship with you does not end training to ensure safe operation of this with the purchase of your Triumph. Your motorcycle. feedback on the buying and ownership This Owner's Handbook is available from...
  • Page 6 Foreword This page intentionally left blank...

  • Page 7: Safety First

    Safety First Safety First The Motorcycle Warning Warning This motorcycle is equipped with a catalytic converter below the engine, This motorcycle is designed for on- which along with the exhaust system road use only. It is not suitable for off- reaches a very high temperature road use.
  • Page 8 Safety First Fuel and Exhaust Fumes Helmet and Clothing Warning GASOLINE IS HIGHLY FLAMMABLE: Always turn off the engine when refueling. Warning Do not refuel or open the fuel filler cap while smoking or in the vicinity of any When riding the motorcycle, both open (naked) flame.
  • Page 9 Safety First Parking Warning Warning A helmet is one of the most important pieces of riding gear as it offers Always switch off the engine and protection against head injuries. You remove ignition before and your passenger's helmet should leaving the motorcycle unattended. be carefully chosen and should fit you By removing the key, the risk of use or your passenger's head comfortably...
  • Page 10 Incorrect or improper modification may adversely affect the handling, stability or other aspect of the motorcycle Triumph does not accept any liability operation, which may result in an whatsoever for defects caused by the accident causing injury or death.
  • Page 11 Safety First Riding Warning Warning This Triumph motorcycle should be operated within the legal speed limits Never ride motorcycle when for the particular road traveled. fatigued or under the influence of Operating a motorcycle at high speeds alcohol or other drugs.
  • Page 12 Safety First Handlebars and Footrests Wobble/Weave A weave is a relatively slow oscillation of the rear of the motorcycle, while Warning a wobble is a rapid, possibly strong The rider must maintain control of the shaking of the handlebar. These are motorcycle by keeping hands on the related but distinct stability problems handlebars at all times.
  • Page 13 Safety First Warning Warning Always make sure that the passenger Always replace bank angle footrests are fully extended when indicators before they are worn to carrying a passenger. their maximum limit. Never carry a passenger without them Use of a motorcycle with bank angle using the fully extended passenger indicators worn beyond the maximum footrests.

  • Page 14: Warning Labels

    Warning Labels Warning Labels Warning Label Locations The labels detailed on this and the following pages draw your attention to important safety information in this handbook. Before riding, make sure that all riders have understood and complied with all the information to which these labels relate. R.P.M.
  • Page 15 Warning Labels Warning Label Locations (continued) Caution All warning labels and decals, with the exception of the Breaking-in label, are mounted on the motorcycle using a strong adhesive. In some cases, labels are installed prior to an application of paint lacquer. Therefore, any attempt to remove the warning labels will cause damage to the paintwork or bodywork.

  • Page 16: Parts Identification

    Parts Identification Parts Identification Headlight Drive chain Front turn signal 10. Side stand Fuel filler cap Gear shift pedal Fuel tank 12. Oil filter Rear suspension unit 13. Coolant expansion tank (tools attached to cover) Tail light 14. Front brake caliper Rear turn signal 15.
  • Page 17 Parts Identification Parts Identification - Continued Rear seat/seat cowl fastener Clutch cable Battery (under seat) Oil filler cap Main and rear fuse boxes (under seat) 10. Rear brake pedal Front fuse box (under fuel tank) Muffler 12. Rear brake caliper Accessory socket Front brake fluid reservoir 13.

  • Page 18: Rider View Parts Identification

    Rider View Parts Identification Rider View Parts Identification Clutch lever Hazard warning lights switch High beam/pass button Front brake lever Daytime Running Lights (DRL) switch 10. Engine start/stop switch Cruise control adjust button Home button Mode button 12. Turn signal switch Instruments 13.

  • Page 19: Serial Numbers

    Serial Numbers Serial Numbers Vehicle Identification Number (VIN) Engine Serial Number Vehicle identification number Engine serial number The Vehicle Identification Number (VIN) The engine serial number is stamped is stamped into the right hand side of on the engine crankcase, immediately the steering head area of the frame.
  • Page 20 Serial Numbers This page intentionally left blank...

  • Page 21: General Information

    General Information General Information Table of Contents Keys Smart Key Smart Key Battery Replacement Keyless Ignition Master Ignition Switch (if equipped) Instruments Instrument Panel Layout Warning Lights Warning and Information Messages Odometer and Speedometer Tachometer Fuel Gauge Coolant Temperature Gage Ambient Air Temperature Gear Position Display Display Navigation...
  • Page 22 General Information Brake and Clutch Lever Adjusters Front Brake Lever Clutch Lever Throttle Control Cruise Control Activating Cruise Control Adjusting the Set Speed While in Cruise Control Deactivating Cruise Control Resuming the Cruise Control Set Speed Traction Control (TC) Traction Control Settings Tire Pressure Monitoring System (TPMS) (if equipped) Tire Pressures Tire Pressure Sensor Batteries...

  • Page 23: Keys

    If there is a fault with the smart key or damaged, then the chassis control the smart key battery is flat then take unit on the motorcycle will need to be the smart key to the nearest Triumph replaced. dealer to rectify. To avoid unnecessary cost and time,...
  • Page 24 General Information Battery Disposal Caution The used battery must be handed to a recycling agent who will make sure that Do not touch the contact sides of the the dangerous substances from which battery with your skin. Only touch the the battery is manufactured do not edges of the battery when you hold it.

  • Page 25: Keyless Ignition

    General Information Keyless Ignition • Press the ON/OFF button on the smart key to turn the key on. The The keyless ignition system allows the status symbol light shows green motorcycle to be started without the briefly to indicate that the smart use of a mechanical key.

  • Page 26: Master Ignition Switch (If Equipped)

    General Information Master Ignition Switch Standard Key Operation (if equipped) To turn the motorcycle on with the standard key (or the smart key if the battery is discharged): • Hold the standard key on the system sensor located on the right hand side of the motorcycle.

  • Page 27: Instruments

    General Information Instruments Table of Contents Instrument Panel Layout Warning Lights Warning and Information Messages Odometer and Speedometer Tachometer Fuel Gauge Coolant Temperature Gage Ambient Air Temperature Gear Position Display Display Navigation Riding Modes Riding Mode Selection Main Menu...

  • Page 28: Instrument Panel Layout

    General Information Instrument Panel Layout The motorcycle is installed with a full color Thin Film Transistor (TFT) instrument display with a 5 inch (12.7 cm) screen. 9 10 12:34 Display Brightness Contrast Theme Language Units Date/Time Shift Indicator Rider Name Clock 12.

  • Page 29: Warning Lights

    If the MIL flashes when the ignition the engine starts, as described in the is switched ON contact an authorized following pages). Triumph dealer as soon as possible to For additional warning and information have the situation rectified. In these messages, see page 34.
  • Page 30 Immobilizer/Alarm Indicator Light off. The light will continue to flash after engine start-up until the motorcycle This Triumph motorcycle is equipped first reaches a speed exceeding 6 mph with an engine immobilizer which is (10 km/h) when it will go off.
  • Page 31 Contact an authorized Do not continue to ride for longer Triumph dealer as soon as possible to than is necessary with the engine have the fault checked and rectified. management system...
  • Page 32 General Information Traction Control (TC) Disabled If the DRL switch is in the daytime running lights position, then press and Warning Light hold the high beam button to turn the The TC disabled warning light high beam on. It will remain on as long should not illuminate unless as the button is held in and will turn off traction control is switched...
  • Page 33 General Information Tire Pressure Warning Light Warning (if equipped with TPMS) Do not ride for longer than necessary Warning in poor ambient light conditions with the Daytime Running Lights (DRL) in Stop motorcycle tire use. pressure warning light illuminates. Riding with the Daytime Running Do not ride the motorcycle until the Lights when dark, in tunnels or where tires have been checked and the tire...

  • Page 34: Warning And Information Messages

    General Information Warning and Information Messages When the warning light is illuminated, the TPMS symbol indicating which is It is possible for multiple warning and the deflated tire and its pressure will information messages to be shown automatically be shown in the display when a fault occurs.

  • Page 35: Odometer And Speedometer

    General Information The odometer shows the total distance SERVICE OVERDUE - CONTACT that the motorcycle has traveled. The DEALER odometer is only shown in the Service (amber indicator) information tray. CAUTION: LOW AIR TEMPERATURE - RISK OF 12:34 SURFACE ICE 10k MI (blue or white indicator) Service in:...

  • Page 36: Fuel Gauge

    General Information Fuel Gauge Coolant Temperature Gage The fuel gage indicates the amount of The coolant temperature gage indicates fuel in the tank from E (empty tank) to the temperature of the engine coolant. F (full tank). 12:34 12:34 High RPM X 1000 RPM X 1000 COOLANT...

  • Page 37: Ambient Air Temperature

    General Information Frost Symbol Caution Warning Stop the engine immediately if the high coolant temperature warning Black ice (sometimes called clear ice) light illuminates. restart can form at temperatures several the engine until the fault has been degrees above freezing, 32°F (0°C), rectified.

  • Page 38: Gear Position Display

    General Information Gear Position Display Display Navigation The gear position display indicates table below describes which gear (one to six) has been instrument icons and buttons used to engaged. When the transmission is in navigate through the instrument menus neutral (no gear selected), the display described in this handbook.

  • Page 39: Riding Mode Selection

    General Information Riding Modes Riding Mode Selection The riding modes allow adjustment Warning of the throttle response (MAP), Anti- lock Braking System (ABS) and Traction The selection of riding modes while the Control (TC) settings to suit differing motorcycle is in motion requires the road conditions and rider preferences.
  • Page 40 General Information Note Warning The riding mode will default to ROAD when the ignition is switched ON, if the After selecting a riding mode, operate RIDER mode was active the last time the the motorcycle in an area free from ignition was switched OFF with TC set to traffic to gain familiarity with the new OFF in the required mode.

  • Page 41: Main Menu

    General Information To change the selected riding mode: riding mode change completed, the riding mode icon will • Press the joystick down or up, or alternate between the previous riding repeatedly press the MODE button mode and the newly selected riding until the required riding mode is mode until the change is complete or it highlighted in the center of the...
  • Page 42 Bluetooth® (if equipped) information. This menu allows configuration of the Bluetooth® connectivity. For more information, see the My Triumph Connectivity Handbook. The My Triumph Connectivity Handbook is also available on the Internet at: https://www. triumphinstructions. com/ Enter the part number 'A9820200' into the search field to access the handbook.
  • Page 43 General Information Display - Brightness Display - Contrast Brightness menu allows The Contrast menu allows the display brightness of the display screen to be screen contrast to be adjusted. adjusted. There are three options available: To adjust the brightness of the display •...
  • Page 44 General Information Display - Language Note Do not cover the light sensor on the Language menu allows display screen as this will stop the preferred language to be shown as the screen brightness and contrast from instrument display language. working correctly. Display - Themes The Theme menu allows a different theme to be applied to the display...
  • Page 45 General Information Display - Units Display - Date and Time The Units menu allows the selection of a The Date and Time option allows the preferred unit of measurement. date and time to be adjusted. To change the units of measurement: To set the date and time format: •...
  • Page 46 General Information Display - Shift Indicator Display - Rider Name The Shift Indicator menu allows the The Rider Name display allows the adjustment of the gear shift indicator. rider name to be entered in to the instrument panel system and shown in the welcome/start up display screen.
  • Page 47 General Information Bike Menu Bike - Riding Aids The Bike menu allows configuration of Riding Aids menu allows the different features of the motorcycle. configuration of the current riding mode while the motorcycle is in motion. For information on the available options for each riding mode, see page 50.
  • Page 48 General Information Bike - TPMS (if equipped) Bike - Warnings warnings information Warning messages are shown in the main display. An example is shown below. Stop motorcycle tire pressure warning light illuminates. Do not ride the motorcycle until the tires have been checked and the tire pressures are at their recommended pressure when cold.
  • Page 49 Press the joystick center to confirm. • The relevant setting options for the selected riding mode are now shown. The Settings options include: • Riding Modes • Traction Control • Triumph Shift Assist • Turn signals • Factory Reset.
  • Page 50 General Information Riding Mode Configuration Refer to the following table for the ABS, MAP and TC options available for each riding mode. Riding Mode RAIN ROAD SPORT TRACK RIDER Anti-lock Braking System (ABS) Road Track MAP (Throttle Response) Rain Road Sport Traction Control (TC) Rain...
  • Page 51 General Information ABS Settings Warning If the ABS is disabled, the brake system will function as a non-ABS braking system. In this situation braking too hard will cause the wheels to lock, and may result in loss of motorcycle control and an accident. ABS Settings Descriptions Optimal ABS setting for road use.
  • Page 52 General Information MAP Settings MAP Settings Descriptions ROAD Standard throttle response. Reduced throttle response when compared to the ROAD setting. For use in RAIN wet or slippery conditions. SPORT Increased throttle response when compared to the ROAD setting. Traction Control Settings Warning If the traction control is disabled, the motorcycle will handle as normal but without traction control.
  • Page 53 The clutch must be used for stopping The self-canceling function and pulling away. is on. Triumph Shift Assist will not operate if A short press on the turn the clutch is applied or if an up-shift is signal switch activates attempted by mistake when in 6th gear.
  • Page 54 General Information Settings - Factory Reset Journey - Trip Meter The Factory Reset option allows the There are two trip meters that can be Settings options to be reset to the accessed and reset in the information default setting. tray. Journey Menu The Journey menu allows configuration of the motorcycle journey information.
  • Page 55 General Information Journey - Trip Settings Journey - Lap Timer The Trip Settings menu allows the The Lap Timer menu allows a certain trip meters to be reset manually or distance/lap to be timed and compared automatically. against a previously timed lap. To reset the trip meters: To start a lap: •...
  • Page 56 General Information Journey - Lap Timer Review • A short press on the joystick opens the list of lap times for the selected The Lap Timer Review menu shows any session. stored sessions and lap times. Up to five sessions and up to 24 laps per session can be stored.
  • Page 57 General Information Journey - Lap Timer Settings Journey - Fuel Status The Lap Timer Settings menu allows The Fuel Status menu shows fuel certain details to be displayed in the Lap consumption information. Timer screens. After refueling, the fuel gage and range to empty information will be updated only while...

  • Page 58: Right Handlebar Switches

    Bluetooth® features, My Triumph Connectivity Handbook. The My Triumph Connectivity Handbook is also available on the Internet at: https://www. triumphinstructions. com/ Enter the part number 'A9820200' into the search field to access the handbook. Hazard warning lights switch...

  • Page 59: Steering Lock Button

    General Information Steering Lock Button STOP Position The STOP position stops the engine. Warning Note For reasons of security and safety, Although engine stop position always make sure the steering lock stops the engine, it does not turn off is on when leaving the motorcycle all the electrical circuits and may cause unattended.

  • Page 60: Left Handlebar Switches

    General Information Left Handlebar Switches The daytime running lights and low beam headlights are operated manually using the DRL switch. Push the switch forward to the top for DRL mode, and push the switch rearward to the bottom for low beam headlight mode. Warning Do not ride for longer than necessary in poor ambient light conditions with...

  • Page 61: Turn Signal Switch

    General Information Press and hold the MODE button to • Down - scroll the menu from the top activate the ROAD mode, and enable to the bottom ABS and traction control, if disabled. • Left - scroll the menu to the left For more information on riding mode •...

  • Page 62: Brake And Clutch Lever Adjusters

    General Information Brake and Clutch Lever Models without Daytime Running Lights (DRL) Adjusters Press the high beam button to switch the high beam on. Each press of the Warning button will swap between dip and high beam. Do not attempt to adjust the levers with the motorcycle in motion as this Note may lead to loss of motorcycle control...

  • Page 63: Front Brake Lever

    General Information Front Brake Lever Ratio Adjuster The ratio adjuster moves the brake Two adjusters are mounted to the master cylinder push rod to the left or brake lever; a span adjuster and a ratio right in 0.04 in (1 mm) increments from adjuster.

  • Page 64: Clutch Lever

    MIL illuminated, limp-home mode with the engine at a fast idle condition only • MIL illuminated, engine will not start. For all of the conditions mentioned contact an authorized Triumph dealer as soon as possible to have the fault checked and rectified.

  • Page 65: Cruise Control

    General Information Cruise Control Warning Warning Only operate this Triumph motorcycle at high speed in closed-course, on- Cruise control must only be used road competition or on closed-course where you can ride safely at a steady racetracks. speed. High speed operation should only...

  • Page 66: Activating Cruise Control

    General Information The cruise control buttons are located • Once these conditions have been on the left hand switch housing and can met, press the SET/- button to be operated with minimum movement activate cruise control. The cruise by the rider. control symbol will be shown in a green light in the TFT display to indicate that cruise control is now...

  • Page 67: Adjusting The Set Speed While In Cruise Control

    General Information Adjusting the Set Speed While in Deactivating Cruise Control Cruise Control The cruise control can be deactivated by one of the following methods: To adjust the set speed while in cruise control, press and release the: • Roll the throttle twist grip fully forward.

  • Page 68: Resuming The Cruise Control Set Speed

    General Information Traction Control (TC) Resuming the Cruise Control Set Speed Warning Warning Traction control is not a substitute for When resuming cruise control, always riding appropriately for the prevailing make sure that the traffic conditions road and weather conditions. are suitable for the set speed.

  • Page 69: Traction Control Settings

    53. It must be installed by your authorized If traction control is turned OFF, the TC Triumph dealer. disabled warning light will be illuminated. The TPMS display on the instruments The traction control defaults to ON after...

  • Page 70: Tire Pressures

    Always have your tires mounted by your authorized Triumph dealer and inform them that tire pressure sensors are installed on the wheels. TPMS warning light Rear tire pressure indicator Front tire pressure indicator Caution...

  • Page 71: Tire Pressure Sensor Batteries

    TPMS symbol will flash continuously. Contact When replacing tires, always have an your authorized Triumph dealer to have authorized Triumph dealer fit your tires the sensor replaced and the new serial and make sure they are aware that...

  • Page 72: Fuel

    If 'knocking' or 'pinging' occurs at a steady engine speed under normal Engine Calibration load, use a different brand of gasoline certain circumstances engine or gasoline which has a higher octane calibration may be required. Always rating. refer to your authorized Triumph dealer.
  • Page 73 This includes any under the names 'gasohol', 'Ethanol appliance with a pilot light. enhanced', or 'contains Ethanol'. This fuel may be used in your Triumph - Never fill the tank until the fuel level motorcycle. rises into the filler neck. Heat from...

  • Page 74: Fuel Tank Cap

    If the keyless fuel tank cap doesn't component towards the front of the open, take your motorcycle to the motorcycle. nearest Triumph dealer. If this is not possible then follow the emergency access procedure. Emergency Access Warning Make sure the motorcycle is stabilized and adequately supported.

  • Page 75: Filling The Fuel Tank

    Contaminated fuel may cause damage • Reinstall the fuel tank cap fasteners to fuel system components. and tighten to 22.1 lbf in (2.5 Nm). • Take the motorcycle to the nearest Triumph dealer to check and rectify.

  • Page 76: Seats

    General Information Seats Fill the fuel tank slowly to help prevent spillage. Do not fill the tank to a level above the bottom of the filler neck. Warning This will make sure there is enough air space to allow for fuel expansion if the Make sure the motorcycle is stabilized fuel inside the tank expands through and adequately supported.

  • Page 77: Passenger Seat/Seat Cowl Removal

    General Information Passenger Seat/Seat Cowl Removal Note Do not pull the passenger seat upwards To remove the passenger seat or seat during removal. cowl (referred to as passenger seat for this procedure): • Release the passenger seat cap. • Remove the passenger seat cap fastener.

  • Page 78: Passenger Seat/Seat Cowl Installation

    General Information Passenger Seat/Seat Cowl • Install and tighten the passenger seat fastener to 44 lbf in (5 Nm). Installation Warning Never ride the motorcycle with the seat fasteners loose or removed, as both seats will not be secure and may move.

  • Page 79: Rider's Seat Installation

    General Information Rider's Seat Installation • Remove rider's seat fasteners at the rear of the seat. Warning Never ride the motorcycle with the seat fasteners loose or removed, as both seats will not be secure and may move. The rider's and passenger seats are only correctly retained and supported once the seat fasteners are correctly tightened.

  • Page 80: Side Stand

    General Information Side Stand • Install the two rider's seat fixings to the rear of the seat and tighten to 44 lbf in (5 Nm). Warning The motorcycle is equipped with an interlock system to prevent it from being ridden with the side stand in the down position.

  • Page 81: Tool Kit And Owner's Handbook

    General Information Tool Kit and Owner’s When using the side stand, always turn the handlebars fully to the left and Handbook leave the motorcycle in first gear. Owner's Handbook Whenever the side stand is used, before The Owner's Handbook is supplied with riding, always make sure that the side the motorcycle.

  • Page 82: Breaking-In

    General Information Breaking-In Both during and after breaking-in has been completed: • Do not overrev the engine when cold; R.P.M. • Do not lug the engine. Always Breaking-in is the name given to the downshift before the engine begins process that occurs during the first to 'struggle';...

  • Page 83: Daily Safety Checks

    Maintenance both reservoirs (page 126). and Adjustment section or see your authorized Triumph dealer for the action Front Forks: Smooth action. No leaks required to return the motorcycle to a from fork seals (page 132).
  • Page 84 General Information This page intentionally left blank...

  • Page 85: How To Ride The Motorcycle

    How to Ride the Motorcycle How to Ride the Motorcycle Table of Contents Stopping the Engine Starting the Engine Moving Off Shifting Gears Triumph Shift Assist (TSA) (if equipped) Braking Anti-lock Braking System (ABS) Optimized Cornering ABS Parking Considerations for High Speed Operation...

  • Page 86: Stopping The Engine

    How to Ride the Motorcycle Stopping the Engine Starting the Engine Caution Warning engine should normally Never start the engine or run the stopped by turning the ignition switch engine in a confined area. to the OFF position. Exhaust fumes are poisonous and can engine stop switch...
  • Page 87 A transponder is installed within the key any further attempts. Consult your to turn off the engine immobilizer. Only authorized Triumph dealer. have one of the ignition keys near the motorcycle. Having two ignition keys Continued attempts at starting the...

  • Page 88: Moving Off

    How to Ride the Motorcycle Moving Off Shifting Gears To move the motorcycle: Warning • Pull in the clutch lever and select first gear. Take care to avoid opening the throttle • Open the throttle a little and let out too far or too fast in any of the lower the clutch lever slowly.

  • Page 89: Triumph Shift Assist (Tsa) (If Equipped)

    Use the clutch to shift gears in the normal way otherwise damage to the engine or gear box may occur. Contact a Triumph dealer as soon as possible to have the fault checked and rectified. Caution Shifting gears must be completed with...

  • Page 90: Braking

    When the rider applies the front brake, selecting neutral from any other gear. a small amount of rear brake is also Triumph Shift Assist will not operate if: applied, allowing for balancing braking. • The clutch is applied.
  • Page 91 Riders should practice emergency braking in a traffic-free area. Triumph strongly recommends that all riders take a course of instruction, which includes advice on safe brake operation. Incorrect brake technique could result in loss of control and an accident.
  • Page 92 How to Ride the Motorcycle Warning Warning your safety, always exercise Riding with your foot on the brake extreme caution when braking, pedal or your hands on the brake lever accelerating turning may actuate the brake light, giving a improper action can cause loss of false indication to other road users.

  • Page 93: Anti-Lock Braking System (Abs)

    This can result in loss of control and Contact an authorized Triumph dealer an accident. as soon as possible to have the fault Under some circumstances checked and rectified.

  • Page 94: Optimized Cornering Abs

    How to Ride the Motorcycle Warning Warning Continued operates comparing The potential increased control that relative speed of the front and rear optimized cornering braking wheels. system allows under certain conditions is not a substitute for good riding Use of non-recommended tires can practice.

  • Page 95: Parking

    Do not continue to ride for longer than is necessary with the warning light Warning illuminated. In the event of a fault, contact an authorized Triumph dealer Gasoline extremely flammable as soon as possible to have the fault and can be explosive under certain checked and rectified.
  • Page 96 How to Ride the Motorcycle • Do not park on a lateral (sideways) Warning incline of greater than 6° and never park facing downhill. Do not park on a soft or steeply • Do not leave the switch in the P inclined surface.

  • Page 97: Considerations For High Speed Operation

    Warning from those you are familiar with at legal road speeds. This Triumph motorcycle should be operated within the legal speed limits Do not attempt high speed operation for the particular road traveled. unless you have received sufficient...
  • Page 98 How to Ride the Motorcycle Engine Oil Luggage Check that the engine oil level is correct. Make sure that any luggage containers Make sure that the correct grade and are closed, locked and securely installed type of oil is used when topping off. on the motorcycle.

  • Page 99: Accessories, Loading And Passengers

    Triumph does not accept any liability whatsoever for defects caused by the installation non-approved parts, accessories...
  • Page 100 Make attempted even where the legal speed sure the Triumph motorcycle model limit permits this. that the Triumph accessory is to be installed on, is listed as approved for The presence of accessories and/ the genuine Triumph accessory. For or payload will cause changes in...
  • Page 101 Accessories, Loading and Passengers Loading Warning Warning Never attempt to store any items between the frame and the fuel tank. Always make sure that any loads This can restrict the steering and will carried are evenly distributed on both cause loss of control leading to an sides of the motorcycle.
  • Page 102 Accessories, Loading and Passengers Warning Warning If the passenger seat is used to carry Do not carry a passenger unless they small objects, they must not exceed are tall enough to reach the footrests 11 lb (5 kg) in weight, must not impair provided.

  • Page 103: Maintenance

    Maintenance Maintenance Table of Contents Scheduled Maintenance Scheduled Maintenance Table Engine Oil Engine Oil Level Inspection Engine Oil and Filter Change Disposal of Used Engine Oil and Oil Filters Engine Oil Specification and Grade (10W/40 & 10W/50) Cooling System Coolant Level Inspection Coolant Level Adjustment Coolant Change Clutch...
  • Page 104 Maintenance Rear Suspension Rear Suspension Setting Chart Compression Damping Adjustment Rebound Damping Adjustment Bank Angle Indicators Tires Tire Inflation Pressures Tire Pressure Monitoring System (TPMS) (if equipped) Tire Wear Minimum Recommended Tread Depth Tire Replacement Battery Battery Removal Battery Charging Battery Maintenance Battery Storage Battery Disposal...

  • Page 105: Scheduled Maintenance

    Special tools, knowledge and training are required in order to correctly carry out the maintenance items listed in scheduled maintenance chart. Only an authorized Triumph dealer will have this knowledge and equipment. Incorrect or neglected maintenance lead dangerous riding condition. Always have an authorized...
  • Page 106 ABS and/or MIL warning lights 10,000 miles (16,000 km) per year are illuminated. Contact an authorized must have the annual maintenance Triumph dealer as soon as possible to and the specified mileage based have the fault checked and rectified. items carried out together.

  • Page 107: Scheduled Maintenance Table

    Maintenance Scheduled Maintenance Table Odometer Reading in Miles or Time Period, whichever comes first First Annual Mileage Based Service Service Service Operation description 600 Mile/ 10,000/ 20,000 Mile 40,000 Mile Daily 6 Month Year 30,000 Mile Service Service Service Service Lubrication Engine and oil cooler - check for leaks •...
  • Page 108 ECM - check for latest calibration download using the Triumph diagnostic tool Autoscan - carry out a full Autoscan using the • • • • • Triumph diagnostic tool (print a customer copy) Carry out all outstanding Service Bulletin and • • • • • warranty work •...

  • Page 109: Engine Oil

    Maintenance Engine Oil Warning If the engine has recently been running, the exhaust components may be hot to the touch. Contact with the hot components may cause damage to exposed skin. Warning To avoid skin damage, always allow the hot parts to cool before touching the Motorcycle operation with insufficient, exhaust system.

  • Page 110: Engine Oil And Filter Change

    Maintenance Engine Oil and Filter Change Note An accurate indication of the level of Warning oil in the engine is only shown when the engine is at normal operating Prolonged or repeated contact with temperature and the motorcycle is engine oil can lead to skin dryness, upright (not on the side stand).
  • Page 111 Maintenance The engine oil and engine oil filter • Note the orientation of the wire must be replaced in accordance with guide routing scheduled maintenance requirements. harness and hoses through the wire guide for installation. • Warm up the engine thoroughly, and then stop the engine and •...
  • Page 112 B01165 Oil drain plug Oil filter • Unscrew and remove the oil filter using Triumph service tool T3880313 - Oil Filter Wrench. Dispose of the old oil filter in an environmentally friendly way. B01551 Side stand switch connector •...

  • Page 113: Disposal Of Used Engine Oil And Oil Filters

    Maintenance • Install and tighten the fastener to Caution 89 lbf in (10 Nm). Raising the engine speed above idle before the oil reaches all parts of the engine can cause engine damage or seizure. Only raise engine speed after running the engine for 60 seconds to allow the engine oil to circulate fully.

  • Page 114: Engine Oil Specification And Grade (10W/40 & 10W/50)

    Technology (known as OAT) coolant when it leaves the factory. It is colored orange, and contains a 50% solution of monoethylene glycol based antifreeze. D2053 coolant, as supplied by Triumph, provides freeze protection to -40°C (-40°F). Oil Viscosity Temperature Range Do not add any chemical additives to the engine oil.
  • Page 115 Maintenance Corrosion Inhibitors Note D2053 OAT coolant, as supplied by Warning Triumph, is premixed and does not need to be diluted prior to filling or topping D2053 OAT coolant contains corrosion off the cooling system. inhibitors antifreeze suitable for aluminum engines and radiators.

  • Page 116: Coolant Level Inspection

    Maintenance Coolant Level Inspection To inspect the coolant level: • Position the motorcycle on level The expansion tank can be viewed from ground and in an upright position. the left hand side of the motorcycle. The coolant level within the expansion tank •...

  • Page 117: Coolant Change

    Press firmly to secure the cover. • Grasp the cover and make sure that it is fully retained. Coolant Change It is recommended that the coolant is changed by an authorized Triumph dealer in accordance with scheduled B01160 Expansion tank cover maintenance requirements. Spigots...

  • Page 118: Clutch

    Check the radiator hoses for cracks maintenance requirements. or deterioration, and tension clips for tightness in accordance with scheduled maintenance requirements. Have your authorized Triumph dealer replace any defective items. Check the radiator grille and fins for obstructions insects, leaves mud.

  • Page 119: Clutch Cable Adjustment

    Maintenance • If there is an incorrect amount of • correct adjustment cannot free play, adjustments must be be made using the clutch lever made. adjuster, clutch cable adjuster at the lower end of the • correct adjustment cannot cable. be made using the clutch lever adjuster, clutch...

  • Page 120: Drive Chain

    If the chain is badly worn or incorrectly adjusted (either too loose or too tight) the chain could jump off the sprockets or break. Therefore, always replace worn or damaged chains using genuine Triumph parts supplied by an authorized Triumph dealer.

  • Page 121: Drive Chain Free Movement Inspection

    Maintenance Drive Chain Free Movement Drive Chain Free Movement Inspection Adjustment Warning Make sure the motorcycle is stabilized and adequately supported. A correctly supported motorcycle will help prevent it from falling. unstable motorcycle fall, causing injury to the operator or damage to the motorcycle.

  • Page 122: Drive Chain And Sprocket Wear Inspection

    • Retighten pinch bolt two to 21 lbf ft Use a genuine Triumph supplied drive (28 Nm). chain as specified in the Triumph Parts Catalog. Warning The use of non-approved drive chains may result in a broken drive chain or...

  • Page 123: Brakes

    • If there is any irregularity, have the drive chain and/or the sprockets replaced by an authorized Triumph dealer. • Reinstall the chain guard, tightening the fixings to 53 lbf in (6 Nm).

  • Page 124: Brake Wear Inspection

    Maintenance Brake Wear Inspection Brake pads for this model supplied by Triumph will have the carrier plate at least 0.18 in (4.5 mm) thick. Always have Warning replacement brake pads supplied and installed by your Triumph dealer. If mounting new proprietary brand...

  • Page 125: Brake Pad Wear Compensation

    Triumph dealer must Because of this, always replace brake rectify the fault before riding. fluid in accordance with scheduled Riding with defective brakes may lead maintenance requirements.

  • Page 126: Front Brake Fluid Level Inspection And Adjustment

    Triumph dealer for advice before riding. Reduce speed and do not continue to Riding with depleted brake fluid levels, ride for longer than is necessary with or with a brake fluid leak is dangerous the indicator light illuminated.
  • Page 127 Maintenance To adjust the front brake fluid level: • Hold assembly together and position the reservoir cap, • Loosen the reservoir cap retaining diaphragm seal and reservoir cap screws and remove the reservoir retaining screws onto the reservoir. cap and the diaphragm seal. •...

  • Page 128: Rear Brake Fluid Level Inspection And Adjustment

    Re-install the reservoir cap making reservoir, consult your authorized sure that the diaphragm seal is Triumph dealer for advice before riding. correctly installed. Riding with depleted brake fluid levels, or with a brake fluid leak is dangerous Brake Light Switches will...

  • Page 129: Mirrors

    Maintenance Mirrors Warning Warning Incorrect adjustment of the bar end mirrors may cause the mirror arm Operation of the motorcycle with to contact the fuel tank, brake or incorrectly adjusted mirrors clutch levers or other parts of the dangerous. motorcycle. Operation of the motorcycle with This will restrict brake or clutch incorrectly adjusted mirrors will result...

  • Page 130: Steering/Wheel Bearings

    Maintenance Steering/Wheel Bearings The bar end mirrors will be set by your authorized Triumph dealer and will not normally require any adjustment. Should Caution adjustment be necessary, do not rotate the mirror beyond 75°, measured from prevent risk injury from the vertical section of the mirror arm.

  • Page 131: Wheel Bearings Inspection

    Inspecting the Steering for Free Play smoothly, have your authorized Triumph dealer inspect the wheel bearings. To inspect the steering: The wheel bearings must be inspected •...

  • Page 132: Front Suspension

    Refer tables further information or consult your authorized Triumph dealer. The motorcycle is delivered from the factory with the front suspension set at the Solo (normal) riding setting, as shown in the relevant front suspension setting chart.

  • Page 133: Spring Preload Adjustment

    Maintenance Front Suspension Setting Charts To change the spring preload: • Rotate adjuster clockwise Loading Spring Preload increase preload, Normal counterclockwise decrease Comfort preload. (Softer) Solo Riding • Always count number Sport (Firmer) clockwise turns from fully Track counterclockwise position and set Rider and Passenger both forks to the same settings.

  • Page 134: Rebound Damping Adjustment

    • Using a 0.12 in (3 mm) Allen key, information or consult your authorized rotate the adjuster clockwise to Triumph dealer. increase, or counterclockwise to decrease. The motorcycle is delivered from the • Always count the number of clicks...

  • Page 135: Compression Damping Adjustment

    Maintenance Rebound Damping Adjustment Rear Suspension Setting Charts rebound damping adjuster Rebound Compression Loading is accessible from the rear of the Damping Damping motorcycle. It is situated close to the Comfort rear suspension reservoir. (Softer) Normal Solo Riding Sport (Firmer) Track Rider and Passenger Number of clicks counterclockwise from the...

  • Page 136: Bank Angle Indicators

    Maintenance Bank Angle Indicators Tires Warning Always replace bank angle indicators before they are worn to their maximum limit. Use of a motorcycle with bank angle This motorcycle equipped with indicators worn beyond the maximum tubeless tires, valves and wheel rims. limit will allow the motorcycle to be only tires...

  • Page 137: Tire Inflation Pressures

    Always have your tires mounted Both conditions are dangerous as they by your authorized Triumph dealer may cause loss of control leading to and inform them that tire pressure an accident. sensors are installed on the wheels. Warning Caution...

  • Page 138: Tire Wear

    The cold inflation pressures may lead to loss of control and an specified by Triumph take account of accident. this. When tubeless tires, used without a Only...

  • Page 139: Tire Replacement

    'TUBELESS' may be suitable for use from your authorized Triumph dealer, or with an inner tube. Where this is the on the Internet at www. triumph. co. uk. case, the tire wall will be marked with Always have tires and inner tubes...
  • Page 140 If tire damage is suspected, such tubeless rims. as after striking the curb, ask your authorized Triumph dealer to inspect The bead will not seat and the tires the tire both internally and externally. could slip on the rims, causing rapid...

  • Page 141: Battery

    Triumph dealer. Warning Only use self-adhesive weights. Clip on weights may damage the wheel, tire or Never attempt to open, disassemble, or inner tube resulting in tire deflation, pierce a lithium-ion battery.

  • Page 142: Battery Removal

    Maintenance Warning Warning If the battery is in use or being Before disconnecting the battery or recharged and it gives off an odor, removing a fuse, note and record the generates heat, becomes deformed, rider mode settings. discolored or appears abnormal in Once battery been...
  • Page 143 Maintenance To remove the battery: Caution Continued • Remove the seat, see page 78. A battery short circuit will cause • Turn the ignition to the OFF position irreparable damage to the battery and and wait at least 2 minutes for the or motorcycle.

  • Page 144: Battery Charging

    Hook charger, checking the battery voltage or battery charging, contact your local authorized Triumph dealer. Lithium-ion batteries are pre-charged to 75% of capacity prior to shipping by rail, road or sea and 30% capacity for air freight.

  • Page 145: Battery Maintenance

    Maintenance lithium technology A battery charger will limit the voltage lower self-discharge rate than lead between 14.0-14.7 Volts when charging. acid battery types, this lithium-ion The battery cannot be fully charged if battery can be stored for longer before the charging voltage is less than 14.0 recharging is required.

  • Page 146: Battery Storage

    Maintenance Battery Storage Warning To store a lithium-ion battery correctly, do the following: Lithium-ion batteries are regarded as Class 9 hazardous products. • Always store battery approximately 100% state of charge. incinerate lithium-ion battery. • Always make sure that the charge state of the battery is monitored DO NOT crush a lithium-ion battery.

  • Page 147: Battery Installation

    Maintenance Warning Warning Never attempt to open, disassemble, or Make sure the battery busbar, positive pierce a lithium-ion battery. and negative terminals do not come into contact with each other. Never strike, throw, or subject the battery to severe physical shock. Do not reverse the positive (+) or negative (-) terminals.
  • Page 148 Maintenance • Apply a light coat of grease to the • Install the front brace, secure with terminal to prevent corrosion. the two fixings and tighten to 71 lbf in (8 Nm). B01222_2 Battery positive lead cover clip B01219 Battery positive lead busbar cover cap Fasteners Front brace •...

  • Page 149: Fuel Tank

    Maintenance Fuel Tank Warning The fuel tank must be carefully raised Draining or extraction of fuel from a to access the front fuse box. Complete fuel tank must be carried out in a well the following procedures for raising and ventilated area.

  • Page 150: Reinstalling The Fuel Tank

    Maintenance • Loosen but do not fully remove the • With the aid of an assistant, tilt the rear fixings from both sides of the fuel tank rearward to gain access rear bracket. to the underside and the front fuse box.
  • Page 151 Maintenance • Install the fuel tank bracket fixings Warning to the frame and tighten to 89 lbf in (10 Nm). To help reduce hazards associated with refueling, always observe the following fuel safety instructions: - Gasoline (fuel) is highly flammable and can be explosive under certain conditions.

  • Page 152: Fuse Boxes

    Maintenance Fuse Boxes • Using proprietary professional automotive workshop equipment approved for fuel handling, refill the Warning fuel tank with the fuel previously removed. Always replace blown fuses with new • Reinstall the battery leads, see ones of the correct rating (as specified page 147.

  • Page 153: Front Fuse Box

    Maintenance Front Fuse Box Rating Position Circuits Protected (Amps) The front fuse box is located under the fuel tank. Chassis ECM, Horn, License Plate Light Chassis ECM, Rear Light, Front Position Light DRL Control Logic, Instrument Wake, Front Indicators, Heated Grips Chassis ECM, Dip Beam Headlight, Main...

  • Page 154: Rear Fuse Box

    Maintenance Rear Fuse Box Main Fuse Box The rear fuse box is located under the The 40 Amp main fuse is located under rider's seat. the rider's seat. B01348 Rear fuse box Main fuse Battery lead Main fuse electrical connector Rear Fuse Box Cover Rating Position Circuits Protected...

  • Page 155: Headlights

    Maintenance Headlights Caution Do not cover the headlight or lens with any item likely to obstruct air flow to, or prevent heat escaping from, the headlight lens. Covering the headlight lens during Warning operation with items clothing, luggage, adhesive tape, devices Adjust road speed to suit the visibility intended...

  • Page 156: Headlight Adjustment

    Maintenance Headlight Adjustment • Recheck headlight beam settings. Note • Switch the headlights off when the Check and correct the tire pressures beam settings are satisfactorily set. prior to adjusting the headlight. The vertical beams of the left hand Headlight Replacement and right hand headlights can only headlight units...

  • Page 157: Cleaning And Storage

    Cleaning and Storage Cleaning and Storage Table of Contents Cleaning Preparation for Washing Where to be Careful Washing After Washing Care of Gloss Paintwork Care of Matt Paintwork Aluminum Items - not Lacquered or Painted Cleaning of Chrome and Stainless Steel Items Black Chrome Cleaning of the Exhaust System Seat Care...

  • Page 158: Cleaning

    Cleaning and Storage Cleaning Preparation for Washing Frequent, regular cleaning Before washing, precautions must be essential part of the maintenance of taken to keep water off the following your motorcycle. If regularly cleaned, places. the appearance will be preserved for Rear opening of the exhausts: Cover many years.

  • Page 159: Where To Be Careful

    Cleaning and Storage Where to be Careful Do not get water near the following places: • Air intake duct Caution • Any visible electrical components Do not use high pressure spray • Brake cylinders and brake calipers washers or steam cleaners. •...

  • Page 160: Washing

    Cleaning and Storage Washing After Washing wash motorcycle, Warning following: • Make sure that the motorcycle Never wax or lubricate the brake discs. engine is cold. Always clean the brake disc with a • Prepare a mixture of clean, cold proprietary brand of oil-free brake disc water and mild automotive cleaner.

  • Page 161: Care Of Gloss Paintwork

    Cleaning and Storage Care of Gloss Paintwork Aluminum Items - not Lacquered or Painted Gloss paintwork should be washed dried described previously, Items such as brake and clutch levers, then protected using a high quality wheels, engine covers, engine cooling automotive polish.

  • Page 162: Cleaning Of Chrome And Stainless Steel Items

    Cleaning and Storage Cleaning of Chrome and Black Chrome Stainless Steel Items Items such as headlight bowls and mirrors on some models must be All chrome and stainless steel parts correctly cleaned to preserve their of your motorcycle must be cleaned appearance.

  • Page 163: Cleaning Of The Exhaust System

    Cleaning and Storage Cleaning of the Exhaust Protecting System Caution All parts of the exhaust system of your motorcycle must be cleaned regularly to products containing avoid a deterioration of its appearance. silicone will cause discoloration of the These instructions can be applied to chrome and stainless steel parts and chrome, brushed stainless steel and must not be used.

  • Page 164: Seat Care

    Cleaning and Storage Seat Care Windshield Cleaning (if equipped) Caution Use of chemicals or high pressure spray washers is not recommended for cleaning the seat. Using chemicals or high pressure Warning spray washers may damage the seat Never attempt to clean the windshield cover.

  • Page 165: Care Of Leather Products

    The Triumph leather product is a natural Never allow these products to contact product and lack of care can result in the windshield.

  • Page 166: Storage

    Cleaning and Storage Storage • If exposure to salt is unavoidable, clean leather product Preparation for Storage immediately after each exposure using a damp cloth then leave the To prepare the motorcycle for storage, leather product to dry naturally at do the following: room temperature.
  • Page 167 9 lbf ft (12 Nm), and start the (noting that HD4X Hybrid engine. coolant, as supplied by Triumph, is • Check and if necessary correct the pre-mixed and requires no dilution) tire pressures (see the relevant and distilled water solution (see Specification section).
  • Page 168 Cleaning and Storage This page intentionally left blank...

  • Page 169: Specifications

    Specifications Specifications Dimensions, Weights and Performance A list of model specific dimensions, weights and performance figures is available from your authorized Triumph dealer, or on the Internet at www. triumph. co. uk. Payload Speed Triple 1200 RS Maximum Payload 430 lb (195 kg)
  • Page 170 Specifications Fuel System Speed Triple 1200 RS Type Electronic fuel injection Injectors Solenoid operated Fuel Pump Submerged electric Fuel Pressure (nominal) 51 lbs/in² (3.5 bar) Fuel Speed Triple 1200 RS Type 95 RON unleaded Tank Capacity (motorcycle 4 gallons (15.5 liters)
  • Page 171 Approved Tires A list of approved tires specific to these models is available from your authorized Triumph dealer, or on the Internet at www. triumph. co. uk. Tires Speed Triple 1200 RS Tire Sizes:...
  • Page 172 Bearings and Pivots Grease to NLGI 2 specification Brake Fluid DOT 4 brake fluid Coolant Triumph HD4X Hybrid OAT coolant (pre-mixed) Drive Chain Chain spray suitable for XW-ring chains Semi or fully synthetic 10W/40 or 10W/50 motorcycle engine oil which meets specification...

  • Page 173: Index

    Index Index Frequency of Cleaning Gloss Paintwork Accessories Matt Paintwork Anti-lock Braking System (ABS) Preparation for Washing Optimized Cornering ABS Seat Care Warning Light Washing Where to be Careful Bank Angle Indicators Windshield Clutch Battery Charging Adjustment Lever Adjustment Disposal Installation Cooling System Coolant Change...
  • Page 174 Disposal of Oil and Filters Gears Low Oil Pressure Warning Light Shift Indicator Display Oil and Oil Filter Change Shifting Gears Oil Level Inspection Triumph Shift Assist (TSA) Specification and Grade Engine Start/Stop Switch Hazards QUICK START Position Warning Lights RUN Position...
  • Page 175 Index Panel Layout Lights Rider Name Display Hazards Riding Aids Headlight Riding Mode Selection Headlight Adjustment Riding Modes 39, 49 Headlight Replacement Service License Plate Settings Tail Light Shift Indicator Turn signals Speedometer Loading Tachometer Lubrication Themes Specifications Tire Pressure Monitoring System (TPMS) Maintenance Trip Meters...
  • Page 176 Transmission Riding Specifications Scheduled Maintenance Table Trip Meters Seats Trip Settings Passenger Seat Removal 77, 78 Triumph Shift Assist (TSA) Rider's Seat Installation Turn signals Rider's Seat Removal Lights Seat Care Warning Light Seat Cowl Removal 77, 78 Side Stand...

  • Page 177: Approval Information

    With reference to the Pneumatic Tires and Tubes for Automotive Vehicles (Quality Control) Order, 2009, Cl. No. 3 (c), it is declared by M/s. Triumph Motorcycles Ltd. that the tires mounted on this motorcycle meet the requirements of IS 15627: 2005 and comply with the requirements under Central Motor Vehicle Rules (CMVR), 1989.
  • Page 178 Approval Information Smart Key Battery Replacement Warning There is a risk of explosion if an incorrect battery is used. Always make sure that the correct battery size and type is used. Warning Batteries contain harmful materials. Always keep batteries out of the reach of infants and young children to prevent them being swallowed.

Table of Contents
