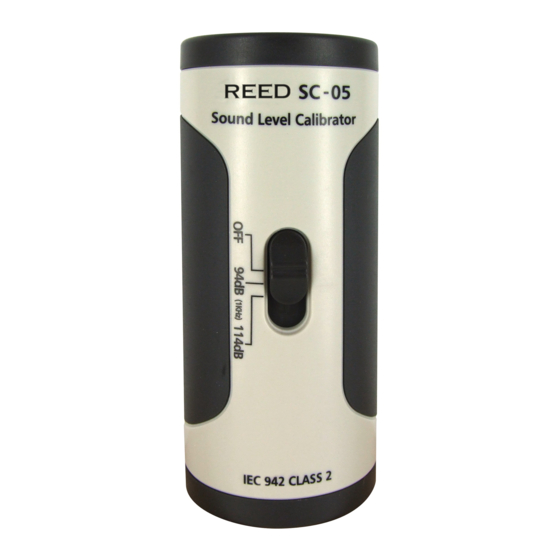

Sound level calibrator

Advertisement

Model
Pantone 534 Blue - 100/80/30/5
Sound Level Calibrator
Pantone 485 Red - 10/100/100/5
Pantone 123 Yellow - 0/27/100/
Instruction
Manual
Find Quality Products Online at:
reedinstruments
www
GlobalTestSupply
www.
SC-05
Black
.com
sales@GlobalTestSupply.com
com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-05 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for REED SC-05

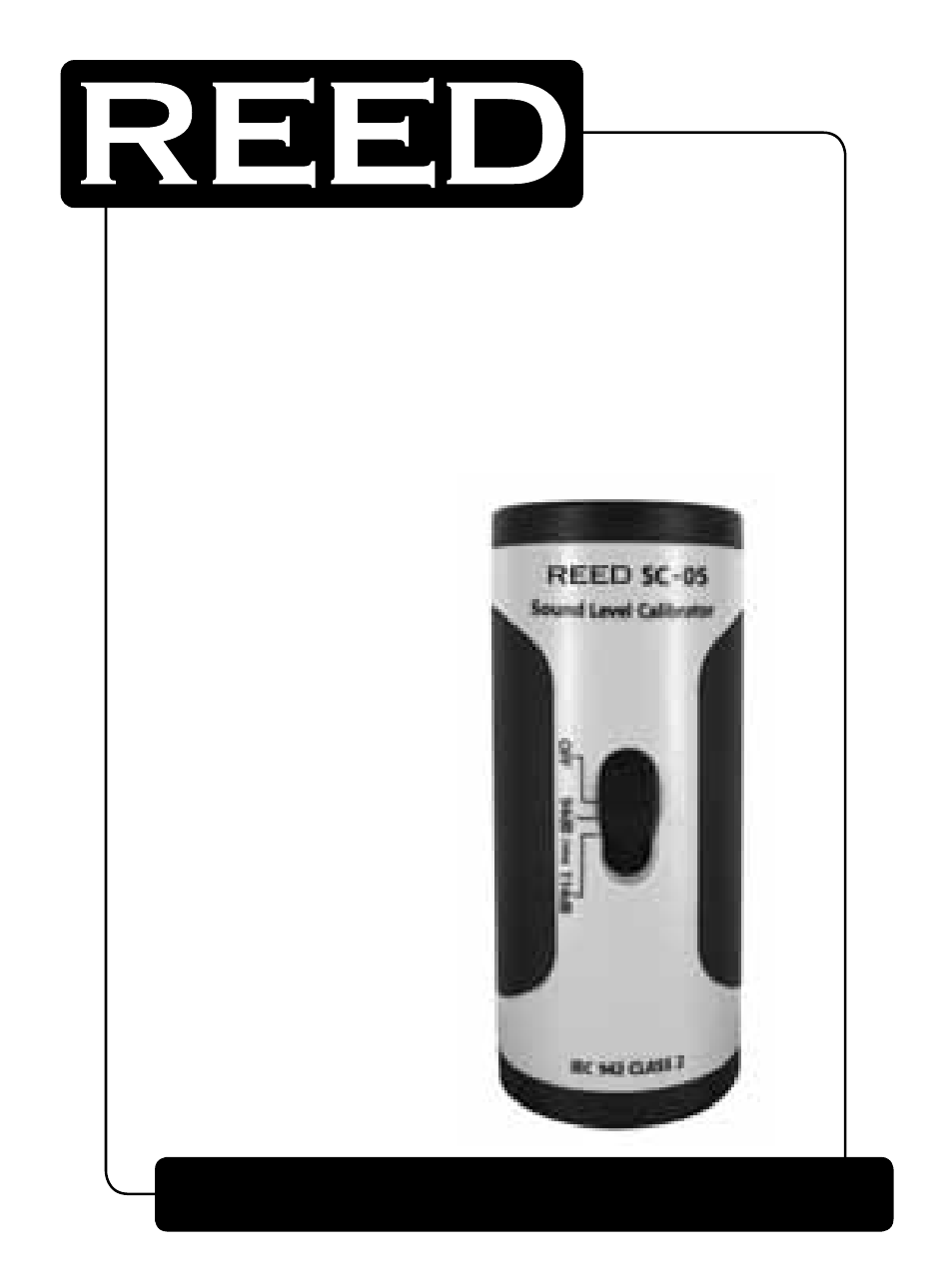

  • Page 1 Black SC-05 Model Pantone 534 Blue - 100/80/30/5 Sound Level Calibrator Pantone 485 Red - 10/100/100/5 Pantone 123 Yellow - 0/27/100/ Instruction Manual reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 2 Features • Generates a stable acoustic signal at a controlled frequency and amplitude to verify the accuracy of your sound level meter • Complies with IEC 942 Class 2 • Accommodates sound meters with 1/2” diameter microphones • Simply place calibrator on microphone, turn on and adjust your sound level meter Specifications Output Sound Pressure Levels: 94dB and 114dB Accuracy: ±0.5dB Output Frequency: 1000Hz ±4% Power Supply: One 9V battery (included) Dimensions: 120 x 51 x 43mm Weight: Approx. 130g Instrument Description 1. Microphone adaptor 2. Range switch 3. Battery compartment/cover Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red...
  • Page 3 Battery replacement Replace the battery when there is no sound pressure output from the sound level calibrator. Open the battery cover to access the 9V battery. Remove the battery and replace with new 9V battery. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow For service on this or any other REED product or information on other Red - 10/100/100/5 Pantone 485 Red REED products, contact REED Instruments at info@reedinstruments.com Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue reedinstruments Black...
  • Page 4 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue ________________________________________________ Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 ________________________________________________ Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...

This manual is also suitable for:

Sc-05-nist
