- Page 1 R5300 Model Continuity Tester Instruction Manual reedinstruments REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 2 • Local and remote continuity tester • Visual and audible indicators • Remote probe allows for one person operation • Capable of testing cables/wires up to 10,000 ft (3000m) • Includes battery reedinstruments REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...

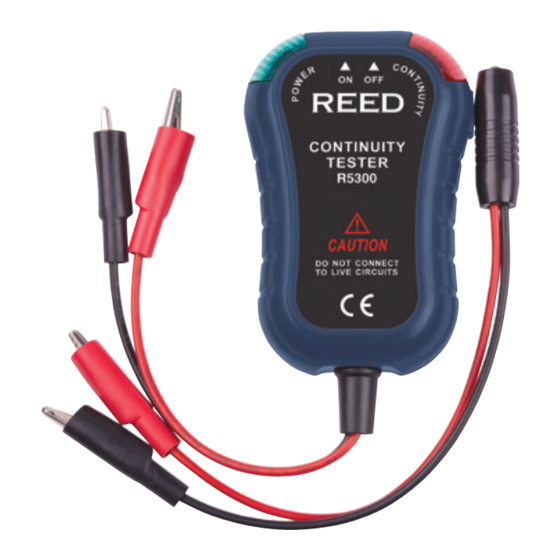

- Page 3 1. Power Switch 2. Power LED 3. Main Unit 4. Black Clip 5. Red Clip 6. Black Clip R5300 7. Red Clip 8. Remote Unit 9. Bi-Color LED 10. Continuity LED Tip: To remove the Remote Unit from the Main Unit, use one hand to hold the Main Unit and use other hand to move the Remote Unit upwards.
-
Page 4: Specifications
3. If continuity exists, the bi-color LED of the Remote Unit will flash either green or red depending on the Remote Unit leads orientation. Meanwhile the Main Unit will beep and the continuity LED will flash red. reedinstruments REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 5 5. If the bi-color LED flashes red, this indicates the Remote Unit leads are not correctly connected. Reverse the Remote Unit leads and the bi-color LED will flash green. 6. Once the bi-color LED flashes green, the connections are correct. reedinstruments REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 6 If the connections are reversed and the diode is good, the Main Unit will not indicate continuity. R5300 reedinstruments REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 7: Battery Replacement
4. Reinstall the battery cover with screw. Note: To avoid damage, do not pull battery connector cable with force when replacing battery. For service on this or any other REED product or information on other REED products, contact REED Instruments at info@reedinstruments.com. Notes ______________________________________... - Page 8 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ reedinstruments REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
