Summary of Contents for REED R2800
- Page 1 R2800 Temperature Simulator Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Simulating output from thermal resistance or RTD ......11-12 Battery Replacement ................12 Applications ....................13 Accessories and Replacement Parts ............13 Product Care .................... 13 Product Warranty ..................13 Product Disposal and Recycling .............. 14 Product Support ..................14 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 3: Introduction
This product has been manufactured to meet the stated product specifications. If a certificate of calibration is required please contact the nearest authorized REED distributor or authorized Service Center. Please note an additional fee for this service will apply. Safety Never attempt to repair or modify your instrument. -
Page 4: Features
Specifications Output Functions Accuracy specified at 23°C ±5°C & 75% RH for a period of one year after calibration. Output Range Output Range Resolution Accuracy 100mV -10.00 to 110.00mV 0.01mV 0.05% rdg. + 30mV 1000mV -100.00 to 1100.00mV 0.1mV 0.05% rdg. + 0.3mV 400Ω 0.0 to 400.0Ω 0.1Ω ±0.05% rdg. + 0.2Ω 400Ω 0 to 4000Ω 1Ω ±0.05% rdg. + 2Ω continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 5 -200.0 to 630°C 0.1°C Notes • Excludes accessory lead resistance • Range of excitation current: 0.5mA to 3mA; Max. output voltage: ≤2V • The accuracies indicated do not include the error of internal temperature compensation caused by a sensor. The range of the internal temperature compensation sensor is from -10 to 50°C with its compensating error up to 0.5°C. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 6: General Specifications
General Specifications Display: 6-Digit LCD Zero Adjustment Button: Kick Stand: Power Supply: 2 x AA Batteries Cold Junction Compensation: Auto Shut Off: Yes (after 15 minutes/off) Low Battery Indicator: Replaceable Test Leads: Product Certifications: Operating Temperature: 32 to 122°F (0 to 50°C) Operating Humidity Range: 0 to 85% Storage Temperature: 14 to 122°F (-10 to 50°C) Dimensions: 7.1 x 3.5 x 1.9" (180 x 90 x 47mm) Weight: 8.2oz (500g) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 7: Instrument Description

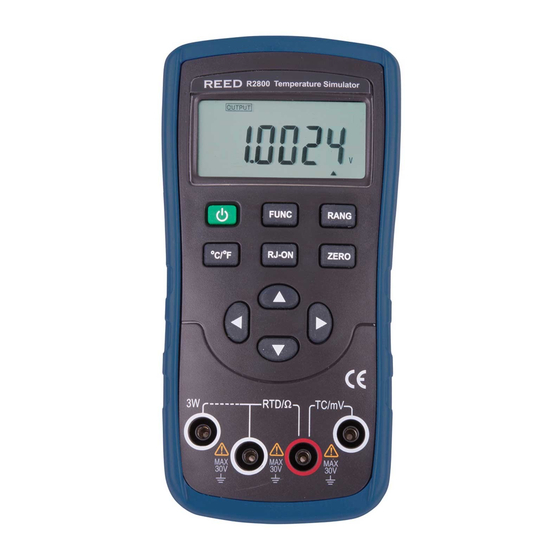

Instrument Description R2800 SIMULATOR RJ-ON OUTPUT Pt1000 Pt200 Pt500 Cu50 Cu10 Ω°C°F 1. LCD Display 2. ON/OFF Button 3. °C/°F Selection Button 4. RJ-ON Button (T/C Reference Junction Compensation Button) 5. Function Selection Output Button 6. Range Selection Button 7. Zero Reset Button Output Value Setting Button Output Digit Selection Button 10. Output Terminals REED Instruments... -
Page 8: Display Description
POWER button to turn the instrument off. When the instrument is on, it will begin an internal self-diagnosis at which time the full screen will be displayed. When complete, the instrument is ready to take measurements. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 9: Auto Power-Off
Press the FUNC button to select "DC Voltage Output". "V" will appear on the display. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 10: Simulating Output From Thermocouple (Tc)
Output thermoelectric force = corresponding emf of set temperature – emf of room temperature • It takes two seconds for the instrument to start its internal referencejunction temperature. After this, each automatic compensation occurs at 10 second intervals. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 11: Simulating Output From Thermal Resistance Or Rtd
Press the buttons to change the numerical value of each digit. (Numerical value cannot be changed beyond range maximum.) Press the ZERO button and the output will be directly set to 000.0°C. Press the °C/°F button to select the unit °C or °F. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 12: Battery Replacement
Tighten the screw to secure the battery compartment cover. Note: Ensure battery door is closed and secured in place before using the meter. To ensure proper operation, please wait 5 seconds before turning meter on after changing batteries. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 13: Applications
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. -
Page 14: Product Disposal And Recycling
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDINSTRUMENTS.com for the most up-to-date manuals, datasheets, product guides and software. - Page 15 TeST & MeaSuRe wITh ConfIdenCe CheCk ouT ouR laTeST PRoduCTS! REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
