REED R9030 Manual

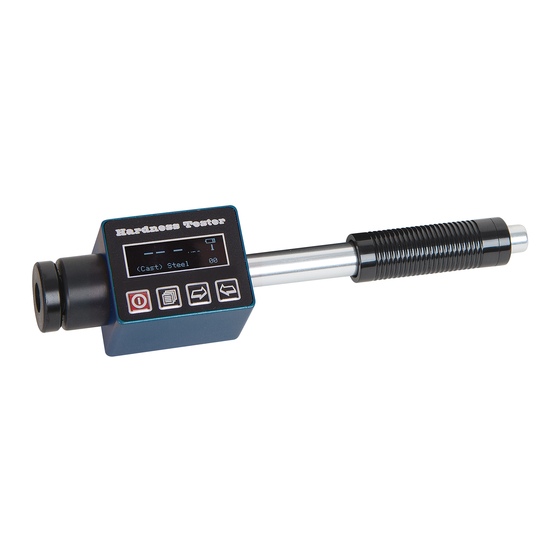

Integrated hardness tester
Hide thumbs Also See for R9030:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
REED   R 9030
Integrated   H ardness   T ester
Manual
www.reedinstruments.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R9030 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REED R9030

Summary of Contents for REED R9030

  • Page 1 REED   R 9030   Integrated   H ardness   T ester   Manual   www.reedinstruments.com...

  • Page 2: Table Of Contents

    Contents 1 General Description ......................3   1.1 Features ........................ 3   1.2 Main Application and Testing Range ..............4   1.3 Types and specification ..................8   1.4 Operating conditions: ..................10   2 Structure features and Testing principle ............... 11   2.1 Structure features ....................
  • Page 3 6.1 Start up and switch off ..................23   6.2 Operation ......................24   6.3 Short-cut measuring setting ................26   6.4 Menu structure ....................27   6.5 Software calibration ................... 28   6.6 Charging ......................28   6.7 Switch off automatically ..................29   6.8 Battery replacement ...................

  • Page 4: General Description

    1 General Description 1.1 Features All English menu display is easy to manipulate. High definition OLED display for better use in any environments. With Micro-USB port, it provides a faster communication speed. Large capacity memory could store 48~350 groups (impact average times32~1 ) information including single measured value, mean value, testing date, impact direction, impact times, material and hardness scale etc.

  • Page 5: Main Application And Testing Range

    1.2 Main Application and Testing Range 1.2.1 Main Application The assembled machinery and permanently installed parts Die cavity of molds Heavy work piece Failure analysis of pressure vessel, steam turbo-generator set and other equipment Narrow testing space where work piece installed Bearings and other parts Cases which require the test result with normalized original recording Material identification of the metal material warehouse...
  • Page 6 Table 1 Impact device Hardness test Material method D/DC D+15 17.9～68.5 19.3～67.9 20.0～69.5 20.6～68.2 Rockwell 59.6～99.6 37.0～99.9 59.1～85.8 Steel and cast steel Brinell 127～651 80～638 80～683 81～646 Vickers 83～976 80～937 80～996 80～950 Shore 32.2～99.5 33.3～99.3 31.8～102.1 30.6～96.8 Hammered steel Brinell 143～650 Rockwell 20.4～67.1...
  • Page 7 Brinell 93～334 Vickers Rockwell Nodular cast iron Brinell 131～387 Vickers Brinell 19～164 23～210 Cast aluminum alloys Rockwell 23.8～84.6 22.7～85.0 Brinell 40～173 Brass(copper-zinc alloys) Rockwell 13.5～95.3 Bronze (copper-aluminum/copper-t Brinell 60～290 in alloys) Wrought copper Brinell 45～315 alloys...
  • Page 8 Table 2 Material Strength σ (MPa) Mild steel 350～522 374～780 High-carbon steel 500～710 737～1670 Cr steel 500～730 707～1829 Cr-V steel 500～750 704～1980 Cr-Ni steel 500～750 763～2007 Cr-Mo steel 500～738 721～1875 Cr-Ni-Mo steel 540～738 844～1933 Cr-Mn-Si steel 500～750 755～1993 Super strength steel 630～800 1180～2652 Stainless steel...

  • Page 9: Types And Specification

    1.3 Types and specification 1.3.1 Standard Delivery Main unit: 1 Small supporting ring: 1 Nylon brush : 1 High value Leeb test block: 1 Charger: 1 Data Processing Software(used with computer): 1 Communication cable: 1 1.3.2 Optional Delivery Except the standard delivery, additional Optional Delivery can be selected by users according to their requirements: Various non-conventional type of impact devices and supporting ring, see table 3 and table 4.
  • Page 10 Table 3 Sketch of non conventional Code Type Remarks supporting ring For testing cylindrical outside surface R10～R15 03-03.7 Z10-15 For testing cylindrical outside surface R14.5～R30 03-03.8 Z14.5-30 For testing cylindrical outside surface R25～R50 03-03.9 Z25-50 For testing cylindrical inside surface R11～R13 03-03.10 HZ11-13 For testing cylindrical inside surface R12.5～R17...

  • Page 11: Operating Conditions

    For testing spherical inside surface SR11～SR13 03-03.15 HK11-13 For testing spherical inside surface SR12.5～SR17 03-03.16 HK12.5-17 For testing spherical inside surface SR16.5～SR30 03-03.17 HK16.5-30 For testing cylindrical outside surface, radius 03-03.18 adjustable R10～∞ 1.4 Operating conditions: Ambient temperature: 0℃～40℃; Relative humidity: ≤90％; No vibration, no strong magnetic field and no corrosive medium and heavy dust in ambient environment.

  • Page 12: Structure Features And Testing Principle

    2 Structure features and Testing principle 2.1 Structure features...

  • Page 13: Testing Principle

    2.2 Testing principle Let a impact body whose weight is definite rush into the surface of sample, the hardness value comes from the rate of rebound velocity and rush velocity at 1mm distance from testing surface. The calculation formula is following: HL=1000×VB/ VA In which: HL——Leeb hardness value VB——Rebounding velocity of the impact body...
  • Page 14 Table 4 Non conventional impact devices D+15 DC（D）/DL Impacting energy 11mJ 11mJ 2.7mJ Mass of impact body 5.5g/7.2g 7.8g 3.0g Test tip Hardness 1600HV 1600HV 1600HV Diameter of test tip Material of test tip Tungsten carbide Tungsten carbide Tungsten carbide Impact device Diameter 20mm 20mm...
  • Page 15 Hardness Indentation diameter 0.54mm 0.54mm 0.38mm 300HV Indentation depth 24µm 24µm 12µm Hardness Indentation diameter 0.54mm 0.54mm 0.32mm 600HV Indentation depth 17µm 17µm 8µm Hardness Indentation diameter 0.35mm 0.35mm 0.35mm 800HV Indentation depth 10µm 10µm 7µm Available D+15: type of General test groove or reentrant small, light, thin...
  • Page 16 Accuracy and repeatability of displayed value: Table 6 Type of hardness value of Error of Repeatability impact standard Leeb displayed of displayed device hardness block value value 760±30HLD ±6 HLD 6 HLD 530±40HLD ±10 HLD 10 HLD 760±30HLDC ±6 HLDC 6 HLD 530±40HLDC ±10 HLDC...

  • Page 17: Testing

    Measuring range: HLD（170～960）HLD Measuring direction: 360° Hardness scale: HL, HB, HRB, HRC, HRA, HV, HS Display: OLED, 128×36 dot matrix Data memory: 48～350 groups （impact times: 32～1） Range of upper and lower limit: the same as measuring range Charging time: 1.5 ~ 2h Power supply for charging: 5V/500mA Continuous working period: approx.
  • Page 18 The preparation for workpiece surface should comply with the relevant requirements specified in table During the preparation for sample, the affect to surface hardness of sample caused by overheating, cold processing and etc. should be avoided as far as possible. If the surface to be tested is too rough, measuring error will appear.
  • Page 19 —— The workpiece with medium weight must be placed on flat and solid plane, and it must be placed stably without any shaking. Enough thickness of workpiece is necessary, and the min. thickness should comply with the specification in table 3. As for test piece with hardened surface layer, the depth of hardened layer should comply with table 3.

  • Page 20: Testing

    4.1.3 Measuring condition setting of tester Specific procedures for setting, refers to 6.5. 4.2 Testing A random hardness block should be used to check the tester prior to the testing; and the reading value error and repeatability should not be more than the specification in table 5. Note: the hardness value of standard hardness test block can be measured via a Leeb hardness tester which had been calibrated;...
  • Page 21 4.2.1 Start-up Press key to turn on the power, then the tester enters into the measuring status. 4.2.2 Loading Push down the loading sheath to lock the impact body; then loading has been finished. Press tightly the support ring of impact device on the surface of test sample, the direction of impact should be vertical with testing surface.
  • Page 22 Table 7 The distance between The distance of two indentation center and Type of impact indentations center device edge of test piece No less than No less than D、DC、DL、D+15 For any special material, a comparative test must be performed to obtain relevant conversion relation if Leeb hardness value accurately conversing to other type of hardness value is required.
  • Page 23 4.2.4 Read measured value 4.2.5 Press key to switch off 4.2.6 The processing of testing results The mean value of five valid testing points can be served as a testing data of Leeb hardness. 4.2.7 The express of testing results Hardness value will be displayed ahead of HL (the symbol of Leeb Hardness), and type of impact device will be displayed back of HL.

  • Page 24: Special Prompts

    5 Special prompts In normal condition, the current measured value can be printed or stored if the 【impact times】 value which had been set is not satisfy. When 【σ 】 has been set, hardness scale will not been set (cursor will skip off 【Hardness Scale】).

  • Page 25: Operation

    6.2 Operation The tester will enter the main display interface after switch on, as the following figure.
  • Page 26 6.2.1 Explanation of the main display interface Battery information: displaying rest capacity when no charging, and displaying charging degree when charging. Impact direction: current impact direction. Average value indicator: average value will be displayed when impact times setting has been achieved. Hardness scale: the hardness scale of current measuring value.

  • Page 27: Short-Cut Measuring Setting

    6.2.2 Testing procedures Testing can be carried out under this interface status, and the current measured value will be displayed whenever one measurement is finished. The counting of impact times will add 1 per measurement is performed. It will display the message "Out of range" provided that the value exceeds tolerance limit; If the impact times which has been set is achieved, the average value will be displayed after 2 seconds waiting.

  • Page 28: Menu Structure

    the hardness scale and use key to change it cyclically. Then use key to move cursor cyclically on the measuring conditions and press key to exit. 6.4 Menu structure Press key to enter the menu interface from the standby interface. Note: only at the standby state can enter the menu interface.

  • Page 29: Software Calibration

    6.5 Software calibration The tester and impact device must be calibrated with a standard Leeb hardness test block prior to the first use, or reusing after a long term idle. Press key as well as key at the same time to enter the interface of software calibration. The impact times is set to 5.

  • Page 30: Switch Off Automatically

    will be flashed after capacity is full. A charger in the Standard Delivery is recommended to used to charge for the main unit. 6.7 Switch off automatically Auto switch off function is supplied to save the energy of battery. If neither measurement nor any key operation is performed within 1 minute, the tester will switch off automatically, a flash showing for 10 seconds on the LCD screen prior to switch off.

  • Page 31: Trouble Shooting

    7 Trouble shooting Table 9 Failure Cause Solution Failure in starting Battery empty Replace battery No measuring value Probe cable open circuit Replace Probe cable Value is inaccurate Calibration data lose over again Calibration Note: when the error appears and can not be fixed, press key first and then press 【RESET】...

  • Page 32: Standard Maintenance Procedures

    8.2 Standard maintenance procedures If the error is > 2HRC when using standard Rockwell hardness block to test, maybe the test tip is disabled. Changing the test tip or impact body should be considered. If other abnormal phenomena occur, user should not disassemble or adjust any part which used for fixing.
