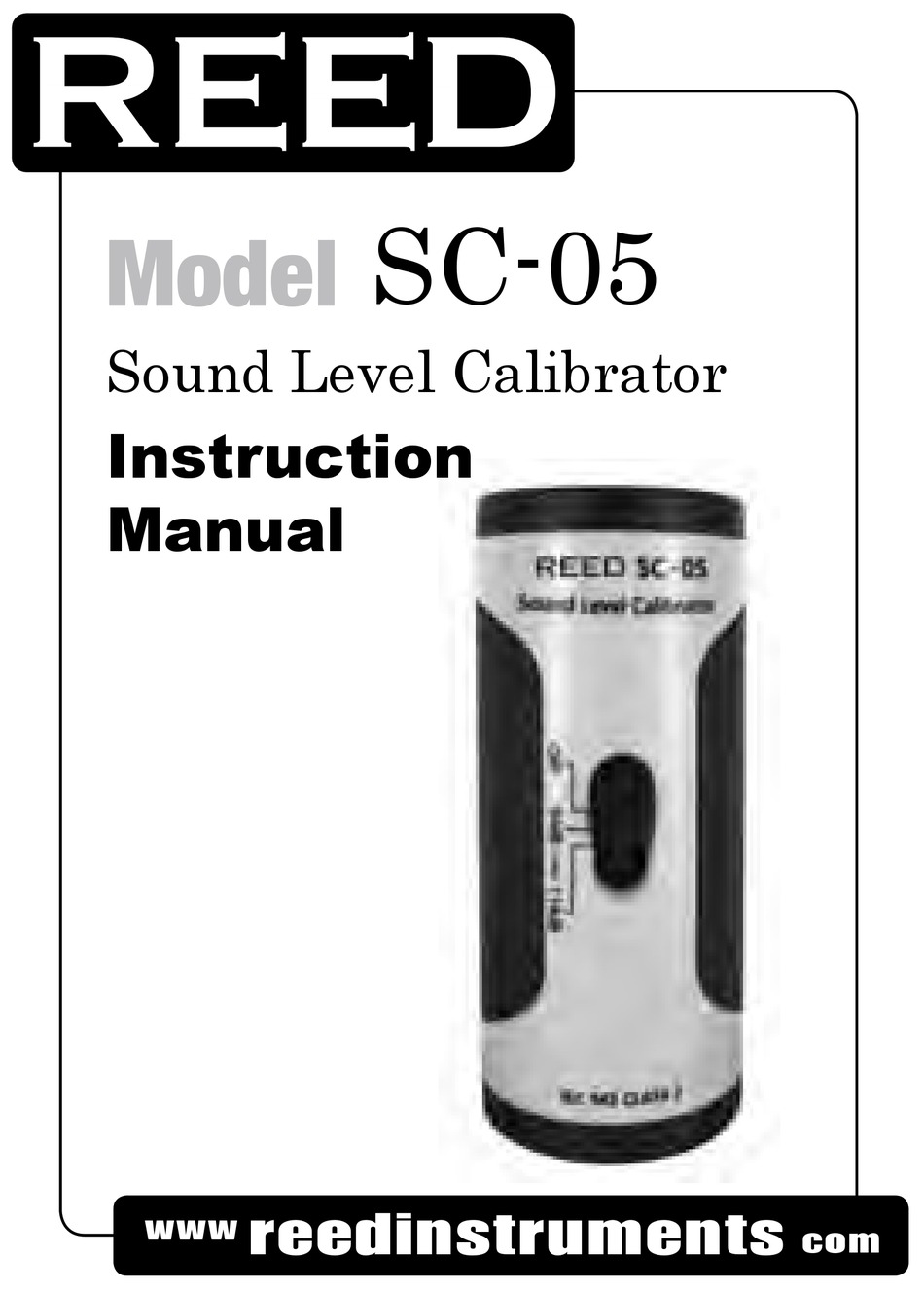

- Page 1 Black SC-05 Model Pantone 534 Blue - 100/80/30/5 Sound Level Calibrator Pantone 485 Red - 10/100/100/5 Pantone 123 Yellow - 0/27/100/ Instruction Manual reedinstruments...
-
Page 2: Specifications
Features • Generates a stable acoustic signal at a controlled frequency and amplitude to verify the accuracy of your sound level meter • Complies with IEC 942 Class 2 • Accommodates sound meters with 1/2” diameter microphones • Simply place calibrator on microphone, turn on and adjust your sound level meter Specifications Output Sound Pressure Levels: 94dB and 114dB Accuracy: ±0.5dB Output Frequency: 1000Hz ±4% Power Supply: One 9V battery (included) Dimensions: 120 x 51 x 43mm Weight: Approx. 130g Instrument Description 1. Microphone adaptor 2. Range switch 3. Battery compartment/cover Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red... -
Page 3: Operating Instructions
Battery replacement Replace the battery when there is no sound pressure output from the sound level calibrator. Open the battery cover to access the 9V battery. Remove the battery and replace with new 9V battery. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow For service on this or any other REED product or information on other Red - 10/100/100/5 Pantone 485 Red REED products, contact REED Instruments at info@reedinstruments.com Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue reedinstruments Black... - Page 4 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue ________________________________________________ Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 ________________________________________________ Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
