Summary of Contents for REED vc04

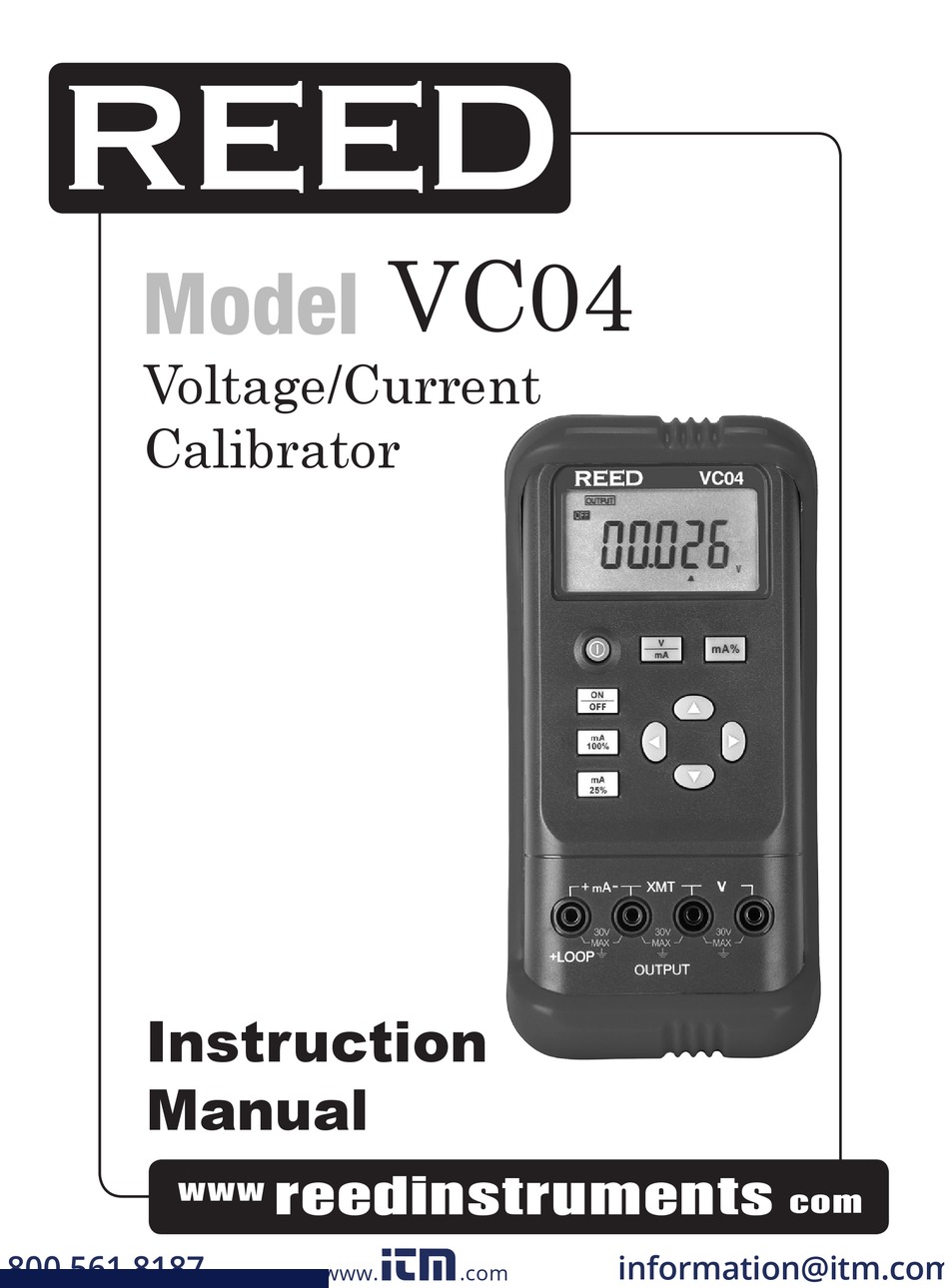

- Page 1 Black VC04 Model Pantone 534 Blue - 100/80/30/5 Voltage/Current Pantone 485 Red - 10/100/100/5 Pantone 123 Yellow - 0/27/100/ Calibrator Instruction Manual reedinstruments 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow For service (repairs or calibration) on this or any other REED product or information on other REED products, contact REED Instruments at Red - 10/100/100/5 Pantone 485 Red... -
Page 3: Safety
Safety To prevent the user and the instrument from electric shock and other hazards, it is necessary to follow the following regulations: Warning • Do not operate the instrument in the presence of flammable or explosive gas or vapor. This is extremely dangerous. • Never apply more than 30V between any two terminals, or between terminal and ground. Caution • The split case (top and bottom) is not to be removed, unless by qualified technicians. -
Page 4: Features
Features • Sources voltage and current • 5-digit LCD readout • Automatic calibration • User selectable auto power-off • Selectable step or ramp outputs Specifications Output Functions Applicable range from 18 to 28°C, within one year of calibration. Output Range Output Range Resolution Accuracy Note Max output... - Page 5 Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow For service on this or any other REED product or information on other Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow REED products, contact REED Instruments at info@reedinstruments.com...
-
Page 6: Instrument Description

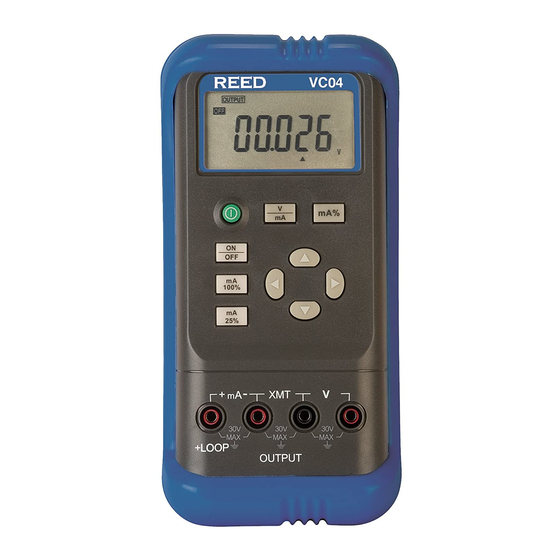

Instrument Description LCD screen Power button ON/OFF Zero/FS points select button 25% single step setting/auto ramp button Unit VmA / % select button Unit mA / % select button output digit selection button output value setting button 10. Output terminals VOLTAGE/mA SOURCE 100% + mA - Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow +LOOP Red - 10/100/100/5 OUTPUT... - Page 7 Display Description Indicates that the instrument is in an output state Indicates that the instrument is in a calibration state Indicates that the instrument is in a calibration state, denoting that the zero point or the full scale point is now in calibration Indicates that the battery power is low and needs to be replaced Indicates that the output digits need to be set...
-
Page 8: Operating Instructions
Operating Instructions Power ON/OFF Press the Power button to turn the instrument on. Press this button again, holding for one second to turn the instrument off. When the instrument is on, it will begin an internal self-diagnosis at which time the full screen will be displayed. -
Page 9: Output Operation Procedure
Output Operation Procedure Function Range Display Set Range Operation Operation 0.000 to 11.000V DCA 10mA 20mA% 0.000V -00.000 to 22.000mA DC Voltage Output Insert one end of the test leads into the V output jack and connect the other end to the input of the meter, as shown in the +LOOP OUTPUT diagram. symbol will appear on the display indicating that the calibrator is in an output state. -
Page 10: 25% Step Current Output
Press the button to change the numerical value of the set digits. Hold the button and the value will keep varying. Press the ON/OFF button turn the on and off the output followed by displaying the ON or OFF symbol. 25% Step Current Output Connect the test leads to the meter as stated in the Current Output procedures. Press the V/mA button to select the mA function and display the mA or mA% unit. Press the maA 25% button and will appear on the LCD. Press the mA/% button to select the set output to mA or % and display the mA or mA% unit. -
Page 11: Simulating Transmitter Output (Xmt)
Calibration It is recommended that you calibrate the unit once per year in order to keep correct accuracies. Contact REED Instruments for assistance regarding calibration, repairs, warranty, trouble-shooting, and more at Blue - 100/80/30/5 Pantone 534 Blue service@reedinstruments.com. -
Page 12: Battery Replacement
Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow For service (repairs or calibration) on this or any other REED product Red - 10/100/100/5 Pantone 485 Red or information on other REED products, contact REED Instruments at...
