Audix ADX20i Quick Start Manual

ADX20i/ADX20iP
OVERVIEW
Designed, assembled and tested by Audix in the USA, the ADX20i is a miniaturized
condenser microphone used for professional stage and studio applications. The
ADX20i is known for its clarity, excellent transient response, resistance to feedback,
SPL handling and ease of operation. The ADX20i is primarily used for miking
saxophone and other brass instruments.
The ADX20i is characterized with a uniformly controlled cardioid polar pattern. This
provides excellent isolation and feedback control on stage as well as natural sound
reproduction at very close distances.
With a smooth and accurate response over a frequency range of 40 Hz - 20 kHz, the

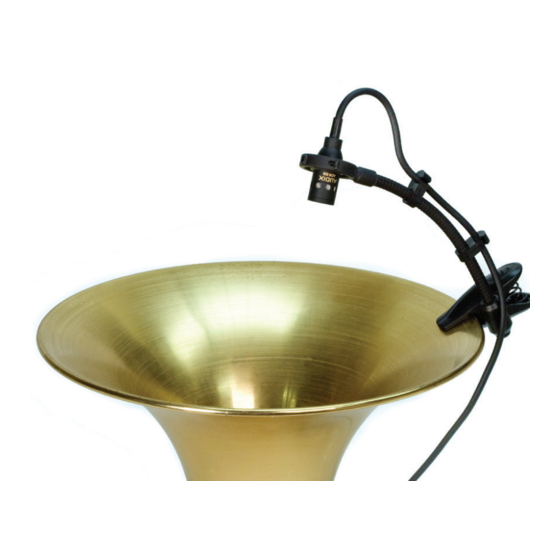

ADX20i is lightweight, compact and simple to use. Housed in an aluminum ring and
isolated by means of a rubber shock mount system, the ADX20i comes with a spring
tension gooseneck clip (MC20i) for easy mounting to the bell of an instrument. A
number of optional accessories are available which allows for the ADX20i to be used
on a microphone stand for a wider variety of applications.
The ADX20i is designed for use with Audix wireless systems. The ADX20iP is designed
for use with a standard microphone cable. The ADX20iP operates on phantom
voltage of 5-52 Volts and is supplied with a phantom power adapter (APS910), 6'
integrated microphone cable, gooseneck clip (MC20i) and carrying pouch.
MODELS
ADX20i - Includes microphone with 6' cable, gooseneck clip and windscreen
ADX20iP - Same as above with phantom power adapter (APS910)
SUPPLIED ACCESSORIES
APS910 - Phantom power adapter
MC20i - Gooseneck clip with shock mount. Butterfly clamp attaches to bell of horn.
P1 - Carrying pouch.
WS20 - External foam windscreen for reducing wind, sibilance, and pop noise.
OPTIONAL ACCESSORIES
MCMICRO - Microphone stand adapter for The Micros series. Fits any 12 mm
diameter microphone.
SMTMICRO - Optional microphone stand adapter with rubber shock mount housed
within an aluminum ring. Attaches to any standard 5/8' threaded microphone stand.
APS910 MC20i
ADX20iP
P1 WS20
Condenser Instrument
Microphone
FEATURES
· Miniature condenser clip-on microphone
· Can be used wired or wireless
· Natural, accurate sound reproduction
· Butterfly type clip ideal for brass instruments
· Rubber shock mount system reduces vibration
· Designed, assembled & tested in the USA
· 3 year warranty
APPLICATIONS
· Saxophone
· Trombone, trumpet
· Room ambience, recording
· Accordion
· Cello, upright bass
MCMICRO SMTMICRO
