Kospel KDE Assembly And Operating Instructions Manual

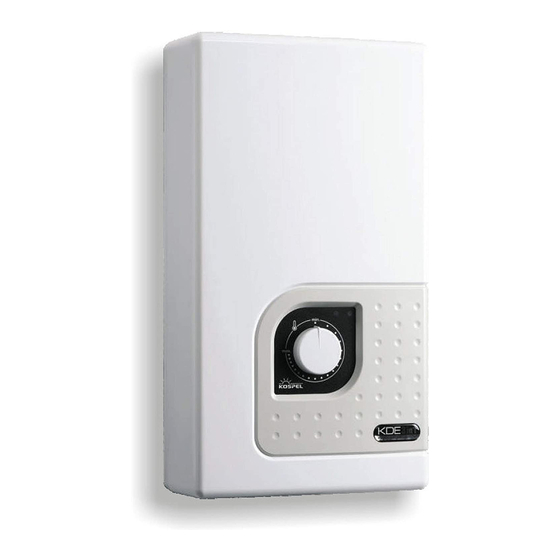

Electric instantaneous water heater
Hide thumbs
Also See for KDE:
- Manual (41 pages) ,
- Assembly and operating manual (13 pages) ,
- Manual (33 pages)
Subscribe to Our Youtube Channel
Related Manuals for Kospel KDE
Summary of Contents for Kospel KDE

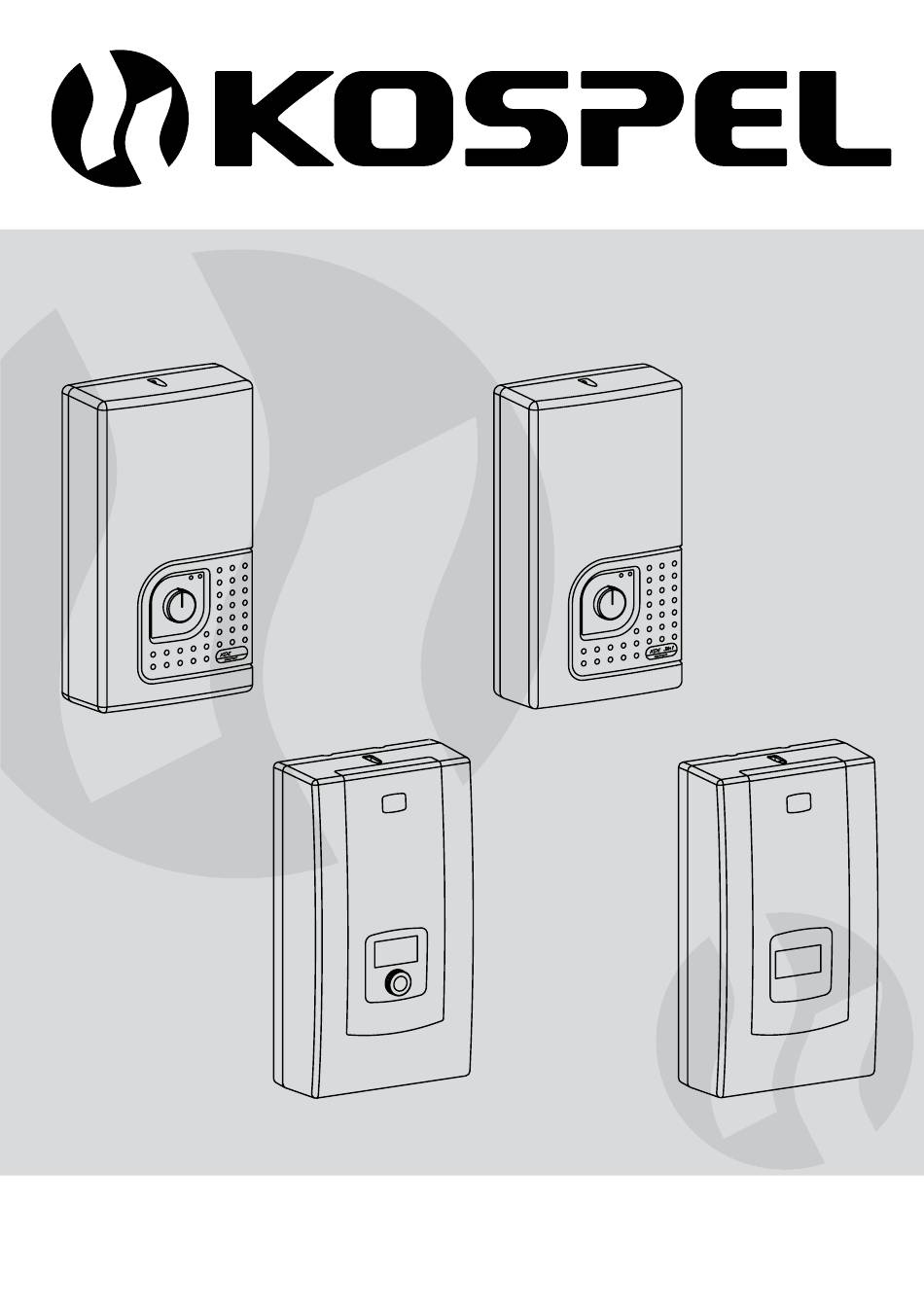

- Page 1 Electric Instantaneous Water Heater KDE2 PPVE PPE2 Assembly and operating instructions...
- Page 2 This appliance can be used by children aged from 3 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 3: Safety Instructions
If there is a non-return valve installed on the water supply pipe the safety valve must be fitted between unit and non-return valve. This relates to KDE only. Inlet and outlet pipes should not be made of plastic. This relates to KDE only. The maximum inlet water temperature should not exceed 60°C. - Page 4 Do not use when the water has been emptied from the unit or pipes (e.g. when water supply system has been repaired or maintained). Unit’s cover must not be taken off while power is on. Failure to install the filter on water supply pipe can cause unit damage. Lime scale built up on heater’s elements may limit water flow and lead to heater’s damage.
-
Page 5: Installation & Assembly
Installation - Assembly Apply templete on place the unit will be fitted. Mark points for drilling the holes for fixing screws. Bring the water system pipes and electric supply cables to the marked places. Take off the unit’s cover. Run the supply wire through the hole and fix the unit on the wall. - Page 6 • 1, 2 - rated power of heater, • 3, 4 - type of heating box, Do not reset switches for KDE - keep factory settings intact. switches settings: • 1, 2, 3 - do not change! keep factory settings...
- Page 7 PPE2 Operation The heater switches on automatically straight after reaching the flow rate over 2,5 l/min. The temperature control system adjusts the power rate according to the water flow rate, required temperature and the temperature of water in the mains. The LCD backlight and icon signalises the heating operation.
- Page 8 Configuration and parameters view Set the minimum temperature value then push and keep knob for about 5 seconds until the display shows „>T SETPOINT”. Turn a knob to select the required value. There are some parameters that are not changeable by the user (e.g. >T INLET, >POWER), or can be used to change the work configuration only (e.g.
- Page 9 PPVE Operation The heater switches on automatically straight after reaching the flow rate over 2,5 l/min. The temperature control system adjusts the power rate according to the water flow rate, required temperature and the water electronic temperature in the mains. The LCD red colour backlight and icon signalises the heating operation.
- Page 10 Temperature setting Display shows three icons: You can set the desired temperature value (which has been stored in memory for each icon) by pressing one of them - the icons will be displayed in inverse To change the desired temperature value: •...
- Page 11 KDE, KDE2 Operation The heater switches on automatically straight after reaching the flow rate over 2,5l/min. The temperature control system adjusts the power rate according to the water flow rate, required temperature and the water temperature in the mains. There are two indicators on the case: green - power supply „on”,...
-
Page 12: Maintenance
Maintenance Filter cleaning: Cut off power and cold water supplies. Take off the unit’s cover. Undo the inlet fitting - on the cold water side. Take the filter out from the inlet fitting. Clean up the filter. Fix the filter back, put the gasket and do up the inlet fitting. -
Page 13: Technical Data
Technical data EN-045BC_f.1179... - Page 15 Used product can’t be treated as general communal waste. Disassembled appliance has to be delivered to the collection point of electrical and electronic equipment for recycling. Appropriate utilisation of used product prevents potential negative environmental influences that may occur as a result of inappropriate handling of waste.
