Kospel KDE Assembly And Operating Manual

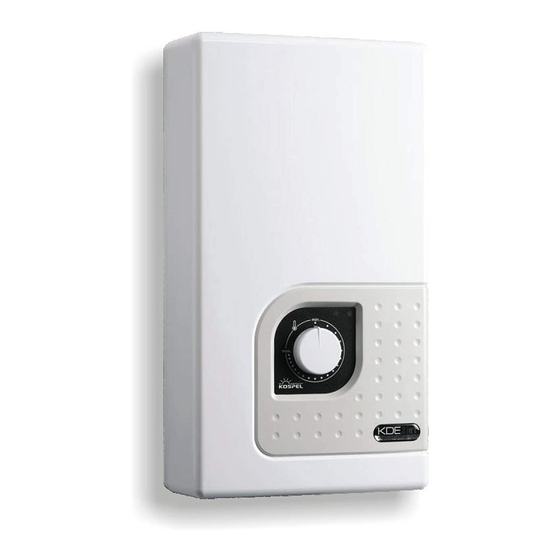

Electric instantaneous water heater
Hide thumbs
Also See for KDE:
- Manual (41 pages) ,
- Assembly and operating instructions manual (16 pages) ,
- Manual (33 pages)
Related Manuals for Kospel KDE
Summary of Contents for Kospel KDE

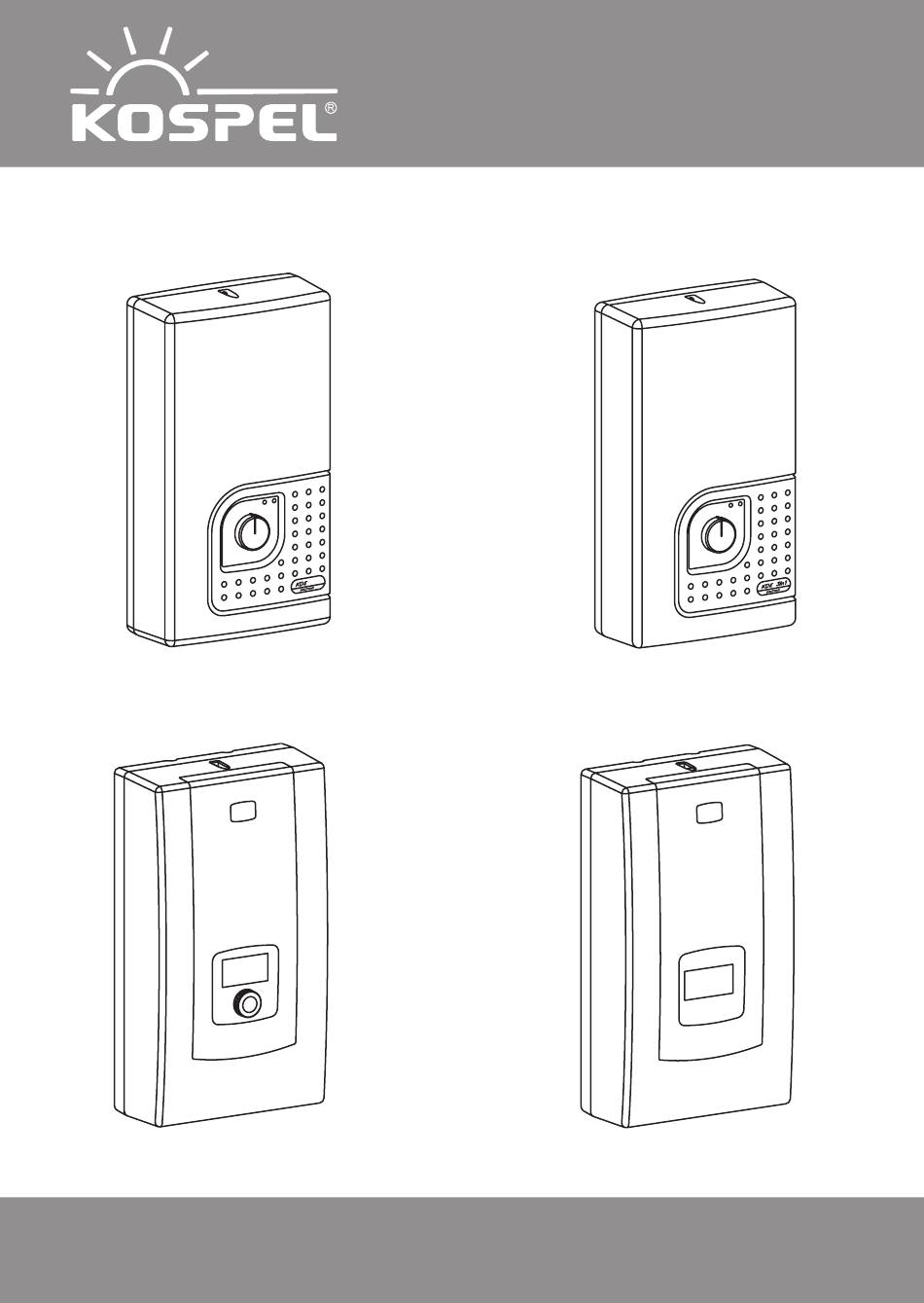

- Page 1 ELECTRIC INSTANTANEOUS WATER HEATER KDE2 PPE2 PPVE Assembly and operating manual...
- Page 2 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
-
Page 3: Safety Instructions
If there is a non-return valve installed on the water supply pipe the safety valve must be fitted between unit and non-return valve. This relates to KDE only. Inlet and outlet pipes should not be made of plastic. This relates to KDE only. The maximum inlet water temperature should not exceed 70°C. -
Page 4: Installation & Assembly
Installation - Assembly Apply templete on place the unit will be fitted. Mark points for drilling the holes for fixing screws. Bring the water system pipes and electric supply cables to the marked places. Take off the unit’s cover. Run the supply wire through the hole and fix the unit on the wall. - Page 5 • 1, 2 - rated power of heater, • 3, 4 - type of heating box, Do not reset switches for KDE - keep factory settings intact. Heating box size 27 kW switches settings: • 1, 2, 3 - do not change! keep factory settings intact, •...
-
Page 6: Temperature Adjustment
PPE2 Operation The heater switches on automatically straight after reaching electronic the flow rate over 2,5 l/min. The temperature control system adjusts the power rate according to the water flow rate, required temperature and the temperature of water in the mains. The LCD backlight and icon signalises the heating operation. - Page 7 language version). To change the parameters value push (position flickering) and turn the knob. Push the knob to confirm a changes. Notice: confirm a new parameter value within 10 seconds, otherwise you will lose it. The new parameter value will be saved when you exit menu using [>EXIT]. You can switch between the following parameters: [>SET TEMP] temperature (min-max) - °C, •...
-
Page 8: Temperature Setting
PPVE Operation The heater switches on automatically straight after reaching the flow rate over 2,5 l/min. The temperature control system adjusts the power rate according to the water flow rate, required temperature and the water temperature in the mains. electronic The LCD red colour backlight and icon signalises the heating operation. -
Page 9: Parameters View
• outlet temp KDE, KDE2 Operation The heater switches on automatically straight after reaching the flow rate over 2,5l/min. The temperature control system adjusts the power rate according to the water flow rate, required temperature and the water temperature in the mains. -
Page 10: Maintenance
Number of impulses description (green indicator) The unit was switched off because the temperature has exceeded the maximum value (fault signal will not disappear until the appropriate rate of water flow is reached). The unit was switched off by a master appliance. The inlet temperature sensor failure. -
Page 11: Technical Data
0,43 0,37 0,30 network impedance Overall dimension (height with- 440 x 245 x 120 out tap set x width x depth Weight ~5,2 KDE.4 Rated power Rated voltage 240V~ 230V~ Rated current 37,5 39,1 52,2 Efficiency (at Δt = 40°C and water pressure at 0,4 MPa) l/min Min. - Page 12 KOSPEL S.A. 75-136 Koszalin, ul. Olchowa 1 tel. +48 94 31 70 565 serwis@kospel.pl www.kospel.pl...
