Summary of Contents for Kospel LUXUS KDH-9
- Page 2 The manufacturer may make minor changes in the appliance if necessary. They will not be exposed in the operating instruction, so long as the main features of the heater remain the same. KOSPEL S.A. 75-136 KOSZALIN UL. OLCHOWA 1...
-
Page 3: Technical Data

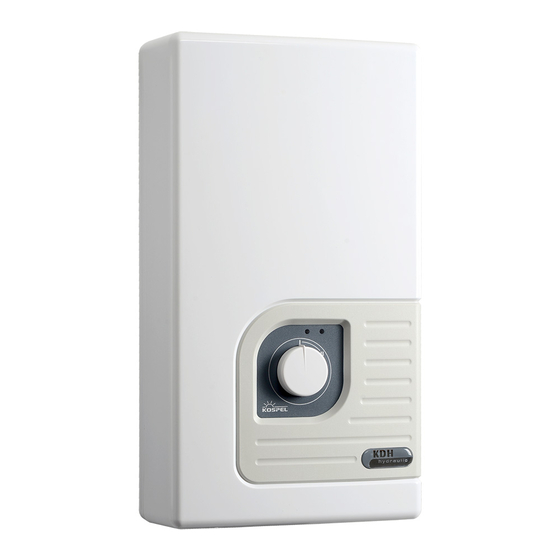

KDH Luxus water heater is designed to heat water instantly at such places as home, a workshop, a restaurant, Description a laboratory etc. It is a multi-point heater – it can supply hot water to a number of taps, e.g. at a sink, a shower or a bath. -
Page 4: Installation
Installation Fig.1 Electric connection Fig.2 Water connection. Installation and initial start-up of the appliance should be car- ried out by a professional. Recommendations Fig.3 Case removing [8] - case if there is a non-return valve installed on a supply pipe, there is also an [15] - fixing screw obligation to install a safety valve between a heater and a non-return [16] - catches... - Page 5 Fig.4 Water connection 2. Bring to the place where the heater is to be situated, three- [17] - water inlet - cold water phase installation, in accordance [18] - water outlet - hot water [19] - flow regulating valve with proper standards. [U] - gasket 3.
- Page 6 1. Cut off electric supply. Venting 2. Turn the hot water tap on for the period of venting the installation (about 15-30 seconds). 3. Switch power supply on. The recommended maintenance needs to be done each time after a decay of water. If you do not vent the water installation, the heater can be damaged.
-
Page 7: Maintenance
Water heater KDH Luxus Operating This heater switches on automatically right after reaching appropriate rate of flow. When the rate of flow rises the second step switches on. A user may set the heater on work at lower temperature range by turning the knob on Fig.8 KDH work indicators the case in position I (fig.8, then it works according to characteristics I - 2/3... - Page 8 This heater has two safety de- Construction vices that protect this appliance from damage or failure: safety temperature limiter WT3, that goes off (shuts off power supply) when the temperature in Any interference inside the the heating compartment [1] goes safety temperature limiter may over 100 C.
- Page 9 Fig.11 Electric installation E1 - heating box [1] BV - differential pressure switch Q4 - power limiter F1 - WT3 safety temperature lim- iter [3] XG - heating box terminal Fig.12 Example electric con- nections with a priority switch K1 - priority switch K2 - contactor F1, F2 - fuses of the appliances Example preferential switches: ABB STOTZ:...
-
Page 10: Set Contents
Water heater KDH Luxus 1 piece Set contents Gaskets 2 pieces Fixing hooks 2 sets Templet 1 piece Installation and operating instruction 1 piece...
