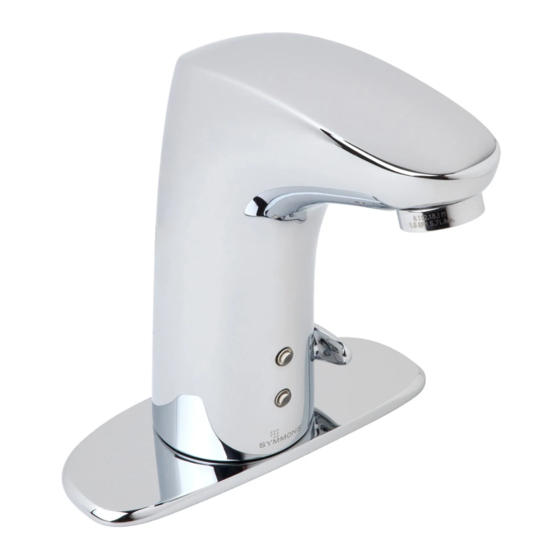

Lavatory Faucet
Battery Powered, Sensor-Activated
Installation, Operation & Service Brief
Model Numbers
S-6080.......Sensor
Faucet
Faucet Part # SF-244
S-6080-G...Sensor
Faucet with
grid strainer drain assembly

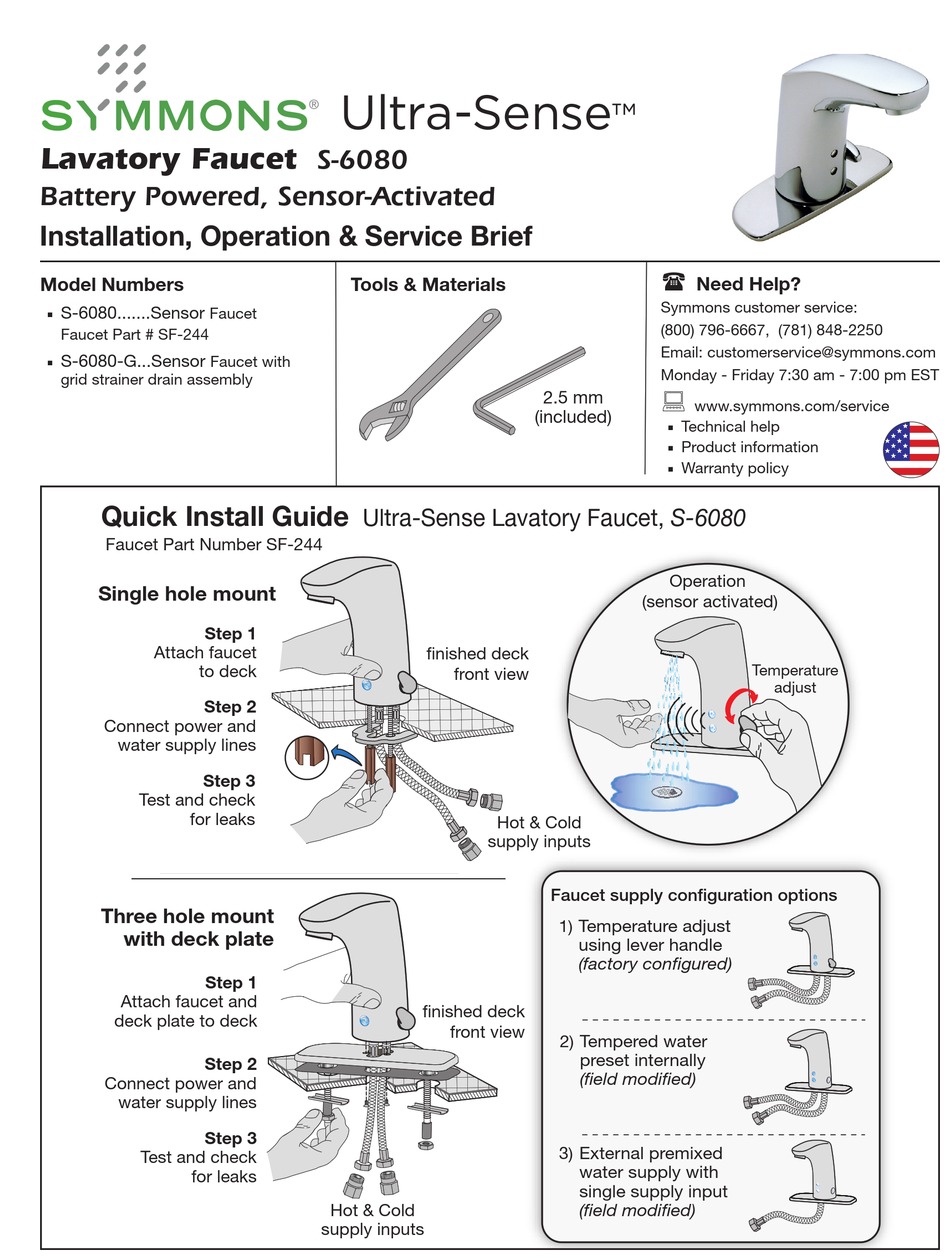

Quick Install Guide
Faucet Part Number SF-244
Single hole mount
Step 1
Attach faucet
to deck
Step 2
Connect power and
water supply lines
Step 3
Test and check
for leaks
Three hole mount
with deck plate
Step 1
Attach faucet and
deck plate to deck
Step 2
Connect power and
water supply lines
Step 3
Test and check
for leaks
Ultra-Sense
S-6080
Tools & Materials
Ultra-Sense Lavatory Faucet, S-6080
nished deck
front view
supply inputs
nished deck
front view
Hot & Cold
supply inputs
™
Symmons customer service:
(800) 796-6667, (781) 848-2250
Email: customerservice@symmons.com
Monday - Friday 7:30 am - 7:00 pm EST
2.5 mm
(included)
Operation
(sensor activated)
Hot & Cold
Faucet supply configuration options
1) Temperature adjust
using lever handle
(factory configured)
2) Tempered water
preset internally
(field modified)
3) External premixed
water supply with
single supply input
(field modified)
Need Help?
www.symmons.com/service
Technical help
Product information
Warranty policy
Temperature
adjust
