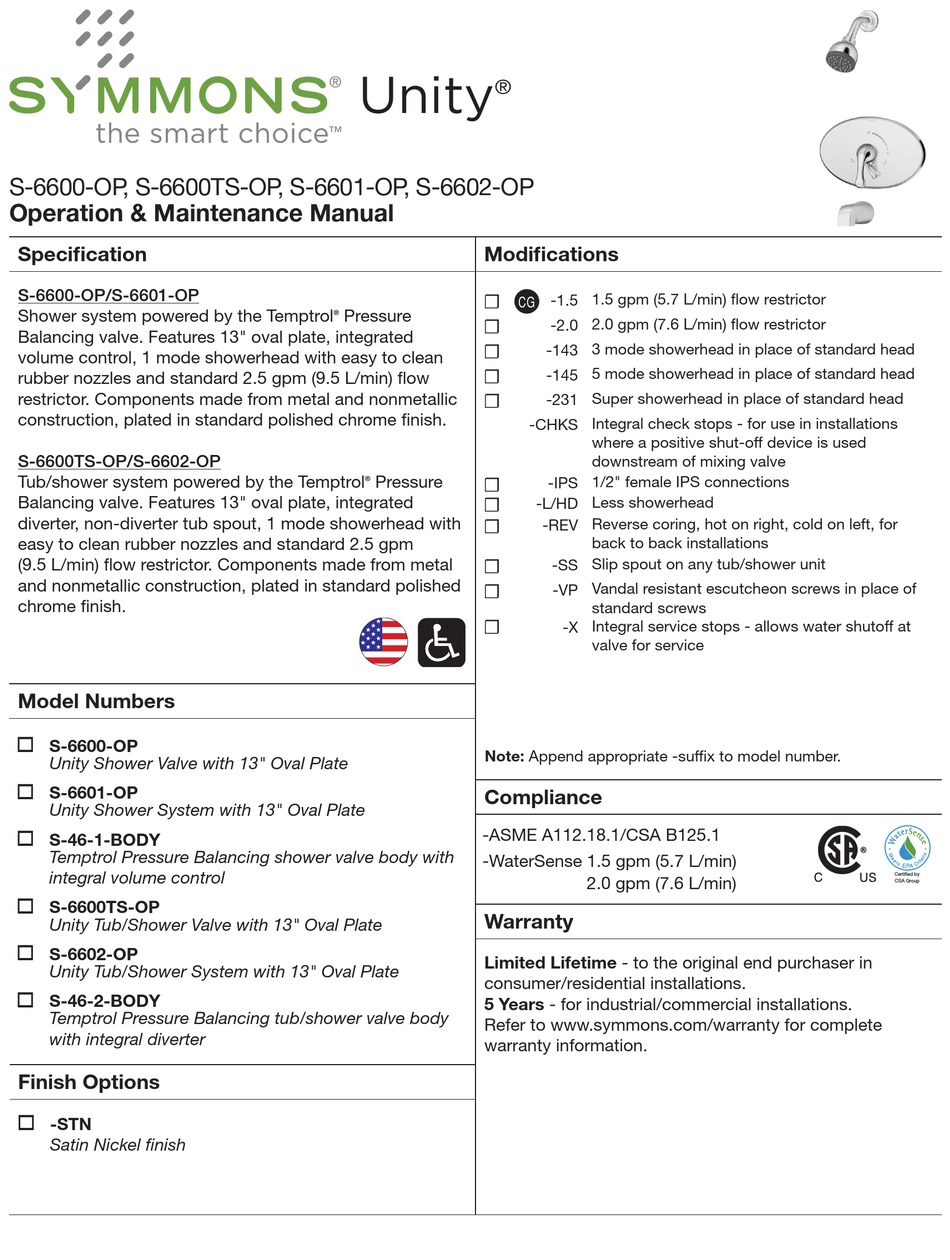

Symmons Unity S-6600-OP Operation & Maintenance Manual

S-6600-OP, S-6600TS-OP, S-6601-OP, S-6602-OP
Operation & Maintenance Manual
Specification
S-6600-OP/S-6601-OP
Shower system powered by the Temptrol
Balancing valve. Features 13" oval plate, integrated
volume control, 1 mode showerhead with easy to clean
rubber nozzles and standard 2.5 gpm (9.5 L/min) flow
restrictor. Components made from metal and nonmetallic
construction, plated in standard polished chrome finish.
S-6600TS-OP/S-6602-OP
Tub/shower system powered by the Temptrol
Balancing valve. Features 13" oval plate, integrated
diverter, non-diverter tub spout, 1 mode showerhead with
easy to clean rubber nozzles and standard 2.5 gpm
(9.5 L/min) flow restrictor. Components made from metal
and nonmetallic construction, plated in standard polished
chrome finish.
Model Numbers

S-6600-OP
Unity Shower Valve with 13" Oval Plate

S-6601-OP
Unity Shower System with 13" Oval Plate

S-46-1-BODY
Temptrol Pressure Balancing shower valve body with
integral volume control

S-6600TS-OP
Unity Tub/Shower Valve with 13" Oval Plate

S-6602-OP
Unity Tub/Shower System with 13" Oval Plate

S-46-2-BODY
Temptrol Pressure Balancing tub/shower valve body
with integral diverter
Finish Options

-STN
Satin Nickel finish
Unity
®
Modifications
☐
Pressure
®
☐
☐
☐
☐
Pressure
☐
®
☐
☐
☐
☐
☐
Note: Append appropriate -suffix to model number.
Compliance
-ASME A112.18.1/CSA B125.1
-WaterSense 1.5 gpm (5.7 L/min)
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
CG -1.5 1.5 gpm (5.7 L/min) flow restrictor
-2.0 2.0 gpm (7.6 L/min) flow restrictor
-143 3 mode showerhead in place of standard head
-145 5 mode showerhead in place of standard head
-231 Super showerhead in place of standard head
-CHKS Integral check stops - for use in installations
where a positive shut-off device is used
downstream of mixing valve
-IPS 1/2" female IPS connections
-L/HD Less showerhead
-REV Reverse coring, hot on right, cold on left, for
back to back installations
-SS Slip spout on any tub/shower unit
-VP Vandal resistant escutcheon screws in place of
standard screws
-X Integral service stops - allows water shutoff at
valve for service
2.0 gpm (7.6 L/min)
Certi ed by
CSA Group
