STI STOPPER SS-2000 Series Installation

Safety Technology International, Inc.
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800-888-4784 • E-mail: info@sti-usa.com
Web: www.sti-usa.com
EXISTING STANDARD
SINGLE GANGBOX
102722 SPACER RED, GREEN,
YELLOW, WHITE AND BLUE.
STI RECOMMENDS THE USE OF THIS
SPACER FOR SWITCH CLEARANCE
ON STANDARD SINGLE GANG BOXES.
ASSIGNED A 5VA FLAMMABILITY RATING.
SEE NOTE IN PRODUCT DIMENSION VIEW.
10274 OCTAGON SHELL
RED, GREEN, YELLOW, WHITE AND BLUE
*
10105 MOMENTARY BUTTON (#4)
*SS-2**4 and LT1-UL NOTES: For access control installations, power for the LT-1UL Timer must be supplied by a power
source listed to UL294. When used for access control, this device shall be used as part of an access controlled egress door
system. It is up to the local AHJ to allow use of this device in place of an automatic sensor. For higher security installations,
lower time limits should be used. For SS-2**4 and LT1-UL the enclosed timer is to be used and installed per the enclosed
LT-1UL installation sheet. *SS-2**4 and LT1-UL maximum rating 30 VDC 3A.
All specifications and information shown were current as of publication, and are subject to change without notice.
HOUSING INDEXING SLOTS
BACKPLATE ASSEMBLY
(SEE REVERSE SIDE)
10271 STATION HOUSING
RED, GREEN, YELLOW, WHITE AND BLUE
10100 PUSH/TURN RESET BUTTON (#1)
10104 KEY BUTTON (#3)
KEY REQUIRED TO ACTIVATE - IN
ACTIVATE MODE KEY CAN BE REMOVED
KEYS
(2) PROVIDED

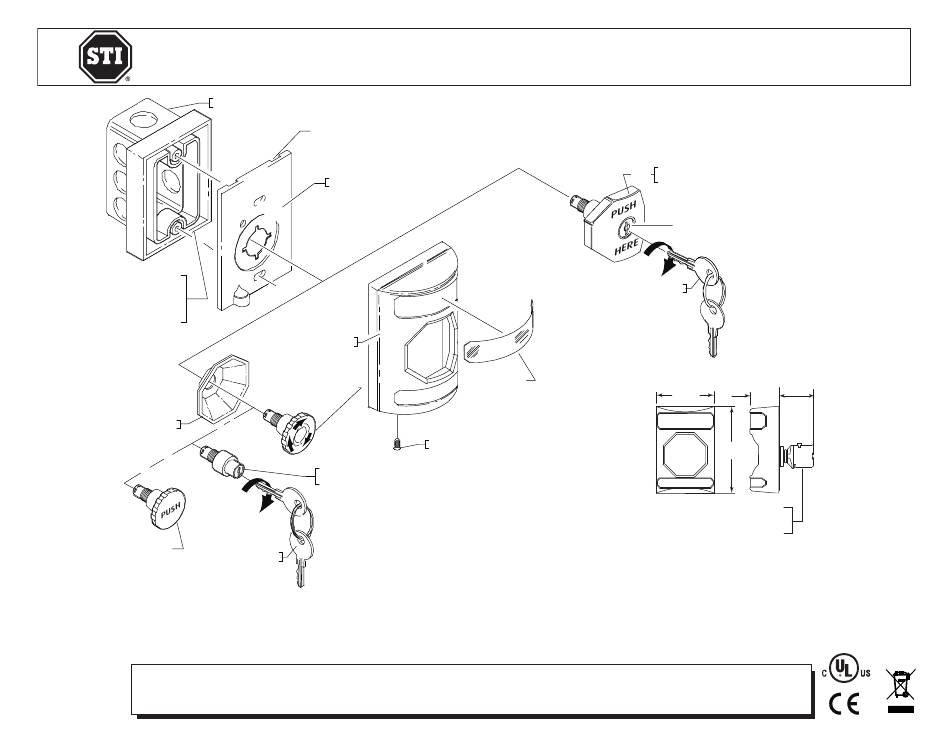

INSTALLATION OF SS-2000 SERIES STOPPER
Safety Technology International (Europe) Ltd.
Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999
Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)
E-mail: info@sti-europe.com • Web: www.sti-europe.com
STATION LABEL
19001 SCREW
(1) PROVIDED
NOTE: TO PROVIDE ADEQUATE CLEARANCE FOR INSTALLATION,
*
Electronic warranty form at www.sti-usa.com/wc14
® STATION
OCTAGON KEY RESET BUTTON (#0)
02050 RED, GREEN, YELLOW, WHITE
AND BLUE
10102 KEY RESET SWITCH
KEYS
(2) PROVIDED
3.25 in.
1.62 in.
(82mm)
(41mm)
2.25 in.
(57mm)
4.87 in.
(124mm)
MAY REQUIRE: SUB-102722 SPACER, OR RACO #660
W/1/2" K.O. AND RACO #653 EXTENSION RING.
ALSO RACO #696 MASONRY BOX.

PRODUCT DIMENSIONS

P
1027IS MAY2011
