Pick-Up Sensor With Hand Switch - SubSurface Instruments LD-18 Operation Manual

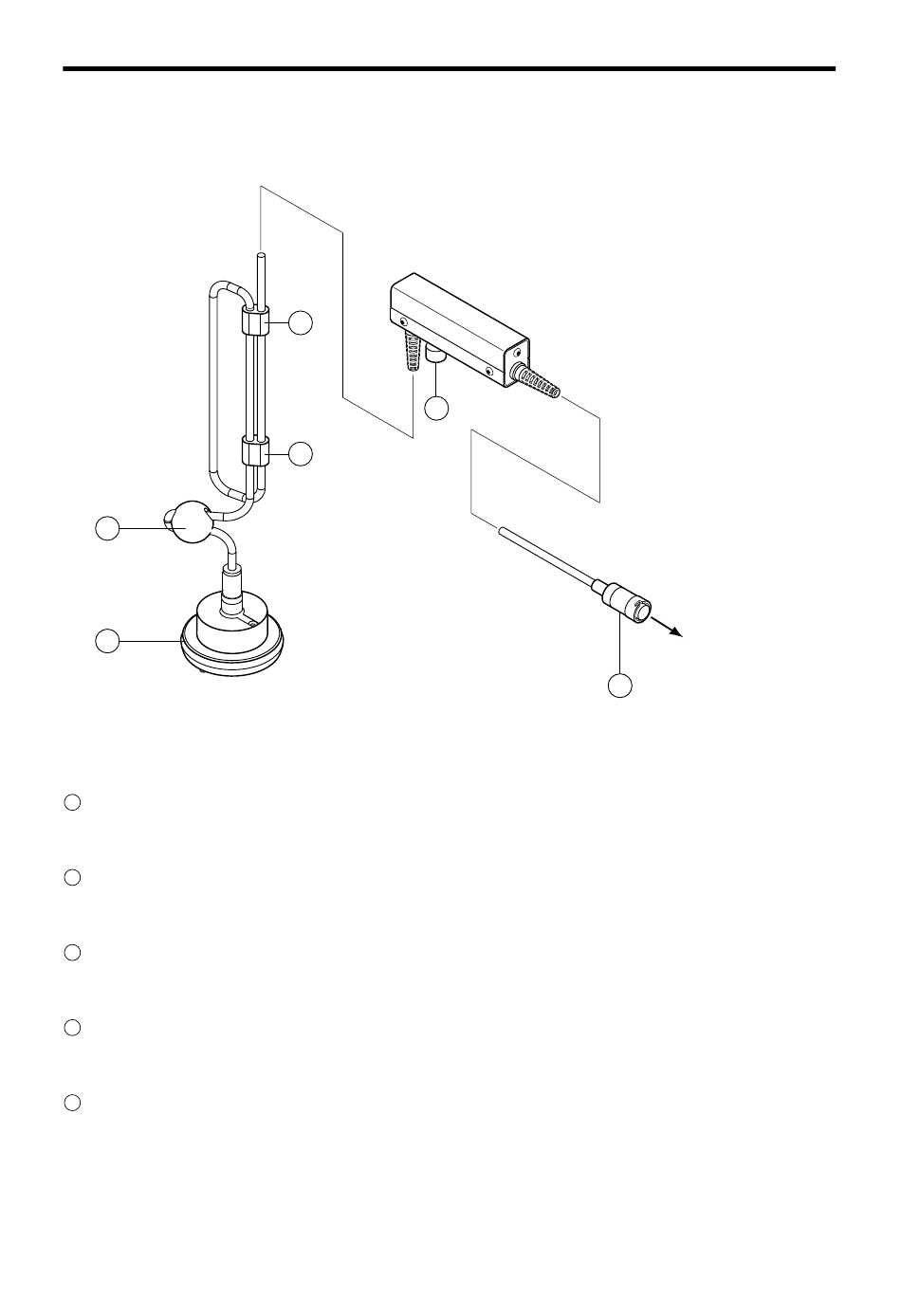

2-4 Pick-up sensor with hand switch

20
21
Rubber ball for reducing the noises
20
Reduces noises such as wind noise and cable friction noise.
Pick-up sensor
21
The sensor picks up the water leak sound.
22 Cable length adjuster
Use this parts for adjusting the cable length.
23 Hand switch
Sound is picked up when the button is pushed, and the sound is gone when the button is released.
24 Connector
Use this connector for connection with the detector main body.
22
23
22
11
2. Main unit
[Hardware]
Connect to the main body
24
