  • Page 1 SUBSURFACE INSTRUMENTS,INC. DIGITAL NOISE REDUCTION WATER LEAK DETECTOR LD-18 OPERATION MANUAL...
  • Page 2: Table Of Contents

    Table of Contents ........................ Foreword ....................Use of this detector ......................Precautions ....................Warranty period < Hardware Volume > ..................1. Product composition ......................2. Main unit ..............2-1 Operation and Display area ..................2-2 Connector area ................2-3 Main body battery unit ............
  • Page 3 < Software Volume > ....................... 1. Introduction .............. 1-1 What is “WLDwin software”? ..........1-2 Operating environment (recommended) ....................1-3 Before use ..........2. Installation and start-up of WLDwin software ....................2-1 Installation ............... 2-2 Start-up of WLDwin software ..................... 3.
  • Page 4: Foreword

    Foreword Thank you very much for your recent selection of our water leak detector LD-18. This Operation Manual pertains to operation and handling of water leak detector LD-18. This manual mainly describes how to use this detector and how to use its software. Make sure to read this manual and become fully acquainted with operation and handling of this detector before its use.
  • Page 5: Use Of This Detector

    In addition, with noise eliminating function, it is possible to eliminate accidental noise such as vehicle passing sound and bowwow. This water leak detector LD-18 is capable of discriminating water leak sound to a level that is higher than that of conventional detector.
  • Page 6: Precautions

    Precautions Carefully read and fully understand safety precautions described below before use of the detector. Observe instructions and procedures described in the manual for operation and handling of the detector. Make sure to observe the precautions described in this manual and marked on the detector. <Symbols used>...
  • Page 7 Precautions CAUTION Positively fit the battery compartment cover. If its fitting is incomplete, it may drop off while the detector is used, permitting drop-off of batteries, and personal injury may result. Do not swing the main body or pick-up. Do not shelve this detector in a place of high temperature. (Failure may result.) Do not use this detector for any application other than water leak detection.
  • Page 8: Warranty Period

    Warranty period The warranty period of this detector is one year (12months) counted from the date of its purchase. The “Warranty certificate” assures our best service to the customer. Enter the customer’s name, address and date of purchase in the “Warranty certificate” and lay it up in lavender. Kindly give the “Warranty certificate (for file)”...
  • Page 10: Hardware Volume

    Hardware Volume...
  • Page 11: Product Composition

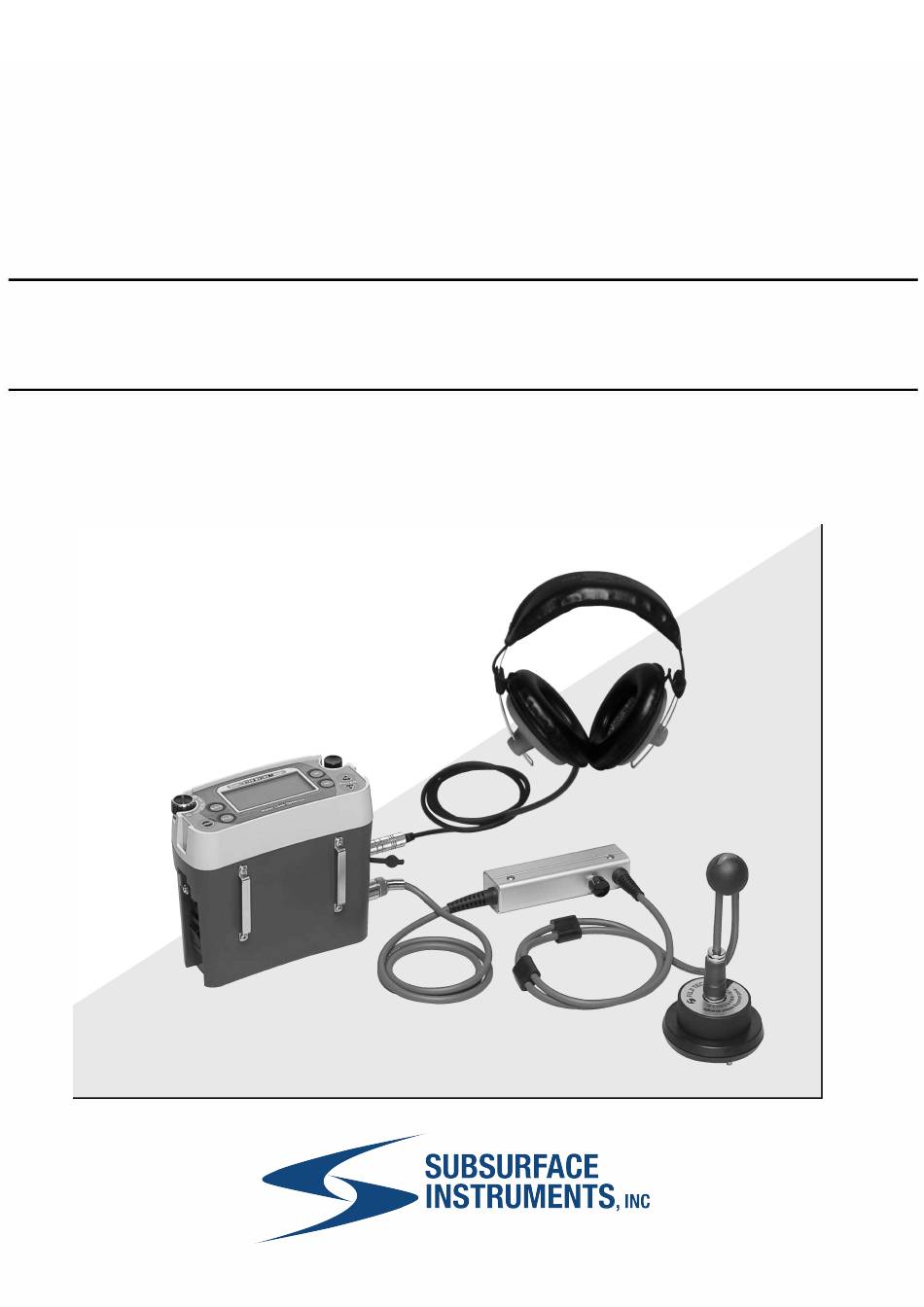

    1. Product composition [Hardware] Standard components Main unit : 1ea. Pick-up sensor with hand-switch set : Headphones (ST-3) : 1ea. 1ea. WLDwin software (CD-ROM) : 1ea. Shoulder strap : 1ea. Battery (U2) : 4ea. Aluminum carrying case : 1ea. USB connecting cable : 1ea. Operation manual : 1ea.
  • Page 12: Main Unit

    2. Main unit [Hardware] 2-1 Operation and Display area SAVE LIGHT FILE Water Leak Detector SENS. (sensitivity) : Sensitivity control dial Use this dial for sensitivity setup out of the range of 00 to 40. : Use this switch for saving minimum level value. SAVE Liquid crystal display : Displays a level bar, minimum level value, battery capacity, filter setup and others.
  • Page 13: Connector Area

    2. Main unit [Hardware] 2-2 Connector area ( ON ) ( OFF ) USB cable connector Waist belt fitting Use this connector for connection with a PC. Good for fitting the belt at the time of mounting of the main body to the lower back. Power switch of main unit Headphone jack Switch for power ON / OFF.
  • Page 14: Pick-Up Sensor With Hand Switch

    2. Main unit [Hardware] 2-4 Pick-up sensor with hand switch Connect to the main body Rubber ball for reducing the noises Reduces noises such as wind noise and cable friction noise. Pick-up sensor The sensor picks up the water leak sound. Cable length adjuster Use this parts for adjusting the cable length.
  • Page 15: Before Use Of The Detector

    3. Before use of the detector [Hardware] Make sure to make the following four checks before use of this detector, to permit this detector to fully exhibit its performance. 1. Check of components 2. Check of battery capacity (Replacement of batteries, if necessary) 3.
  • Page 16 3. Before use of the detector [Hardware] <Opening/closing of battery compartment cover and replacement of batteries> First of all, assure that the power for the main body is OFF. Lift the cover lock tab, and remove the battery compartment cover. Replace batteries in accordance with the indication.
  • Page 17: Check Of Date And Hour (Setup)

    3. Before use of the detector [Hardware] 3-3 Check of date and hour (setup) Setup of date and hour can be implemented using the main body and WLDwin software. 3-3-1 Case of setup using a PC *Adjust the date and hour of the PC in advance. Connect the main body with a PC using a USB connec- ting cable.
  • Page 18: Method For Setup

    4. Method for setup [Hardware] (1) Take the main body, pick-up sensor with hand switch and headphone out of the case. Correct deformation and kinking of the pick-up cable. (2) Put the shoulder strap through the main body. Or, put a belt through the waist belt fitting. Using the detector Using a shoulder strap as mounted on waist...
  • Page 19: Description Of Functions

    5. Description of functions [Hardware] 5-1 Screen operation flow Level display screen Power ON Start-up screen FILE FILE Graph display screen File list screen FILE Note : It returns to “File list screen” when switch is pushed in “Graph display screen”. 5-1-1 Start-up screen This screen appears when the power for the main body is ON, and then transition to the level display screen...
  • Page 20 5. Description of functions [Hardware] * Caution “Level bar display” and “Level value of level bar display” operate as interlocked with the SENS value. The minimum level value is of no relation to the SENS value. It automatically compensates the amplifier gain in the main body and displays it. 5-1-3 File list screen The file list screen appears when the switch is pressed...
  • Page 21: How To Save Minimum Level Value

    5. Description of functions [Hardware] 5-2 How to save minimum level value It is possible to save file No., minimum level value, date / hour, flag and others. The file list screen appears when the switch is pressed FILE in the level display screen. This screen permits check and deletion of the saved minimum level value.
  • Page 22 5. Description of functions [Hardware] Up to the largest file No. can be saved in the same manner. (Up to 250 data) “FULL” lights up and stays lit in the screen when the number of data reaches 250. When the switch is pressed, the save destination returns to file No.1, and overwrite to file No.1 occurs.
  • Page 23: Graph Screen

    5. Description of functions [Hardware] 5-3 Graph screen The graph screen displays saved data in a graph format. The data displayed in a lift format on the left-hand side of the screen is displayed in a graph format on the right-hand side of the screen.
  • Page 24: How To Delete Minimum Level Value

    5. Description of functions [Hardware] 5-4 How to delete minimum level value It is possible to delete the minimum level value saved in the main body, either using the main body or using WLDwin software. 5-4-1 How to delete using main body (1) Move the cursor to the file to be deleted in the file list screen.
  • Page 25: Method For Water Leak Detection

    6. Method for water leak detection [Hardware] When water leak occurs from a water pipe buried under the ground, the water jets out with force because of the water pressure in the pipe. Such water leak accompanies compound sound involving four elements,i.e., (1) water flow sound, (2) impact sound, (3) to-pipe friction sound and (4) pipe vibration sound.
  • Page 26 6. Method for water leak detection [Hardware] <Conditions that affect water leak detection> 1. Scale of water leak (size of water leak hole in the pipe) 2. Water pressure 3. Soil quality 4. Pipe material grade 5. Pavement type 6. Hydrous soil conditions 7.
  • Page 27 6. Method for water leak detection [Hardware] <NR system> This function permits reduction of transient undesired noise that lacks continuity. High effect is obtained when the set level is elevated. There is a certain time-lag (silent time) in the NR mode before sound is heard through the headphone since the sound hearing switch was pressed.
  • Page 28: Method For Use In Correspondence To Situation Of The Field

    7. Method for use in correspondence to situation of the field [Hardware] <Filter selection> (1) In a place where undesirable noise such as electric pole transformer sound, commercial frequency sound from automatic vending machines, passing sounds from pedestrians’ and automotive vehicles and barking dog is excessive, it is possible to more positively pin down the target sound when a combination of BPF+NF+NR processing is applied.
  • Page 29: Storage Of Detector

    8. Storage of detector [Hardware] Store this detector as instructed below if it is scheduled that this detector will not be used for a long time. (1) Assure that all the components including operation manual are complete. (2) Remove batteries. If batteries are kept in the battery compartment for a long time, damage to equipment may occur due to liquid leakage.
  • Page 30: Troubleshooting

    9. Troubleshooting [Hardware] Read instructions in this section when any malfunction arises to this detector. If the detector is still disabled after taking measures described below or if the trouble phenomenon is other than what are described below, please contact our nearest distributor. (1) If the power for the main body Check if batteries are located in the battery compartment.
  • Page 31: Description Of Terms

    10. Description of terms [Hardware] The terms used in this operation manual are described in this section. Notch filter Selection out of OFF, 50Hz and 60Hz can be made by the operation of the NF switch. The initial status is OFF. Types of filters are briefly described below.
  • Page 32 10. Description of terms [Hardware] Minimum level value This value relatively expresses the minimum value of the vibration level picked up with the sensor during sound hearing. (000 to 999) This value remains unchanged even if the SENS value is changed, if the input is constant. However, if the SENS value was changed, once release the sound hearing switch and then press it again.
  • Page 33: Equipment Specification

    11. Equipment specification [Hardware] 11-1 Specification for main unit Total sensitivity : 900V / G or higher (400Hz) : Alkali C-size (LR14) battery × 4 Power supply : AA-size batteries may also be used. (However, a conversion adaptor is required.) Working temperature range : -20 C to +55 C Minimum working voltage...
  • Page 34: Specification For Usb Connecting Cable

    11. Equipment specification [Hardware] 11-4 Specification for USB connecting cable Standard : USB1.1 Connector : A-B type Length : 1.5m...
  • Page 36: Software Volume

    Software Volume...
  • Page 37: Introduction

    1. Introduction [Software] 1-1 What is “WLDwin software”? This software loads measured data saved in a water leak detector (LD-18) to a PC and executes data edit, graph display and data save. 1-2 Operating environment (recommended) Software (OS) : Windows Vista, XP, 2000...
  • Page 38: Installation And Start-Up Of Wldwin Software

    2. Installation and start-up of WLDwin software [Software] 2-1 Installation 1. Set the WLDwin software CD-ROM in the CD-ROM drive. The installer starts up automatically. * Caution If the installer fails to start-up automatically, execute “setup.exe” contained on the CD-ROM. 2.
  • Page 39 2. Installation and start-up of WLDwin software [Software] 5. Installation preparation end screen. Installation begins when the [Install] button is clicked. 6. Installation execution screen. 7. Installation end screen. Installation has been completed. Terminate the installer by clicking the [End] button.
  • Page 40: Start-Up Of Wldwin Software

    2. Installation and start-up of WLDwin software [Software] 2-2 Start-up of WLDwin software 1. Start-up of application The application starts up as a result of the following operation; [Start] → [Program] → [FUJI TECOM] → [WLDwin] Or by the use of the [WLDwin] shortcut on the desktop. 2.
  • Page 41: Driver Installation

    [Software] 3-1 Installation The driver is automatically searched for and is installed when a detector (water leak detector LD-18) is connected a PC using a USB connecting cable. It is necessary to install “CP210x USB Composite Device” and “CP210x USB to UART Bridge Controller”...
  • Page 42 3. Driver installation [Software] 4. Execution of search and installation “CP210x USB Composite Device” is installed automa- tically. 5. Completion of installation Installation of “CP210x USB Composite Device” completes. Terminate the hardware search wizard by clicking the [Complete] button. 6. Installation of “CP210x USB to UART Bridge Cont- roller”...
  • Page 43 3. Driver installation [Software] 8. Execution of search and installation “CP210x USB to UART Bridge Controller” is searched and installed for automatically. 9. Completion of installation Installation of “CP210x USB to UART Bridge Cont- roller” completes. Terminate the hardware search wizard by clicking the [Complete] button.
  • Page 44: Check Of Communication With Detector

    [Start] → [Program] → [FUJI TECOM] → [WLDwin] Or by the use of the [WLDwin] shortcut on the desktop. 2. Turn ON the power for the detector (water leak detector LD-18), and connect the detector with a PC using a USB connecting cable.
  • Page 45: Installation: If The Hardware Search Wizard Fails To Start Automatically

    3-3 Installation: If the hardware search wizard fails to start automatically If the hardware search wizard fails to start automatically when the detector (water leak detector LD-18 in the state where the power is ON) is connected to a PC, make connection once again or manually install the driver.
  • Page 46: Description Of Functions Of Wldwin Software

    4. Description of functions of WLDwin software [Software] 4-1 Main screen (that appears at the time of start-up) (1) Main menu File New document Creation of a new form (graph window) Open Display of open up a file dialogue Overwrite save Overwrite save on file being edited Save as Display of save as dialogue...
  • Page 47 4. Description of functions of WLDwin software [Software] Detector edit Read of detector (LD-18) data Data read Data clear Clearing in a batch of detector (LD-18) saved data Date/hour set Setup of detector (LD-18) date/hour Edit Data read Display of data edit dialogue...
  • Page 48 4. Description of functions of WLDwin software [Software] Window Display of graph windows side by side Display side by side Display as Display of graph windows as overlapped Icon alignment Alignment of graph window icons Help Display of table of contents of help Table of contents Search Search by keyword...
  • Page 49: Data Read

    [Software] 4-2 Data read Saved data is read from the detector (water leak detector LD-18) when “Data read” is selected out of the main menu. Transfer in a batch of detector saved data is executed after confirmation of connection of the detector.
  • Page 50 4. Description of functions of WLDwin software [Hardware] 4-3 Data read Data display : The entire data The entire data in a graph format are displayed in a list format. Data edit : The data edit dialogue appears when “Data edit” is selected out of the main menu or when the list is double-clicked.
  • Page 51 4. Description of functions of WLDwin software [Software] Entry of comment Directly entry of a sentence is permitted when the comment column is selected. Display of detector model The name of the detector used for measurement of data displayed in the graph is displayed. Graph area A graph is displayed by a kinked line graph or a bar graph.
  • Page 52: Data Save

    4. Description of functions of WLDwin software [Software] 4-4 Data save Save edited data (extension .w18) in the PC. 4-5 Text data create Save edited data in the PC in a text format (extension .txt). Saved data can be edited with another application. * Caution The created text file cannot be re-edited with this WLDwin software.
  • Page 53: Print

    4. Description of functions of WLDwin software [Software] 4-9 Print (1) Print item setup Have the print item setup dialogue by “Print item setup” in the main menu. Printing is permitted with graph, comment, list item and / or required data item selected. (2) Print The data selected by the print item setup dialogue is printed when “Print”...
  • Page 54: Help

    4. Description of functions of WLDwin software [Software] [Save] : The save as dialogue appears. [Save in a batch] : The changed data only is automatically saved in a batch in the folder set in “4-8 Folder setup”. * Caution Saved as a new file instead of overwrite save.
  • Page 55: Wldwin Error Message

    5. WLDwin error message [Software] Message “Connect the detector!” Meaning Connected detector cannot be confirmed at the time of execution of detector edit menu. Cause and Check connection between PC and detector, and check if the power for the detector is ON. remedy * See Software Volume “3-2 Check of communication with detector”...
  • Page 56 WLDwin error message [Software] Message “Y-axis set value is incorrect!” Meaning Error in setup of Y-axis (vertical axis) during graph setup Cause and Check the maximum value and minimum value of Y-axis (vertical axis) remedy * See Software Volume “4-3 Graph setup”...
  • Page 57: Parts List And Illustrations

    Parts list and illustrations (1) Main unit...
  • Page 58 Parts list and illustrations < >=Order Code Sensitivity knob <234121> Hexagon nut (M14) <228402> Company name label <234117> Harness assembly of sensor input <234135> Color button (black) <incl. No.14> Holding plate for P.U. <228320> Membrane switch <234119> Waist belt fittings <007113> Sensitivity switch assembly <234138>...
  • Page 59: Hand-Switch Set With Pick-Up Sensor

    Parts list and illustrations (2) Hand-switch set with pick-up sensor < >=Order Code Hexagon lock nut (M6) Rubber bushing <007133> Disc plate cover <007138> Hand-set case x 2 (top & botom) <007128> Disc plate <234306> Hand-switch assembly with PCB <234204> P.U.
  • Page 60 SubSurface Instruments, Inc. 1230 Flightway Dr. De Pere. WI 54115 United States Tel.: (920) 347-1788 • Fax: (920) 347-1791 email: info@ssilocators.com www.ssilocators.com...
