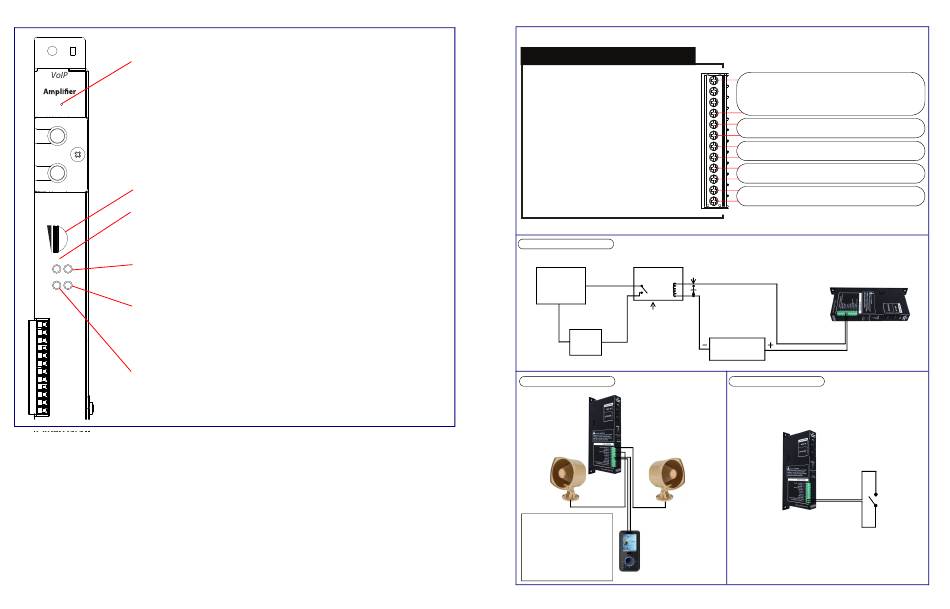

CyberData 011403 Installation Quick Reference page 2

Features
RTFM Switch
To broadcast a device's current IP address, press and hold the
Loudspeaker
RTFM switch for a couple of seconds and then release it.
To restore the factory defaults, complete the following steps:
RTFM
1. Press and hold the RTFM switch until you hear the device
announce the words, "restoring defaults" and "rebooting".
2. Release the RTFM switch. The device will be restored to the
factory default settings.
Speaker Volume
Speed (SPD) LED (AMBER)
Volume
The Speed LED illuminates
a 10MB link when the network link to the device is established.
SPD Link/Act.
Link/Activity (Link/Act.) LED (GREEN)
The Link/Act. LED blinks to indicate network traffic.
PWR Status
Status LED (GREEN)
After supplying power to the device, a steady
LED confirms that the device is operational.
Power (PWR) LED (GREEN/BLUE)
The PWR LED is a
BLUE during high power mode (
*See the Operations Guide for more information about the features in this section.
© 2016, CyberData Corporation, ALL RIGHTS RESERVED
AMBER for a 100Mb link or is off for
GREEN Status
802.3af) and
GREEN in low power mode (
802.3at) .
931271C
Connection Options
Door Sense/Button Common (GND) - 2
Door Sense/Button Contact (+) - 1
Relay Connection
External device
such as an
electric door strike
or an LED strobe
light
Line-In Connection
When line-in is enabled on
the device, the audio
received from the line-in
connection will be played
to the speaker(s) and line-
out connection as the
lowest priority audio.
Quick Reference Quick Reference
CLASS II WIRING
Mono(+)/Left Spkr (+) - 12
Left Spkr (-) - 11
*See the Operations Guide for diagrams and
Right Spkr (+) - 10
information about the connections in this section.
Mono(-)/Right Spkr (-) - 9
Line-Out (+) - 8
Line-Out Connection (10K Ohm)
Line-Out (-) - 7
Line-In (-) - 6
Line-In (+) - 5
Relay COM - 4
Relay NO/NC - 3
High PIV Ultrafast
Solid State or
Switching Diode
Mechanical
Relay
OUT IN
Output Contacts
AC or DC-rated
depending upon
controlled device
AC or DC
requirements
Power
DC Power Supply
Source
(Max. 30 VDC @ 1A)
Sensor Connection
Paging Amplifier
Music Source
931271C
Speaker Connections*
Line-In Connection
Relay Connection
Sensor Connection
Paging Amplifier
Paging Amplifier
© 2016, CyberData Corporation, ALL RIGHTS RESERVED
