Summary of Contents for unGer HydroPower RO S
- Page 1 RO S READ THE OPERATING INSTRUCTIONS BEFORE SWITCHING (RO20C) ON THE SYSTEM! KEEP IT IN THE IMMEDIATE VICINITY OF THE MACHINE AT ALL TIMES! Original operating instructions OPERATING INSTRUCTIONS V1.0 02/21...
-
Page 2: Table Of Contents
1.7.2 Training of staff ................... 9 Storing the operating instructions ..............9 Contact addresses ....................9 About HydroPower RO S .................... 10 Using the HydroPower RO S ................10 2.1.1 Intended use ....................10 2.1.2 Foreseeable misuse ..................10 Technical specifications ..................10 2.2.1... - Page 3 Commissioning ....................18 Operation of the HydroPower RO S ................20 General information ..................... 20 Cleaning surfaces with the HydroPower RO S ............ 21 Interruption of work ..................... 21 Switching off the HydroPower RO S ..............21 Malfunctions ....................... 22 Procedure for accidents ..................
-
Page 4: Introduction
This manual allows you to use the HydroPower RO Safely and efficiently. The operating instructions are part of the HydroPower RO S and must be kept accessible to the personnel in the immediate vicinity of the HydroPower RO S at all times. -
Page 5: Explanation Of Signs
HydroPower® RO S Explanation of signs Explanation of signs 1.4.1 Instructions for use Instructions for use are shown as follows: To perform an action, proceed as follows: 1. Do this. 2. Do that. This is the intermediate result. 3. Do that. You have completed the action. -
Page 6: Hazard Classes
HydroPower® RO S Explanation of signs 1.4.3 Hazard classes Safety instructions are shown in this manual with standardized illustrations and symbols. Depending on the probability of the occurrence and severity of the consquence, the following hazard classes are used: DANGER Indicates a hazardous situation that can lead to serious injury or death. -
Page 7: Warning Signs
HydroPower® RO S Explanation of signs 1.4.4 Warning signs Warning of a hazard. Warning of electrical voltage. Warning of overpressure in containers. Warning of hot surfaces. Warning of suspended loads. Warning of injury to the limbs. 1.4.5 Mandatory signs Application tips and other useful information. Use protective gloves. -
Page 8: Nameplate
Nameplate Obligation of the operator The HydroPower RO S is used in the commercial sector. The operator must adhere to the statutory obligations to work safety. The operator is obliged to have only persons working on the HydroPower RO S that: •... -
Page 9: Training Of Staff
Storing the operating instructions This instruction manual must be kept in the immediate vicinity of the HydroPower RO S and must be available to the entire staff at all times. The operator must inform the personnel about the location of these operating instructions. -
Page 10: About Hydropower Ro S
Foreseeable misuse 2.1.2 The use of the HydroPower RO S in any way other than described in the chapter „2.1.1 Intended use“ is considered to be non-compliant and thus unlawful. This applies in particular to the use of the HydroPower RO S for bacteria removal. -
Page 11: Pressure Ratings
7mm (inside) Water temperature °C Water temperature °C 2.4 Scope of delivery The following is included in each delivery: • HydroPower RO S • Suction pipe for membrane care, • Filter key • Instruction manual • Concentrate hose • Test report... -
Page 12: Safety
• if the HydroPower RO S is in a technically sound condition. This includes: • The safety stickers attached to the HydroPower RO S must always be complete and in good readable condition. Renew damaged or unreadable signs. • Carry out cleaning and maintenance work on the HydroPower RO S only if it is disconnected from electricity. -
Page 13: Mechanical Hazards
Do not place objects in the openings of the HydroPower RO S. Place the HydroPower RO S on an even surface only. Ensure sufficient stability and secure the HydroPower RO S against tipping over or rolling away. In the case of faults and emergencies, immediately turn off the unit by turning the lower switch to OFF. -
Page 14: Hazards From Materials And Substances
Materials used in the product This product contains lead and diethylhexyl phthalate (SVHC > 0.1 %). (REACH Art. 33) The HydroPower RO S is registered in the SCIP database (database for substances of concern in products) For further questions, please contact compliance@ungerglobal.com. -
Page 15: Preparing For Use

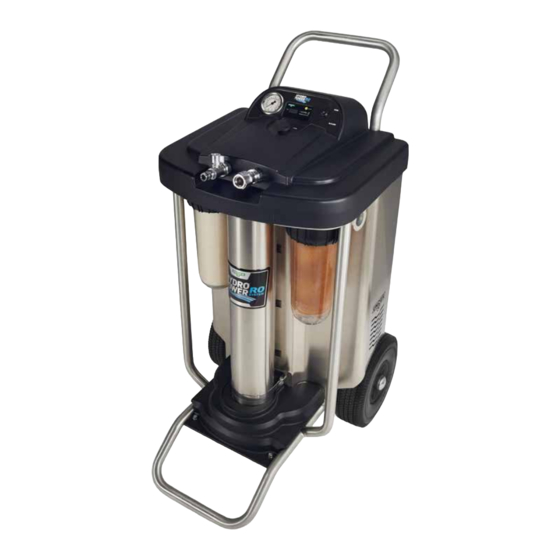

HydroPower® RO S System overview Preparing for use Construction of the HydroPower RO S Manometer 2 2 3 3 TDS-Meter Switch WORK/RO FLUSH Switch TAP BOOST / OFF / PURE Water inlet Water outlet Water meter Carbon/sediment combi pre-filter Membrane... -
Page 16: Transport And Storage
Complaints due to transport damage cannot be accepted without written confirmation by the dealer or with unreserved acceptance! In the case of transport of the HydroPower RO S for use at height, e.g. on a house roof: DANGER Severe injuries and property damage due to the HydroPower RO S falling are possible. -
Page 17: Storage
The membrane filter (3) removes up to 98% of the minerals from the water in the HydroPower RO S. The resin filter (4) sits after the membrane, which removes the last 2% of the minerals from the water in the HydroPower RO S. -
Page 18: Commissioning
ATTENTION: For new or conserved units, the resin filter is removed from the unit and must be inserted! See next page. To start the HydroPower RO S, proceed as follows: 1. Connect the two hoses. Do not forget the concentrate hose at the back of the unit. - Page 19 Before using the resin filter, the membrane maintenance agent must be completely rinsed out. 1. Open the water line and start the HydroPower RO S by setting the upper switch to „RO FLUSH“ and the lower switch to „PURE“. Rinse out the membrane care agent for about 15 minutes.
-
Page 20: Operation Of The Hydropower Ro S
Operation Operation of the HydroPower RO General information Working with the HydroPower RO S is only permitted if the operating instructions have been read and understood. DANGER Severe injuries and property damage due to the HydroPower RO S falling are possible. -
Page 21: Cleaning Surfaces With The Hydropower Ro S
5.3 Interruption of work If you need to interrupt your work with the HydroPower RO S, you can switch off the device by setting the lower switch to OFF. You can also control the unit by the water pressure: •... -
Page 22: Switching Off The Hydropower Ro S
The HydroPower RO S is switched off and can be transported. Malfunctions Procedure for accidents Turn the lower switch of the HydroPower RO S to OFF to turn off the system: • In case of danger of injury, • Risk of damage to the HydroPower RO S. - Page 23 HydroPower® RO S Malfunctions Overheating Always ensure that the HydroPower RO S is well ventilated and is not too close to objects or walls which could cause air circulation prevent. 1. If the pump motor overheats, the HydroPower RO S automatically stops.
-
Page 24: Maintenance And Servicing
DANGER Electric shock possible through live parts. Maintenance on the electrical components of the system should only be carried out by employees of Unger Germany GmbH or their authorized specialist dealers / technicians. CAUTION Burns due to hot surfaces possible. -
Page 25: Maintenance And Maintenance Plan
If the unit will not be in use for more than 7 days, the membrane must be protected according to the storage instructions, see chapter „7.2.4 Membrane protection.“ If the membrane is not regularly flushed or protected with the UNGER membrane care agent, there is a risk of blockage and thus a strong performance limitation or damage. -
Page 26: Membrane Protection
Wear protective gloves and goggles. The membrane achieves its optimal life with regular water flow or flushing. If the HydroPower RO S is not in use for an extended period of time (longer than 7 days), the membrane must be protected against blockage. -
Page 27: Repair And Replacement Of Parts
Changing all 3 filter cartridges is quick and easy: Changing the combi-pre filter 1. Switch off the HydroPower RO S and disconnect the power supply. 2. Unscrew the left filter cartridge with the filter key and dump the water. 3. Remove and replace the filter insert. The direction doesn‘t matter. - Page 28 HydroPower® RO S Replacing filter cartridges Changinge the RO Membrane Place the unit on its back Unscrew the two screws on front and remove the bottom black plastic cover. Remove the remaining two screws on the bottom plate and remove the plate.
-
Page 29: Switching Off The Device
DANGER Electric shock and burns due to live parts possible. Maintenance on the electrical components of the system may only be carried out by employees of Unger Germany GmbH or their authorized specialist dealers / technicians. CAUTION Burns due to hot surfaces possible. -
Page 30: Recycling
8.3 Disposal of waste If the HydroPower RO S has reached the end of its life cycle, it must be disposed safely and professionally, particularly with regard to parts or substances harmful to the environment. - Page 31 HydroPower® RO S Notes...
-
Page 32: Proofreading Documents
HydroPower® RO S EC-Declaration of Conformity The HydroPower RO S (RO20C) is compliant with the provisions of the Machinery Directive 2006/42 / EC and the Directive on Electromagnetic Compatibility 2014/30 / EU. The protection objectives of Directive 2014/35 / EU on electrical equipment have been upheld.
