Model
EID20-1200-4Q
EID25-1200
EID32-900
EID44-1200
EID65-900
EID75-800
EID120-660
EID170-670
EID270-410
Download the latest version of this document at
http://www.desouttertools.com/info/6159929670_EN
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference

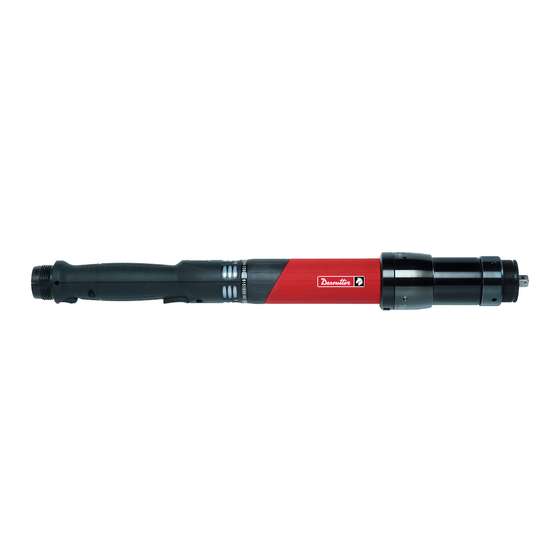

In-line Electric Nutrunner
Product Instructions
Part number
6151659920
6151656140
6151656150
6151656160
6151656170
6151656180
6151656770
6151656780
6151656790
WARNING
Printed Matter No. 6159929670_EN
Issue No.
01
Date
10/2020
Page
1 / 20
Advertisement
Table of Contents
Related Manuals for Desoutter EID20-1200-4Q
Summary of Contents for Desoutter EID20-1200-4Q
- Page 1 Printed Matter No. 6159929670_EN Issue No. Date 10/2020 Page 1 / 20 In-line Electric Nutrunner Product Instructions Model Part number EID20-1200-4Q 6151659920 EID25-1200 6151656140 EID32-900 6151656150 EID44-1200 6151656160 EID65-900 6151656170 EID75-800 6151656180 EID120-660 6151656770 EID170-670 6151656780 EID270-410 6151656790 Download the latest version of this document at http://www.desouttertools.com/info/6159929670_EN...
-
Page 2: Table Of Contents
Table of Contents Product Information .......................... 3 General Information......................... 3 Safety Signal Words...................... 3 Warranty.......................... 3 Website .......................... 3 Information about spare parts .................... 3 Dimensions (mm) ......................... 4 CAD files .......................... 4 Overview ............................ 5 General overview ......................... 5 Product description ...................... 5 Technical data........................ 5 Accessories.......................... 7 Service Overview .......................... 8 Maintenance program ...................... 8 Spare parts........................... 8 Installation.............................. 9 Installation Instructions........................ 9... -
Page 3: Product Information
• The product warranty relies on the correct use, maintenance, and repair of the tool and its component parts. • Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Desoutter or their Certified Service Partners during the warranty period is not covered by the warranty. -
Page 4: Dimensions (Mm)
Product Information Dimensions (mm) ØA ØB ØC EID20-1200 4Q EID25-1200 EID32-900 EID44-1200 EID65-900 EID75-800 ØA ØB ØD ØM EID120-660 EID170-670 EID270-410 CAD files For information about the dimensions of a product, see the Dimensional drawings archive: https://www.desouttertools.com/resource-centre 4 / 20 10/2020... -
Page 5: Overview
Product Information Overview General overview EID are electric in-line nutrunners powered by one of the following Desoutter controllers. - CVI3 Essential - CVI3 Function - CVI3 Vision - TWINCVI3 They are hand-held by the operator. They also can be used as fixtured tools and installed on a frame in the workstation by using the optional mounting plates. - Page 6 Product Information Power consumption Model EID20-1200 4Q EID25-1200 EID32-900 EID44-1200 EID65-900 EID75-800 EID120-660 EID170-670 EID270-410 Output drive Model Type EID20-1200 4Q Hex. 1/4 F EID25-1200 Sq. 3/8" EID32-900 Sq. 3/8" EID44-1200 Sq. 3/8" EID65-900 Sq. 1/2" EID75-800 Sq. 1/2" EID120-660 Sq.
-
Page 7: Accessories
Product Information Rated speed (rpm) Model EID20-1200 4Q 1200 EID25-1200 1200 EID32-900 EID44-1200 1200 EID65-900 EID75-800 EID120-660 EID170-670 EID270-410 Weight Model EID20-1200 4Q 1.45 3.20 EID25-1200 1.45 3.20 EID32-900 1.45 3.20 EID44-1200 2.00 4.41 EID65-900 2.00 4.41 EID75-800 2.00 4.41 EID120-660 3.45 7.60... -
Page 8: Service Overview
Product Information Length (m) Length (ft) Part number 6159175890 Optional accessories Barcode reader and headlight 6158121380 Headlight 6158121390 Trigger locker 6153978420 Suspension bail (up to EAD105 / EID75) 6153974130 Suspension bail (for EAD160-200-280-660 / EID120) 6155710720 Protective cover for EID20/25/32 6155732110 Protective cover for EID44/65/75 6155732120... -
Page 9: Installation
Installation Installation Installation Instructions How to clamp the tool Whether the tool is handled by an operator with a torque arm or embedded in a robot with high dynamics, it is advised to select two clamping locations instead of one. Before selecting where to clamp the tool, take into account the following instructions. - Page 10 Installation Ensure that the mounting plate thickness is consistent with that indicated in the chapter Dimensions. Use only screws with quality class 12.9. WARNING Risk Of Electric Shock The mounting plate where tools are clamped must be earthed. Be sure that the motor is free of motion to enable torque measurement. Warning: in case of installation in a wheelnut tightening machine, an additional mounting plate must be mounted next to the output drive.
-
Page 11: Connecting The Tool To The Controller
Installation Do not set up the tool cable as shown below. Connecting the tool to the controller Connect the cable to the tool. Plug the cable with help of TOP indication. Tighten the nut. No need to tighten it too much. The locking system will prevent any loosening. -
Page 12: Mounting The Front Trigger
Installation Mounting the front trigger This additional trigger is a safety device for the operator when the tool is equipped for example with an open-ended Crowfoot head. The operator has to press both triggers to start the tool. The management of triggers can be set up with CVI CONFIG. How to install optional accessories Refer to the user manual dedicated to the accessory available at https://www.desouttertools.com/resource-centre. -
Page 13: Operation
How to set up the tool as a fixtured tool Desoutter should not be held responsible for any injury, accident or damage which may be the consequence of an in- correct installation, modification or start-up, or a use out of the intended use of Desoutter products, by the customer or a third party. -
Page 14: Tightening Status And Led Reporting
Operation Tightening status and LED reporting Reporting LEDs Green Yellow How to read the tightening report LED color Description Action to do Green Accept report None Yellow Incomplete rundown Tighten again. Yellow and red (orange) Reject report Loosen and tighten again. Above max. -
Page 15: Service
This USB stick is provided by your CVIKEY manager. • CVIMONITOR software Contact your Desoutter representative to get more information and support. Checking before putting back into service Prior to putting the equipment back into service, check that its main settings have not been modified and that the safety devices work properly. -
Page 16: Recommissionning
Service Recommissionning Prior to putting the different parts of the system back into service, check that the main settings have been correctly set up and that the safety devices work properly. 16 / 20 10/2020... - Page 20 Original instructions Founded in 1914 and headquartered in France, Desoutter Industrial Tools is a global leader in electric and pneumatic assembly tools serving a wide range of assembly and manufacturing operations, including Aerospace, Automotive, Light and Heavy Vehicles, Off-Road, General Industry.
